Based on the ASR650x series of chips, we have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels… This is the CubeCell series.

Cube — Means modular design and easy assembly;

Cell —  Is the product positioning, as a unit of the IoT series, working like a cell.

ASR650X-Arduino open source project: https://github.com/HelTecAutomation/ASR650x-Arduino

CubeCell series has three branches:
module001
Modul
  • Support AT commands;
  • Arduino-Compatible;
  • 1.27 x 11 stamp edge design;
  • Can be directly integrated into the application circuit, can work as a MCU master unit or LoRa transceiver.

Choose a CubeCell module

board001
Dev-Board
  • Arduino-Compatible;
  • Very friendly for developers, only need a micro USB connct to a computer, users can begin LoRa IoT project develop;
  • Full power management system, can connect with a solar panel directly;
  • Easy to verify communication solutions.

Choose a CubeCell Dev-Board

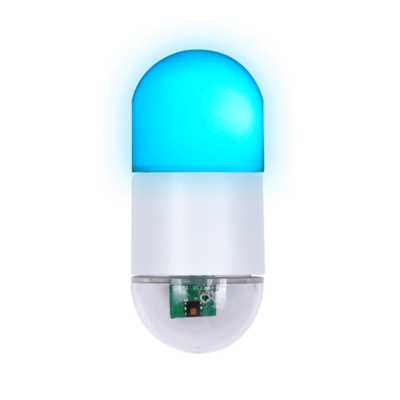

capsule_blue
Capsule Sensor
  • Arduino-Compatible;
  • Replaceable sensor design;
  • Available in a variety of sensor case;
  • Alreay highly integrated, with a complete enclosure and protection measures that can be deployed directly into real-world applications.

Choose a Capsule Sensor

Perfect Arduino-Compatible! Why we choose Arduino?
  • The developers of IoT applications are mostly software engineers. I am sure that no software engineer wants to waste life in the configuration registers, system clock, and then light up an LED… Arduino is developed based on C++. Developlers only need call the APIs, such as the familiar

    Serial.begin (115200);

  • Arduino is well known and simple enough, makes the IoT application development more easy;
  • Thousands of Arduino library resources;
  • Developlers can use Arduino® in Windows®, Mac OS®, Linux. But the traditional PSoC development platform only supports Windows® system;
  • https://github.com/HelTecAutomation/ASR650x-Arduino
Why we choose ASR650x series?

The ASR650x series currently includes two chips: ASR6501 and ASR6502.

The series has already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262 LoRa chips, which have great application significance! Can greatly reduce the circuit size and cost.

Ultra low power consumption

Sleep current 3.5uA

If communicate with a LoRa Gateway every 15 minutes through the LoRaWAN protocol, an 80mAh lithium battery can work for three months. If use a 1200mAh lithium battery, the working time will be more than 3 years!

Solar panel support

We believe that the key to LoRa node is low power consumption and solar energy. This will keep LoRa node system working for a long time.

Both the Dev-Board and the Capsule Sensor are reserved with a solar interface, which can directly connect to the solar panel of 5.5~7V. If the sun is directly exposed for more than 2 hours every day, the lithium battery can be used forever.

Good impedance matching
