Sale!

OLED Display

$1.90 – $24.90

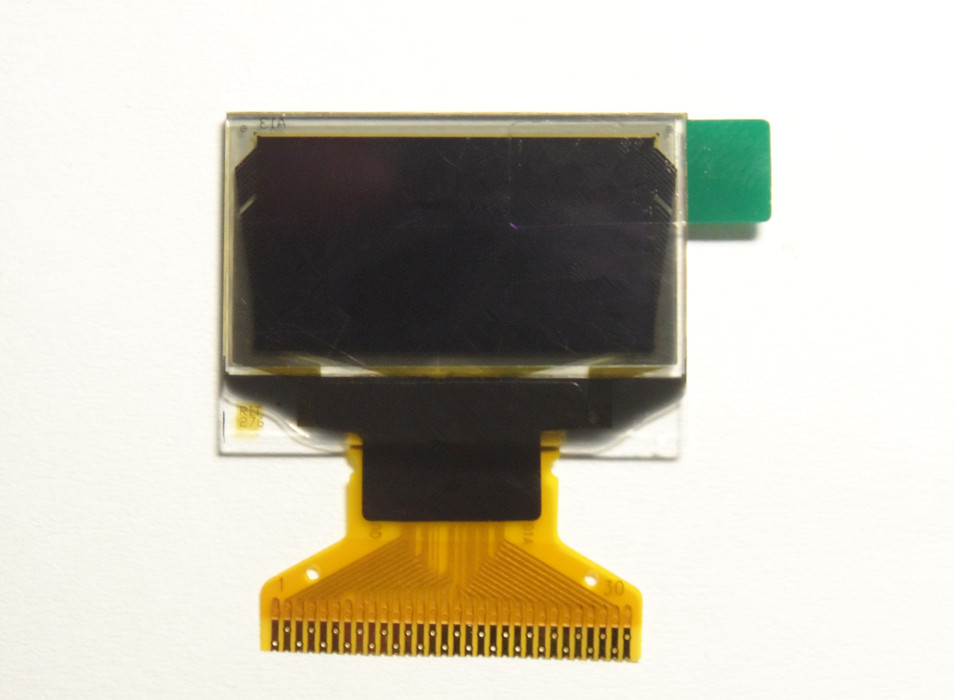

  • OLED Display Only, without PCB
Category: SKU: N/A

Description

0.32″ 0.42″ 0.49″ 0.50″ 0.54″ 0.63″ 0.66″ 0.69″ 0.69″ 077″ 0.87″ 0.87″ 0.91″ 0.91″ 0.96″ 1.09″ 1.12″ 1.3″ 1.32″ 1.40″ 1.50″ 1.54″ 1.92″ 2.23″ 2.42″ 2.70″ 3.12″
Number of Pixels 60×32 72×40 64×32 44×88 96×32 120×28 64×48 96×16 96×16 64×128 128×32 128×32 128×32 128×32 128×64 64×128 128×128 128×64 128×96 160×160 128×128 128×64 128×160 128×32 128×64 128×64 256×64
Active Area(mm) 7.06×3.28 9.196×5.18 11.18×5.58 6.124×11.244 12.46×4.14 15.58×3.62 13.42×10.06 17.26×3.18 17.26×3.18 9.26×17.26 22.38×5.58 22.38×5.58 22.38×5.58 22.38×5.58 21.744×10.864 10.86×25.58 20.14×20.14 29.42×14.7 26.86×20.14 25×24.815 26.855×26.855 35.052×17.516 28.908×39.34 55.02×13.1 55.01×27.49 61.41×30.69 76.78×19.18
Panel Size(mm) 9.96×8.85×1.2 12.0×11.0×1.25 14.5×11.6×1.21 8.928×17.1×1.277 18.52×7.04×1.22 21.54×6.62×1.22 18.46×18.1×1.25 24×6.9×1.25 24×6.9×1.25 12.13×23.6×1.22 29.0×8.8×1.22 29.0×8.8×1.22 30×11.5×1.2 30.0×11.50×1.2 26.70×19.26×1.4 14×31.96×1.22 27×30.1×1.25 34.5×23.0×1.4 32.6×28.3×1.6 29×31.9×1.427 33.9×37.3×1.44 42.04×27.22×1.45 34.5×48.8×1.4 62×24 ×2.0 60.5×37.0×1.8 73.0×40.24×2.0 88×27.8×2.0
Pixel pitch(mm) 0.118×0.12 0.128×0.13 0.175×0.175 0.128×0.128 0.13×0.13 0.13×0.13 0.21×0.21 0.18×0.2 0.18×0.2 0.135×0.145 0.175×0.175 0.175×0.175 0.175×0.175 0.175×0.175 0.17×0.17 0.17×0.2 0.1575×0.1575 0.23×0.23 0.21×0.21 0.156×0.155 0.21×0.21 0.274×0.274 0.226×0.246 0.43×0.41 0.43×0.43 0.48×0.48 0.3×0.3
Pixel Size(mm) 0.098×0.10 0.108×0.11 0.155×0.155 0.108×0.108 0.11×0.11 0.11×0.11 0.19×0.19 0.16×0.18 0.16×0.18 0.115×0.125 0.155×0.155 0.155×0.155 0.155×0.155 0.155×0.155 0.154×0.154 0.15×0.18 0.1375×0.1375 0.21×0.21 0.19×0.19 0.136×0.135 0.185×0.185 0.249×0.249 0.206×0.226 0.41×0.39 0.40×0.40 0.45×0.45 0.28×0.28
Weight TBD TBD TBD TBD TBD TBD TBD TBD TBD TBD TBD TBD TBD TBD 1.54g TBD TBD 2.18g TBD TBD TBD TBD TBD TBD TBD TBD TBD
Duty   1/32   1/40   1/32   1/48   1/32   1/28   1/48   1/16   1/16 1/128 1/128 1/128   1/32   1/32 1/64 1/64 1/128 1/64 1/96 1/160 1/128 1/64 1/60 1/32 1/64 1/64 1/64
Color Monochrome            (White) Monochrome

(White)

 Monochrome            (White) Monochrome            (White) Monochrome            (White) Monochrome            (White) Monochrome            (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (Blue) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White) Monochrome                     (Yellow) Monochrome                     (White) Monochrome                     (White) Monochrome                     (White)
Porwer Supply Voltage 1.65~3.3V 1.65~3.3V 1.65~3.3V 1.65~3.5V 1.65~3.5V 1.65~3.3V 1.65~3.5V 1.65~3.3V 1.65~3.3V 1.65~3.3V 1.65~3.5V 1.65~3.5V 1.65~3.3V 1.65~3.3V 1.65~3.3V 1.65~3.5V 1.65~3.5V 1.65~3.3V 2.6~3.5V 1.65~3.5V 1.65~3.5V 1.65~3.3V 1.65~3.3V 1.65~3.3V 1.65~3.3V 2.6~3.5V 1.65~3.3V
Frame Rate 180 Frames/Sec 160 Frames/Sec 140 Frames/Sec 190 Frames/Sec 140 Frames/Sec 140 Frames/Sec 140 Frames/Sec 150 Frames/Sec 150 Frames/Sec 100 Frames/Sec 100 Frames/Sec 100 Frames/Sec 100 Frames/Sec 100 Frames/Sec
Operating Temperature  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃  -40~70℃ -40~70℃ -40~70℃ -40~70℃ -40~70℃ -40~70℃ -40~70℃ -40~70℃ -40~70℃ -40~70℃
Storage Temperature  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃  -40~85℃ -40~85℃ -40~85℃ -40~85℃ -40~85℃ -40~85℃ -40~85℃ -40~85℃ -40~85℃ -40~85℃
Brightness 160 (Min) cd/m² 360 (Min) cd/m² 160 (Min) cd/m² 80 (Min) cd/m² 190 (Min) cd/m² 220(Min) cd/m² 80 (Min) cd/m² 200 (Min) cd/m² 200 (Min) cd/m² 260 (Min) cd/m² 120 (Min) cd/m2 160 (Min) cd/m² 120 (Min) cd/m² 120 (Min) cd/m² 80 (Min) cd/m2 80 (Min) cd/m2 100 (Min) cd/m2 70(Min) cd/m2 80 (Min) cd/m2 100 (Min) cd/m2 80 (Min) cd/m2 80 (Min) cd/m2 80 (Min) cd/m2 100 (Min) cd/m2 90 (Min) cd/m2 50 (Min) cd/m2 60 (Min) cd/m2
Driving Voltage Internal DC/DCEnable 3.5～4.2V 3.5～4.2V 3.5～4.2V 3.5～4.75V 3.5～4.2V 3.5～4.2V 3.5～4.2V 3.3～4.2V 3.5～4.2V 3.5～4.2V 3.5～4.2V 3.5～4.2V 3.5～4.2V 3.5～4.75V 3.5～4.2V 3.5～4.2V － － － － －
Supplied Externally 8V 9V 8V 7.5V 8V 9V 7.5V 8V 8V 9V 9V 9V 7.5V 7.5V 9V 7.5V 12V 12V 15V 13V 12V 12V 12V 12V 12.5V 15V 12V
Interface I²C 4-wire SPI/I²C I²C I²C I²C I²C Parallel /I2C/ 4-wire SPI I²C I²C 4-wire SPI I²C 4-wire SPI I²C 4-wire SPI Parallel /I2C/ 4-wire SPI 4-wire SPI Parallel /I2C/ 4-wire SPI  4-wire SPI Parallel /I2C/ 4-wire SPI Parallel /I2C/ 4-wire SPI Parallel /I2C/ 4-wire SPI Parallel /I2C/ 4-wire SPI Parallel /I2C/ 4-wire SPI Parallel /I2C/ 4-wire SPI Parallel /I2C/ 4-wire SPI Parallel / 4-wire SPI Parallel / 4-wire SPI
Folding Ability Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type Folding Type
Assembly Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Soldering Connector Soldering Connector Connector Soldering Soldering
Drive IC SSD1315 SSD1315 SSD1306 CH1115 CH1115 SSD1312 SSD1315 SSD1312 SSD1312 SSD1312 SSD1312 SSD1312 SSD1306 SSD1306 SSD1306 CH1115 SH1107 SH1106 SSD1327 CH1120 SH1107 CH1116 CH1127 SSD1305 SSD1039 SSD1327 SS1322UR1(COF)
Pins 14 16 14 14 14 14 28 14 8 13 14 15 14 14 30 15 22 16 25 30 25 24 31 24 24 30 30

Additional information

OLED Size

0.32 inch, 0.42 inch, 0.49 inch, 0.5 inch, 0.54 inch, 0.63 inch, 0.66 inch, 0.69 inch, 0.77 inch, 0.87 inch, 0.91 inch, 0.96 inch, 1.09 inch, 1.12 inch, 1.3 inch, 1.32 inch, 1.4 inch, 1.5 inch, 1.54 inch, 1.71 inch, 1.92 inch, 2.23 inch, 2.42 inch, 2.7 inch, 3.12 inch, 4.97 inch, 5.44 inch, 5.9 inch, 6.39 inch
Interface

IIC, SPI, Parallel
Color

White, Blue, Yellow&Blue, Monochrome(White), Monochrome(Blue)
Module or Screen only

module, screen only
