WiFi Kit 32 (Phaseout)
$13.00
- Include a SH1.25 x 2 battery cable;
- Not include Li-Po battery and Micro USB cable.
- Status: This product has been discontinued, not recommended for new designs.
- Alternate Products: WiFi Kit 32 (V3)
- 3.7V/1000mAh lithium (Sale only for mainland China)
- Cooling rib
Out of stock
Related products
-
Wireless Stick Lite (V3) $14.90 -
WiFi LoRa 32 (V3) $17.90 – $19.90 -
CubeCell GPS-6502 $25.80 -
CubeCell - Dev-Board (Phaseout) $0.00 – $12.90 -
Wifi Kit 8 $7.59 -
OLED Display (No PCB) $6.90 – $19.90

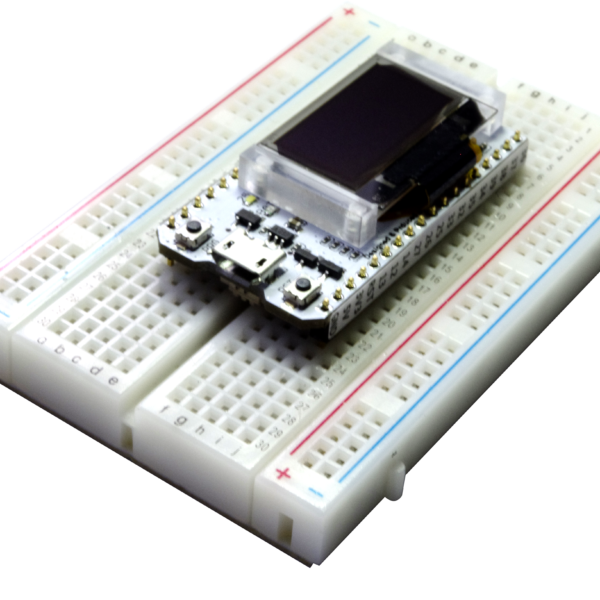

WiFi Kit 32 is a classic IoT dev-board designed & produced by Heltec Automation(TM), it’s a highly integrated product based on ESP32 (include Wi-Fi and BLE), Li-Po battery management system, 0.96″ OLED are also included. It’s the best choice for smart cities, smart farms, smart home, and IoT makers.
This product can’t meet your needs? Choose from the Heltec Products Selecter.
WiFi Kit 32 is a part of the “Heltec ESP Arduino“ series, with the following features:
- Microprocessor: ESP32 (dual-core 32-bit MCU + ULP core);
- Micro USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures;
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
- Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna;
- Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;
- Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
- Compatible with the Arduino development environment.
How to install Heltec ESP32 Arduino Development Environment
Heltec ESP32 Series Source code
Heltec ESP(ESP32 & ESP8266) framework (the basic of Heltec ESP series products Arduino running environment): https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series
Heltec ESP32 library (must work with Heltec ESP framework): https://github.com/HelTecAutomation/Heltec_ESP32
WiFi Kit 32 Pin out Diagram
Heltec Products Selecter
WiFi Kit 32 Schematic Diagram
Heltec ESP Arduino Porducts Difference Table (Product Selection Table)
Frequently Asked Questions
AutoCAD & 3D Drawing
AutoCAD 2017 version drawding: http://resource.heltec.cn/download/WiFi_Kit_32/lora32%26kit32.dwg
Solid Works 2014 Version 3D Drawing: http://resource.heltec.cn/download/WiFi_Kit_32/lora32%26kit32.stl
Interesting applications made by WiFI LoRa 32
-
WiFi Kit 32 NTP Clock: https://www.instructables.com/id/WiFi-Kit-32-NTP-Clock/
-
Heltec(TM) WiFi Kit 32 Based Network Scanner: https://www.instructables.com/id/Heltech-WiFi-Kit-32-Based-Network-Scanner/
- User test report: https://robotzero.one/heltec-wifi-kit-32/
- Over View
-
WiFi Kit 32 is a part of the “Heltec ESP Arduino“ series, with the following features:
- Microprocessor: ESP32 (dual-core 32-bit MCU + ULP core);
- Micro USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures;
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
- Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna;
- Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;
- Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
- Compatible with the Arduino development environment.
- Datasheet
- Docs & Resource
-
How to install Heltec ESP32 Arduino Development Environment
Heltec ESP32 Series Source code
Heltec ESP(ESP32 & ESP8266) framework (the basic of Heltec ESP series products Arduino running environment): https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series
Heltec ESP32 library (must work with Heltec ESP framework): https://github.com/HelTecAutomation/Heltec_ESP32
WiFi Kit 32 Pin out Diagram
Heltec Products Selecter
WiFi Kit 32 Schematic Diagram
Heltec ESP Arduino Porducts Difference Table (Product Selection Table)
Frequently Asked Questions
AutoCAD & 3D Drawing
AutoCAD 2017 version drawding: http://resource.heltec.cn/download/WiFi_Kit_32/lora32%26kit32.dwg
Solid Works 2014 Version 3D Drawing: http://resource.heltec.cn/download/WiFi_Kit_32/lora32%26kit32.stl
Interesting applications made by WiFI LoRa 32
-
WiFi Kit 32 NTP Clock: https://www.instructables.com/id/WiFi-Kit-32-NTP-Clock/
-
Heltec(TM) WiFi Kit 32 Based Network Scanner: https://www.instructables.com/id/Heltech-WiFi-Kit-32-Based-Network-Scanner/
- User test report: https://robotzero.one/heltec-wifi-kit-32/
-
