Heltec LoRa Node Series
Applied for Meshtastic
Meshtastic® is a project that enables you to use inexpensive LoRa radios as a long range off-grid communication platform in areas without existing or reliable communications infrastructure. This project is 100% community driven and open source! Our ESP32 +LoRa series and nRF52840 series all support meshtastic.
BRANCHS
Heltec LoRa Node Series has Two Branches：

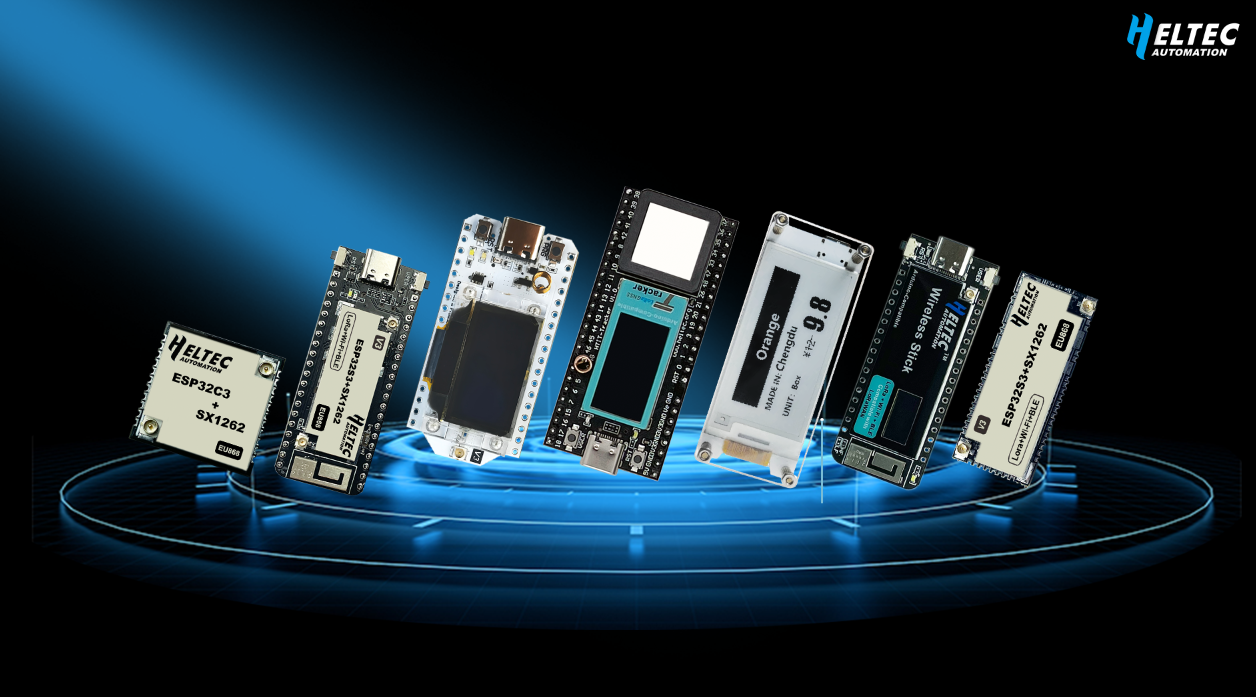

ESP32 + LoRa Series
ESP32 Series is more suitable for high-performance applications that require both Wi Fi and Bluetooth (including BLE) support.
- Base ESP32+SX1262
- Support LoRa/WiFi/BLE three communication modes.
- ESP32 is a powerfull SoC with 240MHz Tensilica LX6 dual-core & 1 ULP core, 600 DMIPS, 520KB SRAM.
- Fully supports Arduino ®， Can run LoRaWAN protocol stably.
nRF52840 + LoRa Series
nRF Series is more suitable for applications that require low-power wireless communication, especially BLE.
- nRF52840 + SX1262
- Meshtastic minimum operating current is 9mA, Tracker mode sleep current is 11uA
- Applied to extremely compact GNSS module L76K
- Hardware and open-source code specifically optimized for Meshtastic
Key Features
Low Power Consumption
ESP32 Series Sleep current 10~15uA, If communicate with a LoRa Gateway through the LoRaWAN protocol, with a 1200mAh lithium battery, Data can be sent up to 80,000 times.
Multi Wireless Communication
Multi wireless communication technical on board, include WiFi, BlueTooh/BLE, LoRa, and the sub-model Wireless Tracker4 supports GNSS.
Powerful Computing Skills
ESP32 is a powerfull SoC with 240MHz Tensilica LX6 dual-core & 1 ULP core, 600 DMIPS, 520KB SRAM.
Ultra Low Power Consumption
Mesh Node T114 Meshtastic minimum operating current is 9mA, low power consumption mode current is only 23uA. Tracker mode sleep current is 11uA.
Ultra-Compact L76K Optional
Mesh Node T114 optional GPS, the L76K GNSS module is an extremely compact, concurrent receiver supporting GPS, GLONASS, Galileo, BDS, and QZSS. Allowing it to simultaneously acquire and track multiple satellite signals.
Powerful communication
Mesh Node T114 integrate multiple power interfaces, 5V USB, lithium battery and solar panel, provid abundant pins and hardware resources.
Nrf series low power analyzep
TOPOLOGICAL RELATIONSHIPS
BUILD THE SYSTEM
You can find suitable devices from the following series and easily build an application system that suits your application.
