HT-M01S Indoor LoRa Gateway (Rev.2.0)

$159.00

  • Type C wire included, adapter is not included;
  • Including WiFi, LoRa antenna;
  • External transceiver function only for Heltec Hotspots.
  • USB adapter (5V-1A)
    Category: SKU: ZC-124 Tags:

    Related products

    The most significant feature of HT-M01S (Rev. 2.0) is that it is a standard LoRaWAN gateway based on ESP32 MCU, without running Linux operating system on a high-performance CPU, which can greatly reduce the cost of a common LoRaWAN gateway.

    It also acts as an assist device for the Helium Hotspot. When you are participating in the Helium project, you may have the following needs:

    1. You may need a device that can detect the number of nearby Beacons, help you find the best deployment location, and get as much profit as possible.
    2. When your Helium hotspot is deployed, you will find that the long antenna feeder will cause signal attenuation and affect your choice of antenna placement.

    Generally speaking, HT-M01S (Rev. 2.0) has the following three features:

    • Can be used as a regular LoRaWAN gateway;
    • Can be used as Helium Beacon Sniffer;
    • Can be used as an external transfer of Heltec Indoor Hotspot,

    This product can’t meet your needs? Choose from our Heltec Products Selecter..

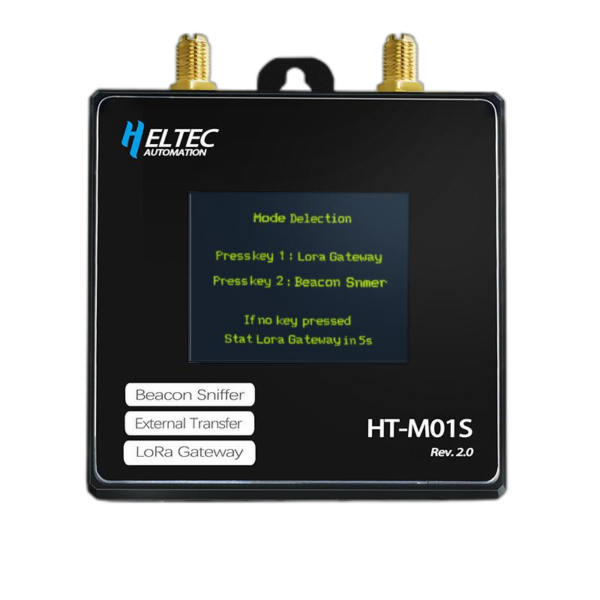

    aa463a20ebedda9c268ab922976824d

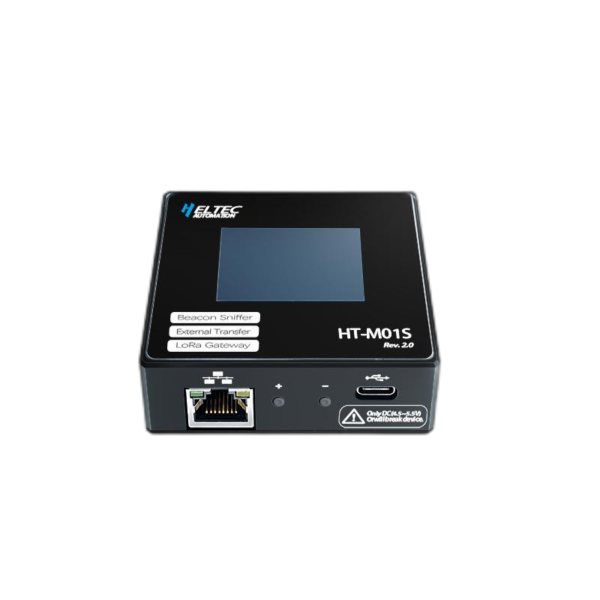

    IMG_20220401_100903

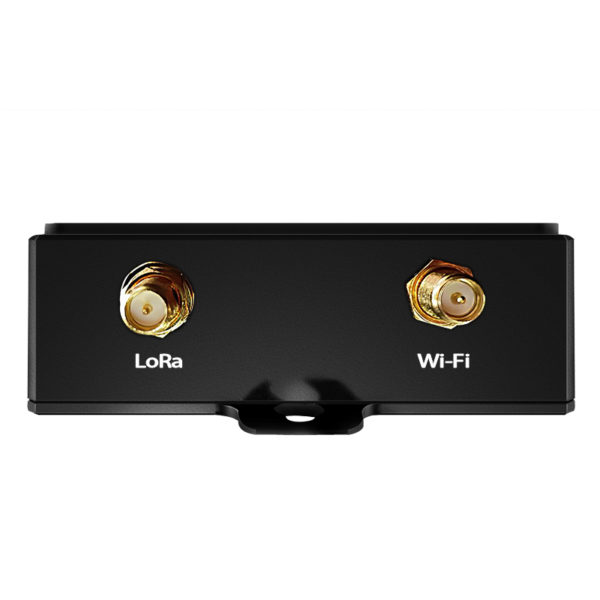

    764533659415904308

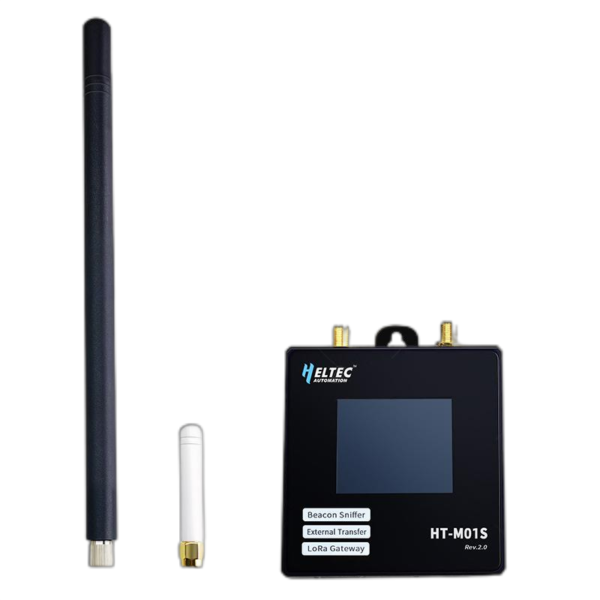

    IMG_20220401_100745
    IMG_20220401_100630
    WechatIMG435

    HT-M01S Rev.2.0 Indoor LoRa Gateway is a part of the “Heltec LoRa“ series, with the following features:

    • 3 In 1 function:
      • Helium Beacon Sniffer;
      • LoRa External Transceiver (Only for the Helium hotspot made by Heltec);
      • Ready to use Normal LoRaWAN Gateway.
    • ESP32 MCU;
    • Wi-Fi and Ethernet supported;
    • Based on Heltec HT1303 LoRaWAN Concentrator Module;
    • Maximum output: 27 ± 2 dBm
    • The power supply voltage: 5V
    • Support for LoRaWAN Class A, and Class C protocols;
    • -40°C to 85°C maximum operating temperature range
    • Working bands: Full band coverage corresponds to the working frequency option.
    Download

    HT-M01S User Manual

    https://resource.heltec.cn/download/HT-M01S_V2/HT-M01S-V2(V1.1).pdf

    HT-M01S Relevant Resources Page

    https://resource.heltec.cn/download/HT-M01S_V2

    HT-M01S Relevant Docs Page

    https://docs.heltec.cn/en/gateway/ht-m01s_v2/index.html

    Heltec LoRa Gateway Porducts Difference Table (Product Selection Table)

    https://docs.heltec.cn/#/en/products/lora/lora_gateway/heltec_lora_gateway_list

    Heltec Products Selecter

    https://products.heltec.org/main/select

    AutoCAD Drawing

    AutoCAD 2016 Drawing: https://resource.heltec.cn/download/HT-M01S_V2/ht-m01s-v2.dwg

    How to Config HT-M01S Connect to a LoRa Server

    Highly Recommend Private Open-source LoRa Server Solution

    https://www.loraserver.io/

    LoRaWAN Frequency Plans and Regulations by Country.

    https://heltec-automation-docs.readthedocs.io/en/latest/general/lorawan_frequency_plans_by_country.html

    Over View

    HT-M01S Rev.2.0 Indoor LoRa Gateway is a part of the “Heltec LoRa“ series, with the following features:

    • 3 In 1 function:
      • Helium Beacon Sniffer;
      • LoRa External Transceiver (Only for the Helium hotspot made by Heltec);
      • Ready to use Normal LoRaWAN Gateway.
    • ESP32 MCU;
    • Wi-Fi and Ethernet supported;
    • Based on Heltec HT1303 LoRaWAN Concentrator Module;
    • Maximum output: 27 ± 2 dBm
    • The power supply voltage: 5V
    • Support for LoRaWAN Class A, and Class C protocols;
    • -40°C to 85°C maximum operating temperature range
    • Working bands: Full band coverage corresponds to the working frequency option.
    Datasheet
    Download
    Docs & Resource

    HT-M01S User Manual

    https://resource.heltec.cn/download/HT-M01S_V2/HT-M01S-V2(V1.1).pdf

    HT-M01S Relevant Resources Page

    https://resource.heltec.cn/download/HT-M01S_V2

    HT-M01S Relevant Docs Page

    https://docs.heltec.cn/en/gateway/ht-m01s_v2/index.html

    Heltec LoRa Gateway Porducts Difference Table (Product Selection Table)

    https://docs.heltec.cn/#/en/products/lora/lora_gateway/heltec_lora_gateway_list

    Heltec Products Selecter

    https://products.heltec.org/main/select

    AutoCAD Drawing

    AutoCAD 2016 Drawing: https://resource.heltec.cn/download/HT-M01S_V2/ht-m01s-v2.dwg

    How to Config HT-M01S Connect to a LoRa Server

    Highly Recommend Private Open-source LoRa Server Solution

    https://www.loraserver.io/

    LoRaWAN Frequency Plans and Regulations by Country.

    https://heltec-automation-docs.readthedocs.io/en/latest/general/lorawan_frequency_plans_by_country.html
