LoRa Enable: CubeCell Series
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
Based on the ASR650x series of chips, we have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels… This is the CubeCell series.
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
Branches
CubeCell series has three branches:
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)

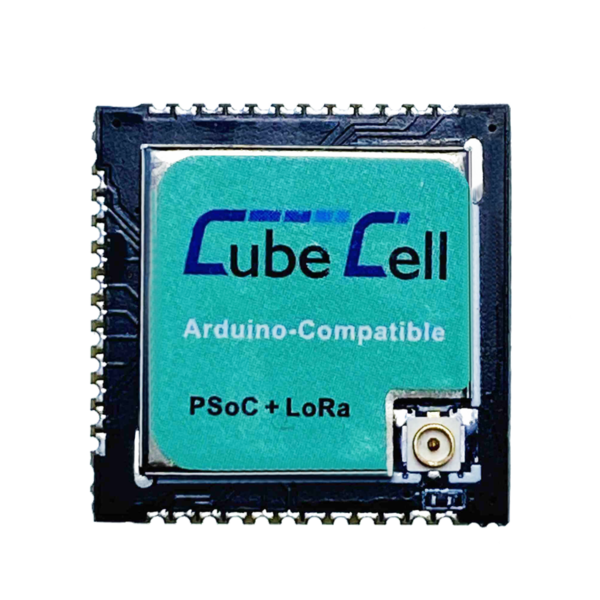

Modul
- Support AT commands;
- Arduino-Compatible;
- 1.27 x 11 stamp edge design;
- Can be directly integrated into the application circuit, can work as a MCU master unit or LoRa transceiver.
CubeCell – AM01 Module (V2)
$9.90CubeCell AM02 Module Plus
$11.80 – $11.90![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)

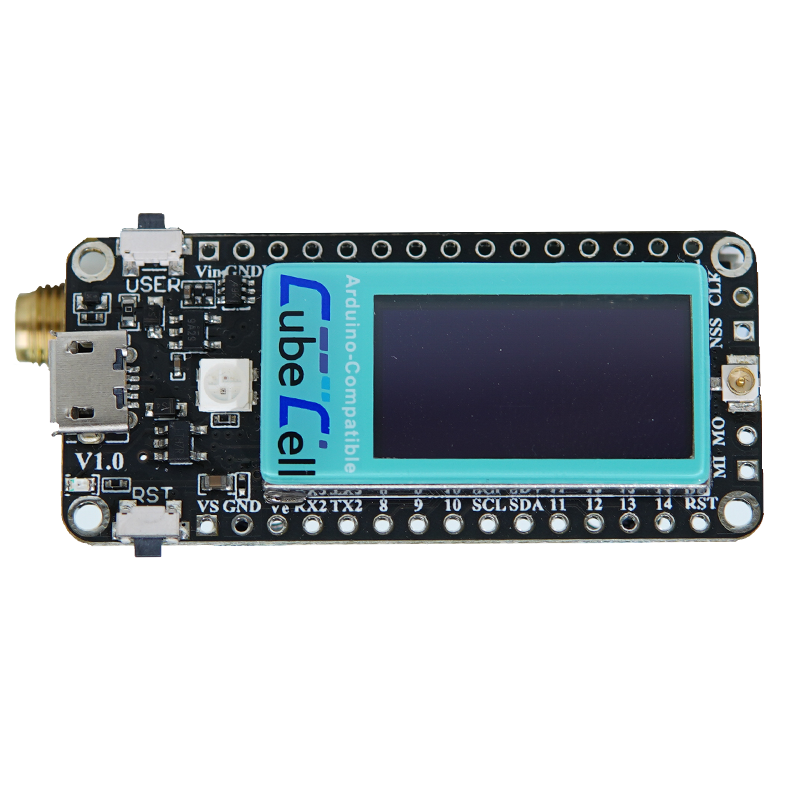

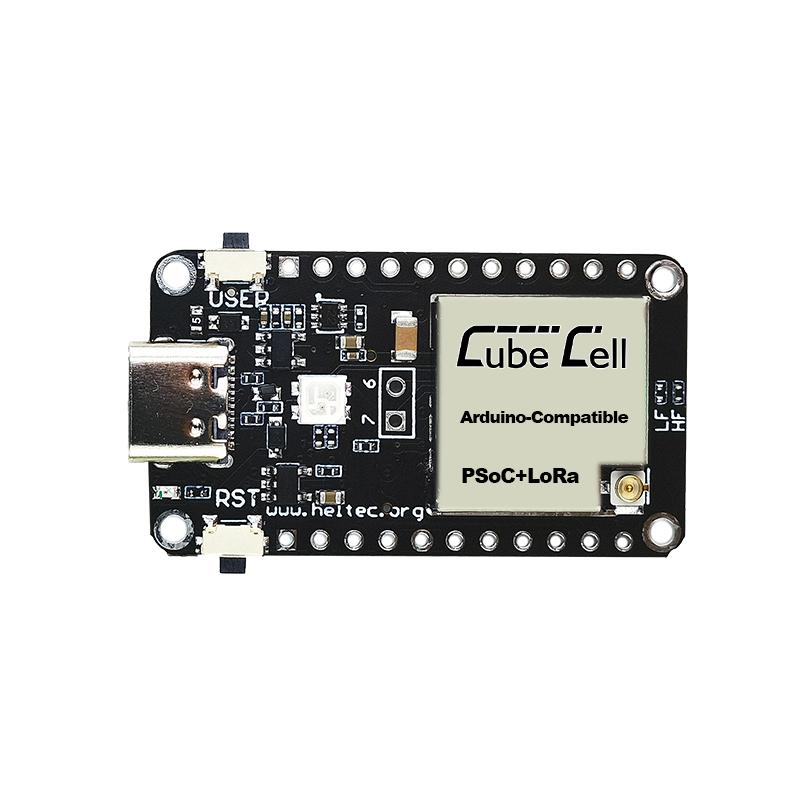

DEV-Board
- Arduino-Compatible;
- Very friendly for developers, only need a micro USB connct to a computer, users can begin LoRa IoT project develop;

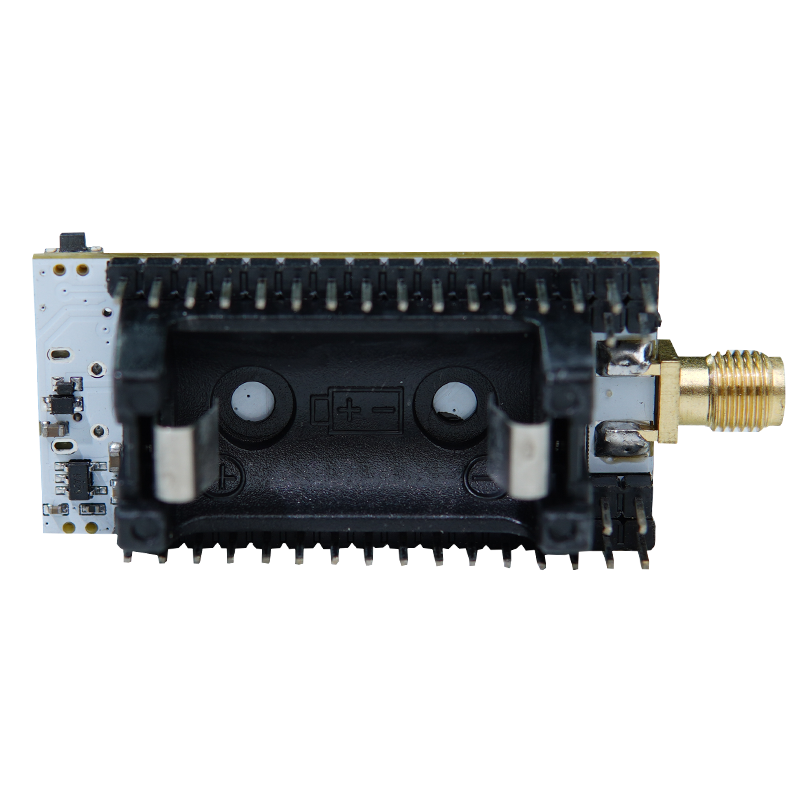

- Full power management system, can connect with a solar panel directly, submodels integrate 1/2AA battery holder;
- The submodels support GNSS.
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
Capsule Sensor
- Arduino-Compatible;
- Replaceable sensor design;
- Available in a variety of sensor case;
- Already highly integrated, with complete enclosure and protection measures that can be deployed directly into real-world applications.
![](https://heltec.org/wp-content/uploads/2023/11/capsule_blue.png)
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
Key Features
Ultra Low Power Consumption
Sleep current 3.5uA, If communicate with a LoRa Gateway every 15 minutes through the LoRaWAN protocol, an 80mAh lithium battery can work for three months. If use a 1200mAh lithium battery, the working time will be more than 3 years!
Solar Panel Support
The equipment has a clever structural design, which not only ensures a beautiful appearance and convenient installation, but also has good protective characteristics. Some devices has an IP66 protection level.
Perfect Arduino-Compatible
Arduino is well known and simple enough, makes the IoT application development more easy;Developlers only need call the APIs, such as the familiar. Thousands of Arduino library resources;Developlers can use Arduino® in Windows®, Mac OS®, Linux.
ASR650x Series
The series has already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262 LoRa chips, which have great application significance! Can greatly reduce the circuit size and cost.
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
Development Environment Installation
![cubecellinstall1](https://heltec.org/wp-content/uploads/2023/11/cubecellinstall1.png)
![CUBECELLinstall2](https://heltec.org/wp-content/uploads/2023/11/CUBECELLinstall2.png)
![cubecellinstall1](https://heltec.org/wp-content/uploads/2023/11/cubecellinstall1-150x150.png)
![CUBECELLinstall2](https://heltec.org/wp-content/uploads/2023/11/CUBECELLinstall2-150x150.png)
Heltec provides you with a variety of models of sub-equipment and a rich selection of accessories, for different needs. In addition to providing the development environment and sample code, we also set up a free iot platform and LoRaWAM server for testing.
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
BUILD THE SYSTEM
You can find suitable devices from the following series and easily build an application system that suits your application.
