Description
1.90 TFT LCD Screen Specifications
| Parameters | Description |
|---|---|
| Resolution | 170*320 |
| Interface type | 4-SPI/8-bit parallel port |
| Chip | ST7789V3 |
| Display area | 22.695 * 42.72(mm) |
| Pixel size | 0.135*0.135(mm) |
| Brightness | 350(TYP) |
| Operation temperature | -20~70℃ |
| Panel Size | Rubber frame backlight：25.8*49.72*1.43（T)(mm) Integrated rubber and iron: 25*49.32*1.43（T)(mm) |
| Number of pins | 30pin 0.5mm distance plug-in type |
0.96 OLED Screen Specifications
| Parameters | Description |
|---|---|
| Resolution | 128*64 |
| Interface type | 4-wire SPI I2C |
| Chip | SSD1315 |
| Display area | 21.744*10.864(mm) |
| Pixel size | 0.15*0.15(mm) |
| Operation temperature | -40~70℃ |
| Panel Size | 24.74*16.9*1.40(mm) |
| Number of pins | 30pin 0.7mm distance plug-in type |
2.13-inch Electronic Paper ink Screen Specifications
| Parameters | Description |
|---|---|
| Resolution | 122*250 |
| Interface type | 3-/4-wire SPI |
| Chip | SSD1680Z JD79661 |
| Display area | 23.7046*48.55(mm) |
| Pixel size | 0.1943*0.1942 |
| Operation temperature | -25~70℃ |
| Panel Size | 29.2(H)*59.2(V)*1.0(D)(mm) |
| Number of pins | 24Pin 0.5mm Spacing plug-in connector |
L76 GNSS Specifications
| Parameters | Description |
|---|---|
| UART | Adjustable 4800~115200bps |
| Update rate | 1Hz (default), up to 10Hz |
| Power supply | 2.8V~4.3V |
| I/O Voltage | 2.7V ~ 2.9V |
| Position Accuracy | 2.5m CEP |
| Timing Accuracy 1PPS | 10ns |
| Operation temperature | -40℃ to 85℃ |
| Storage Temperature | -45℃ to 125℃ |
| Dimensions | 10.1 x 9.7 x 2.5mm |
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| GPS-Display Expansion Board | x1 |
Characteristics
| Weight | 4 g |
|---|---|
| Dimensions | 8.6 × 2.8 × 1.7 cm |
| Display Type | 1.9-inch TFT LCD screen, 0.96-inch OLED screen, 2.13-inch Electronic paper ink screen |
No Reviews
GPS-Display Expansion Board
What's this?

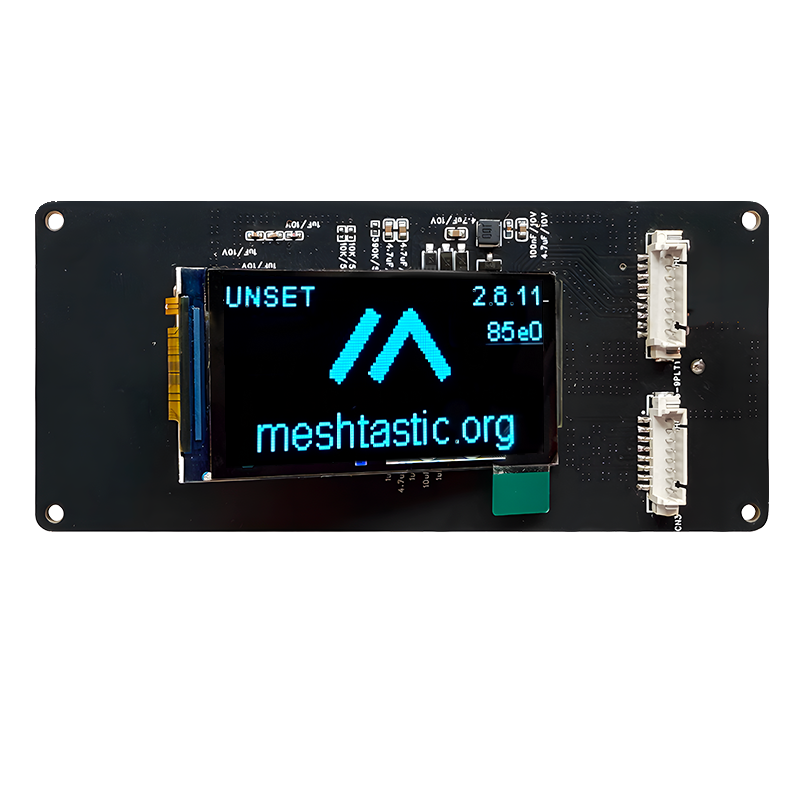

GPS-Display Expansion Board features a built-in L76 GNSS module and supports three types of display interfaces, making it adaptable for a variety of application scenarios.
