Wireless Aggregator — Bus Transformer
$75.00 – $175.00
What's this?
Bus Transformer is a LoRa/LoRaWAN device for outdoor applications, It is possible to communicate with other devices and sensors through RS485 on the device, built-in 4 x 2000 mAh batteries, and battery management system, allowing it to be charged directly via a solar panel.
Description
Add an Accessories
Characteristics
No Reviews
Description
Summary
HRI-3632 is a LoRaWAN conveter belonging to Sensor Hub for outdoor series,used to drive various third-party sensors. We have added 4 GPIO to it and equipped it with junction box to ensure the compatibility of its interfaces. Benefits from the IP66 protection provided by high-strength plastics, it can adapt to a variety of complex outdoor environments.
HRI-3632 has the characteristics of low power consumption and long transmission distance. Built-in large capacity rechargeable battery, which can be charged through the DC power and solar interface, ensures that it can work stably for a long time.
Main Features
- Industrial grade protection structure, IP66 protection grade, Lightning protection design, ESD protection and isolation.
- Ultra-low power consumption design.
- With special junction box, interface compatibility is strong.
- Built-in 2000mAh x4 rechargeable battery, can be charged by DC and solar energy.
- Wireless data transmission communication radius up to 5km.
- Working condition: -40~80°C, Working humidity: ≤90% (non-condensing).
- Power supply mode: built-in battery or external 5~24V DC powersupply.
Specifications
| Parameters | Description |
|---|---|
| Temperature | -40 ~ 80 °C |
| Humidity | 0 ~ 90% RH (non condensing) |
| Interface | Flange seat |
| External Power Supply and Charging Voltage | 7~24V |
| Power Out | 5V/9V/12V |
| Max. Receiving sensitivity | -134dBm@SF12 BW=125KHz |
| Max. TX Power | 21± 1dBm |
| Signal Range | 5km (depending on gateway antenna and environments) |
| IP Rating | IP66 |
| Battery Capacity | 2000mAh x4 |
Flange Seat Pin Definition
Description
Easy config
Power ON
Scan and register
Display
High light
FAQ
We recommend a solar panel, please refer to this solar panel parameters:Solar Panel
This depends on the sensor type, data transmission interval, and other LoRa parameters. Please contact sales for confirmation.
1. Electrical characteristics do not meet the requirements of the sensor.
2. The Settings on the page do not match the actual access line.
3. When the 5/9/12V output is used, set the DIP switch to the appropriate position.
4. Note Some sensors need to hold power input for a longer period of time. Set the “TIME BEFORE READ” option on the Settings page. This time can be obtained by asking the sensor manufacturer or by doing your own experiments.
Note that the 48V input pin cannot charge the battery.
Docs & Resource
- [Resource] —Wireless Aggregator Series Introduction
- [Attachment] —Datasheet
- [Document] — User Manual
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| Wireless Aggregator — Bus Transformer | x1 |
| Wall Holder | x1 |
| 12mm 8 pin round female waterproof header | x2 |
Add an Accessories
Recommend accessories for Wireless Aggregator — Bus Transformer
Industrial Computer
$129.00
Solar IoT Battery Pack
Original price was: $429.00.$369.00Current price is: $369.00.
8 Pin Circular Waterproof Joint
$8.99 – $11.99
HT-M02 Edge LoRa Gateway (V2)
$229.00 – $299.00Related products
-
Wireless Stick Lite(V3) $14.90 -

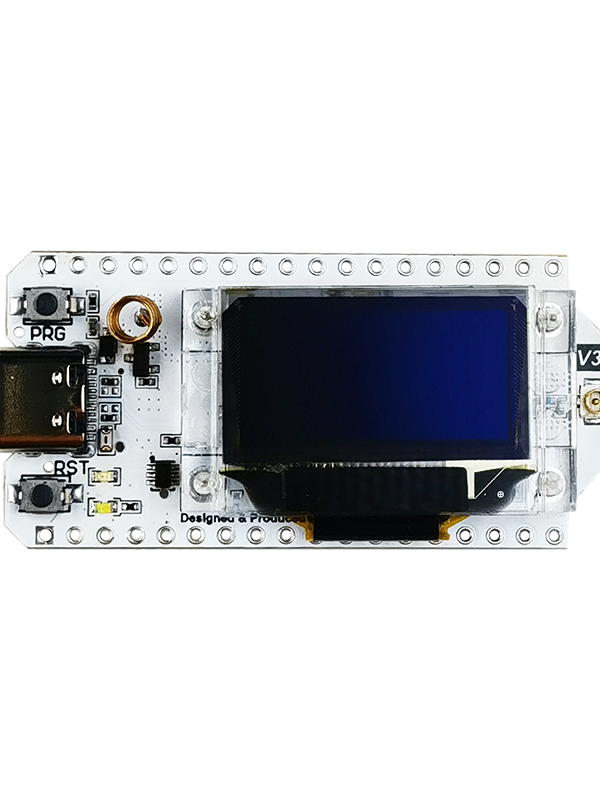

WiFi LoRa 32(V3) $17.90 – $19.90 -
HT-M00 Dual Channel LoRa Gateway Original price was: $45.00.$39.00Current price is: $39.00.
Characteristics
| Weight | 400 g |
|---|---|
| Dimensions | 13 × 7 × 6 cm |
| LoRa Band | 433MHz, 470~510MHz, 863~870MHz, 902~928MHz |
| Need Sensor ? | NO, Soil t&h+EC+salinity+NPK+pH sensor, Liquid level sensor, Pipe Pressure transmitter, Water quality sensor |
