Description
Summary

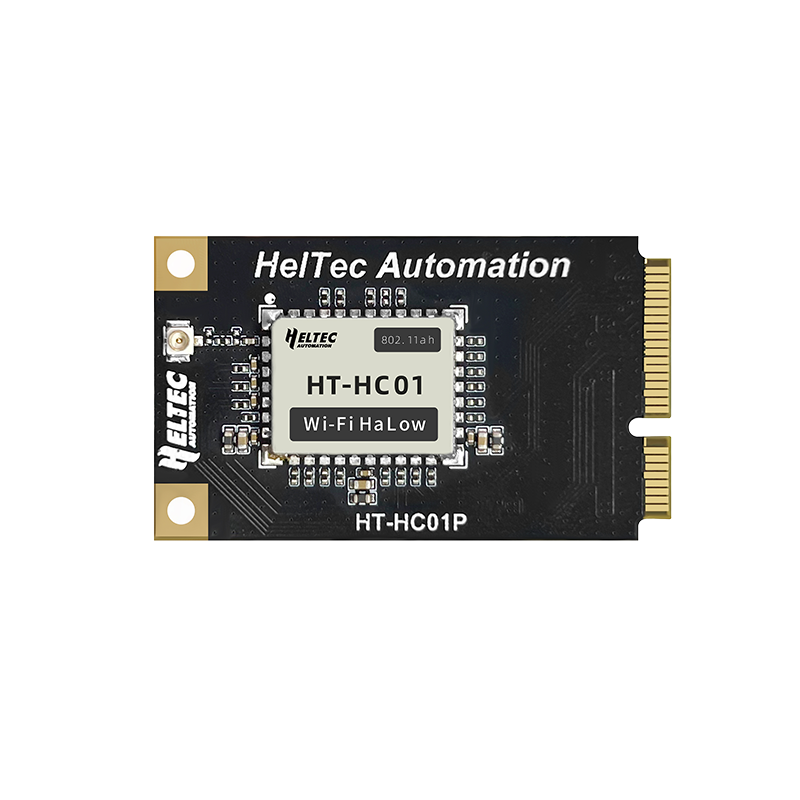

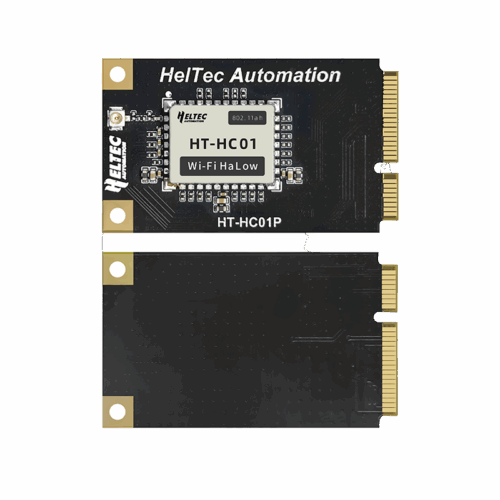

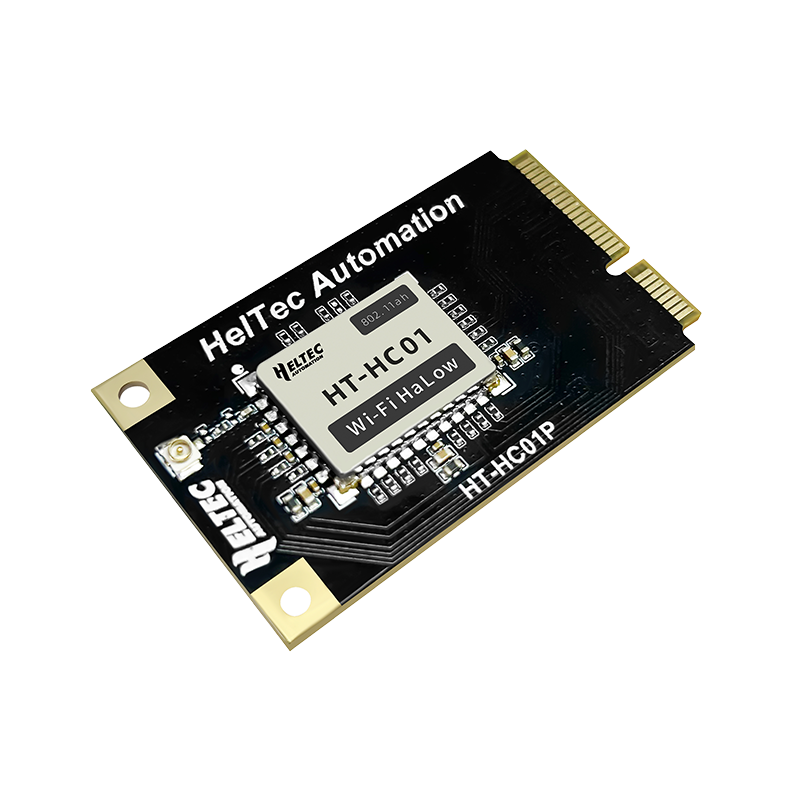

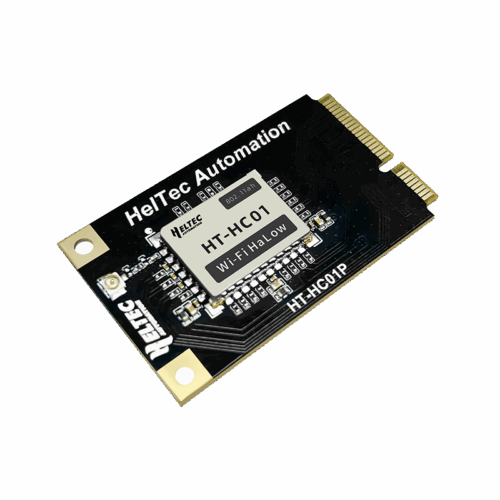

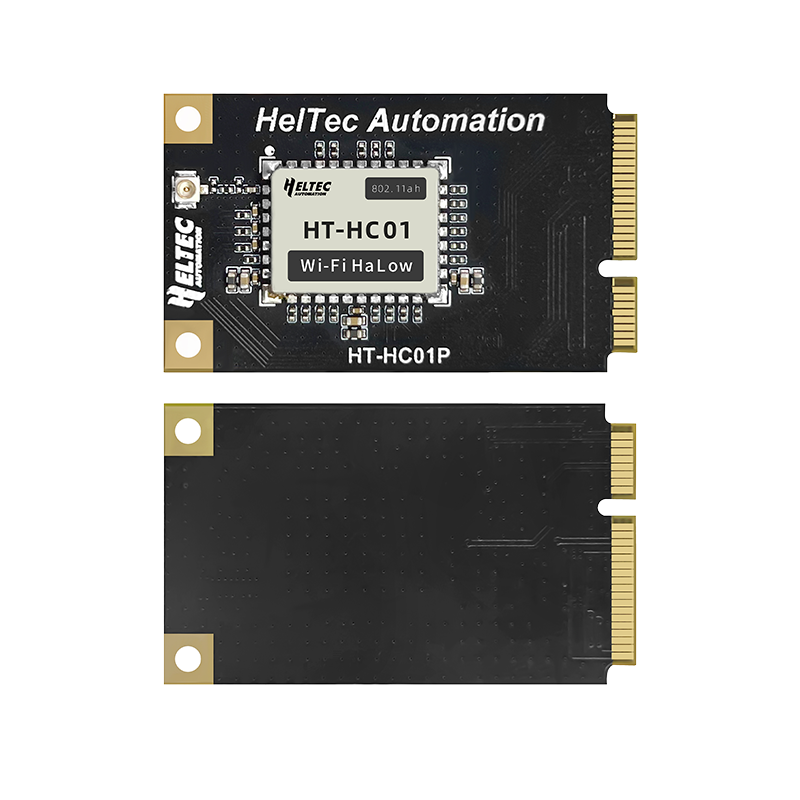

HT-HC01P is a Wi-Fi HaLow module with mini PCIe interface, which operates in 902 – 928MHz, with maximum data rates of 32.5Mbps and up to 1-2km transmission range. It meets IEEE 802.11ah standard, which is specifically designed for battery-operated devices, allowing them to remain in longer sleep and idle states without frequent wake-ups. This significantly reduces power consumption and extends the device’s battery life.
Main Features
- Long-range transmission, up to 1km or and further within the visual distance.
- Channel bandwidth options of 1/2/4/8 MHz.
- Support Sub-1 GHz frequency bands: 902~928 MHz.
- Max output power:21dBm.
- Hibernate mode (internal / external wake).
- 802. 11ah OFDM PHY supporting WFA HaLow certification.
- 802. 11ah MAC supporting WFA HaLow certification.
- High data rate, single-stream max. data rate of 32.5 Mbps @ 8 MHz or 15 Mbps @ 4 MHz channel.
- Wide spectrum of security features.
Specifications
| Parameters | Description |
|---|---|
| Main Chip | MM6108IQ |
| Power Supply | 3.3V |
| HaLow Standard | IEEE 802.11ah |
| Band Width | 1/2/4/8MHz |
| Interface | Mini PCIe |
| Operating temperature | -40 ~ 85℃ |
| Operating humidity | 10%～90%, no-condensing |
| Dimensions | 50.95*30.00*3.75 mm |
| Max. Data Rate | 32.5 Mbps |
Application
Wi-Fi HaLow can seamlessly integrate with traditional Wi-Fi or Ethernet networks and is suitable for most IoT scenarios, especially those requiring long-range high-speed transmission.
- Smart Home and City
- Industrial automation control
- Asset management and tracking
- WiFi-HaLow Gateway and Proximity sensors
- Old device Information upgrade
- Wi-Fi/Ethernet/Wi-Fi_HaLow extension and bridging
- Rural internet access and LAN construction
- WiFi HaLow device development
- Remote camera monitoring and Network blind spot coverage
- Digital transformation of legacy equipment
Description

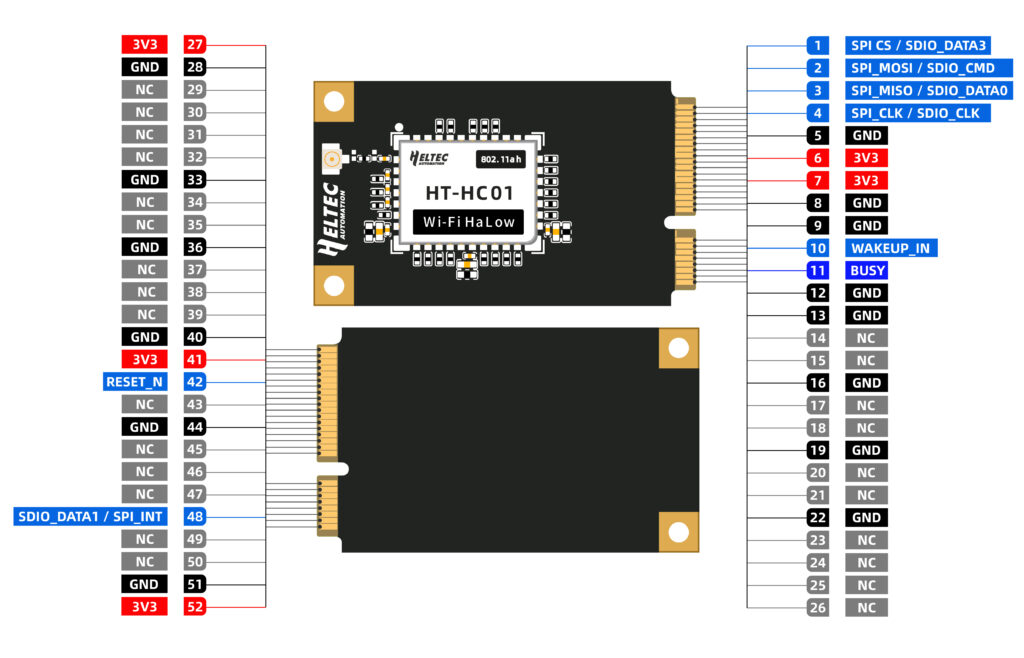

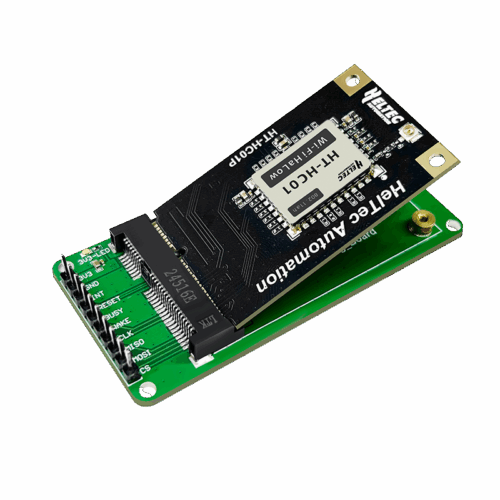

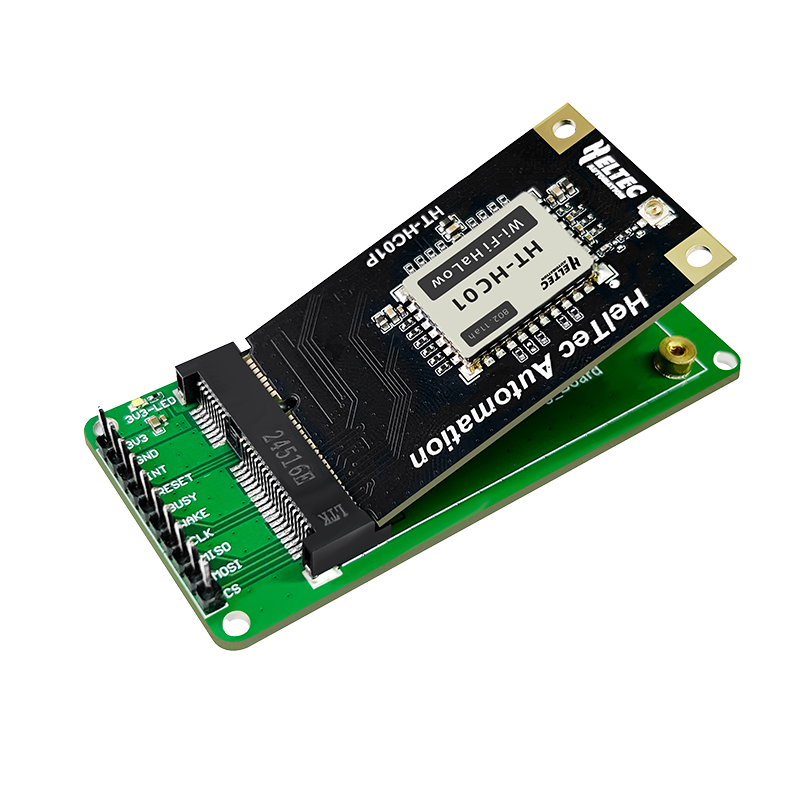

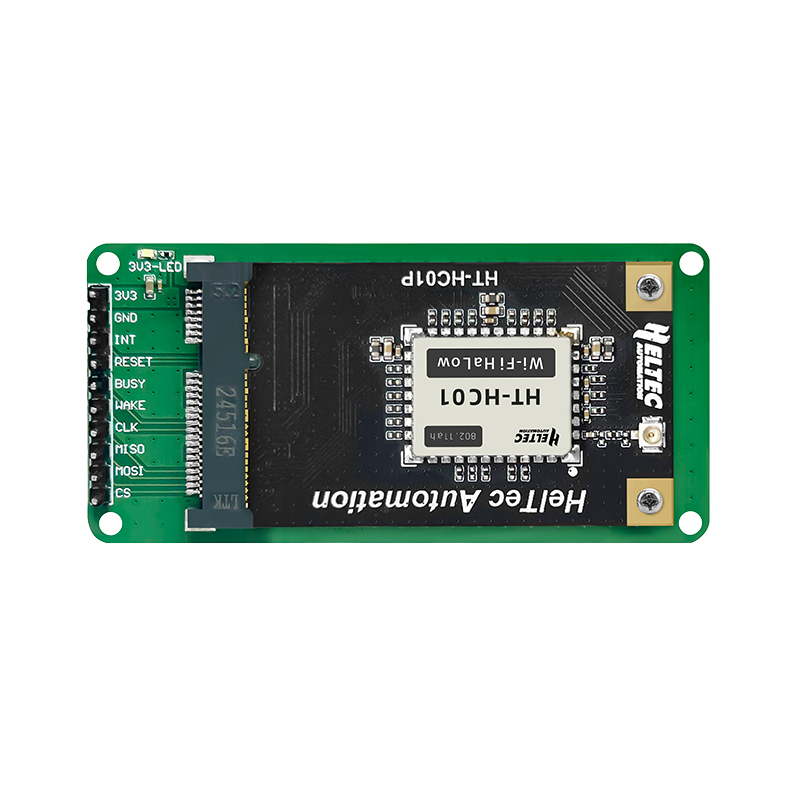

Pin Map
High light

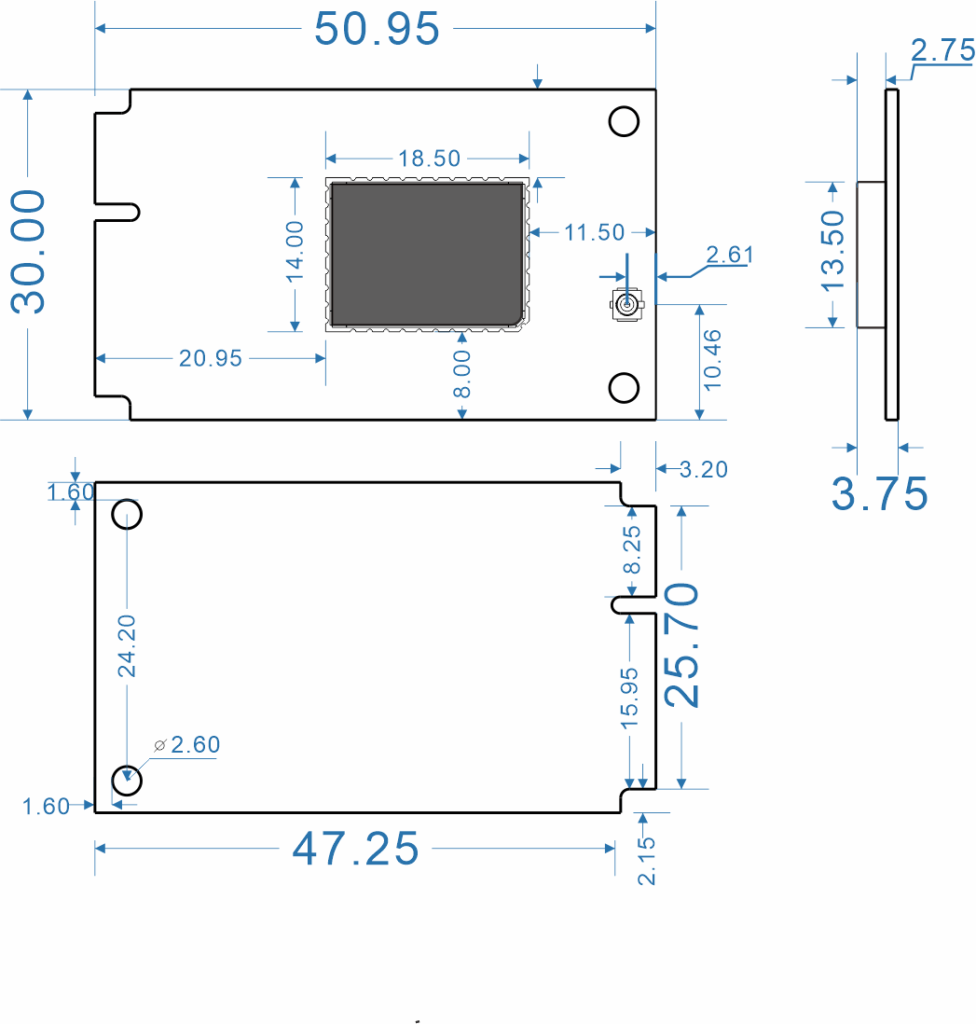

Dimensions
FAQ
When selecting a CPU host to interface via SPI to the MM6108 module, consider the following recommendations to achieve the best throughput:
- The host should support level-triggered interrupts.
- The host should support full-duplex SPI mode.
- The host should support DMA backed transactions on the SPI bus.
All unused digital IO pins must be pulled up or down to ensure they do not float. Failure to do so will result in a higher leakage current on the VDDIO supply.
Morse Micro
We recommend using the official Morse Micro development environment. Please ensure to select the “bcf_mf08551.bin” configuration file, as other configuration files may result in abnormal RF power output.
Docs & Resource
- [Docs] — User Manual
- [Attachment] — Schematic diagram
- [Attachment] — Datasheet
- [Resource] — Related Resources
- [Resource]– SDK
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| HT-HC01P | x1 |
Characteristics
| Weight | 35 g |
|---|---|
| Dimensions | 5.8 × 2.286 × 0.968 cm |
