Summary

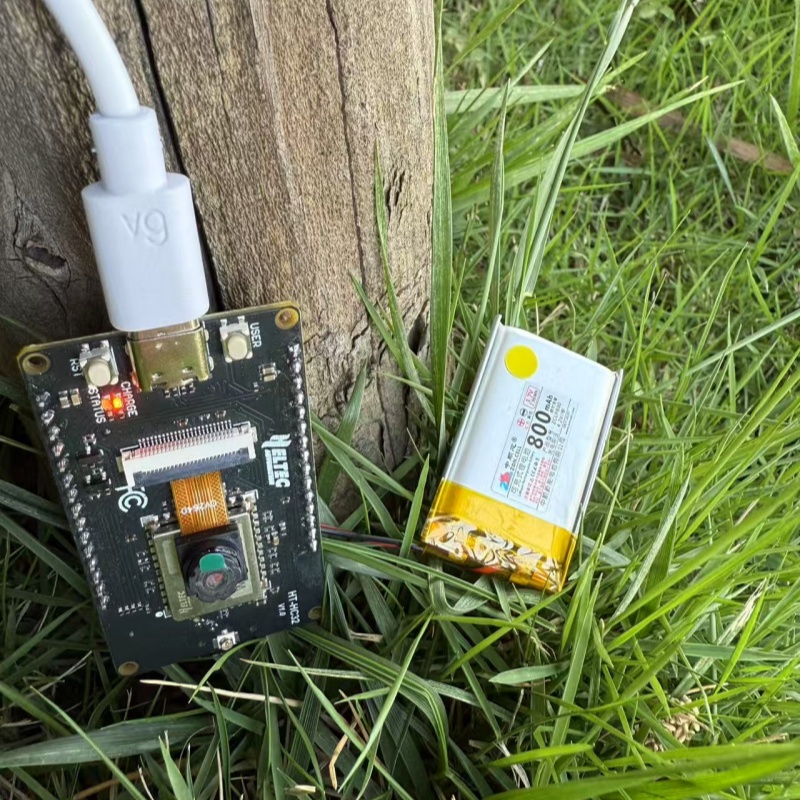

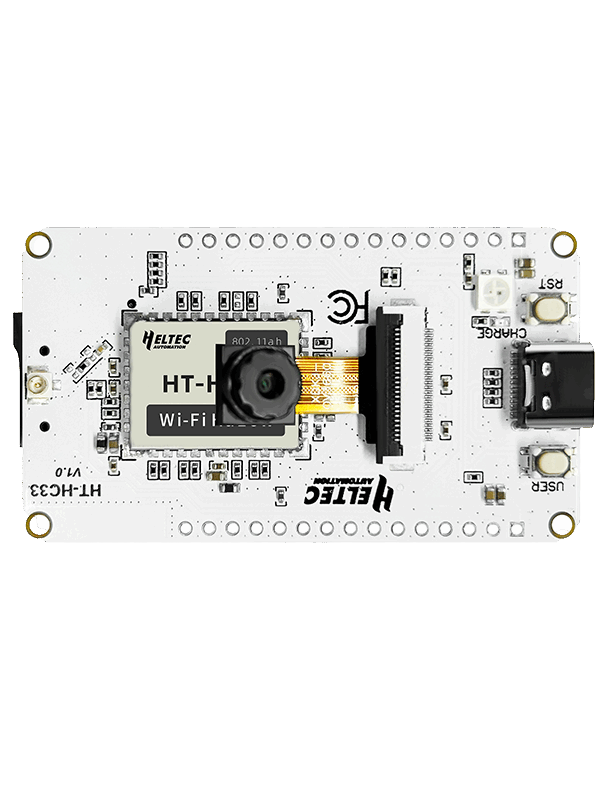

HT-HC32 is a development board with integrated camera, based on the ESP32-S3 MCU and Wi-Fi HaLow module.It is designed for long-range, high-speed wireless communication. With support for transmission distances of over 1 km and speeds of up to 32 Mbps, it is ideal for IoT applications that require reliable, high-performance connectivity.
The module features a low power consumption design with excellent signal penetration, ensuring robust performance even in challenging environments. The integrated camera has a 200-pixel wide-angle, which supports advanced image processing functions such as auto exposure control, auto gain control, image scaling, and image compression.
Main Features
- The MCU is the ESP32-S3, and the Wi-Fi HaLow module is HT-HC01.
- Long transmission range, up to over 1~2km.
- Fast transmission speed, with a maximum of 32 Mbps.
- Low power consumption design with strong penetration.
- Integrated 200-pixel wide-angle camera, supporting auto exposure control, auto gain control, image scaling, image compression, and more.
- Supports the Arduino development environment.
- Integrated SD card slot for easy local deployment and data storage.
- Integrated CP2102 USB-to-serial chip, convenient for program downloading and debugging information printing.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Integrated Wi-Fi, Bluetooth, and Wi-Fi HaLow three network connections, with onboard 2.4 GHz patch antenna for Wi-Fi and Bluetooth, and reserved IPEX (U.FL) interface for Wi-Fi HaLow.
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charging and discharging management, overcharge protection, battery power detection, USB/battery power automatic switching).
Specifications
| Parameters | Description |
|---|---|
| MCU | ESP32-S3R8 |
| Wi-Fi HaLow Module | HT-HC01 |
| Serial port chip | CP2102 |
| Wi-Fi HaLow | IEEE 802.11ah |
| Memory | 384KB ROM; 512KB SR; 16KB RTC SRAM; 8M PSRAM, 16MB SiP Flash |
| Interface | HaLow ANT(IPEX1.0); 2*15*1.27 Header Pins, 24P_0.5mm FFC connector(camera), USB TypeC, SH1.25-2 battery interface, Micro-SD card holder |
| Power Supply | 5V@USB, 2.7~4.2V@battery |
| Operating temperature | -30 ~ +85℃ |
| Operating humidity | 10%～90%, no-condensing |
| Dimensions | 60.00*33.50*7.10mm3(Unincluded Camera) |
Application
Wi-Fi HaLow can seamlessly integrate with traditional Wi-Fi or Ethernet networks and is suitable for most IoT scenarios, especially those requiring long-range high-speed transmission.
- Smart Home and City
- Industrial automation control
- Asset management and tracking
- WiFi-HaLow Gateway and Proximity sensors
- Old device Information upgrade
- Wi-Fi/Ethernet/Wi-Fi_HaLow extension and bridging
- Rural internet access and LAN construction
- WiFi HaLow device development
- Remote camera monitoring and Network blind spot coverage
- Digital transformation of legacy equipment
Description
Pin Map
High light
Board Dimension
Camera Dimension
FAQ
Each IO pin is preconfigured with IO_MUX functionality, which means you can use any GPIO as I2C or SPI pins. You just need to define these pins in your code. However, it’s important to note that once a pin is used, it may affect other functions associated with that pin.
include Wi-Fi, Bluetooth, and Wi-Fi HaLow, with an onboard 2.4 GHz patch antenna for Wi-Fi and Bluetooth, as well as a reserved IPEX (U.FL) interface for the HT-HC01 Wi-Fi HaLow module.
Docs & Resource
- [Docs] — User Manual
- [Attachment] — Datasheet
- [Attachment] —HT-HC32/Schematic_diagram
- [Resource] — Heltec ESP32 HaLow Development Framework
- [Resource] — Installation and Getting Started Guide.
- [Resource] — Related Resources
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| HT-HC23 | x1 |
| A camera | x1 |
| 2.54 *13 Header Pin | x2 |
| SH1.25×2 Battery Connector | x1 |
Characteristics
| Weight | 35 g |
|---|---|
| Dimensions | 5.8 × 2.286 × 0.968 cm |
| Camera specifications | Standard Edition, OV2640 2 million pixel regular model, OV2640 2 million pixel out of plane wide-angle 120 degrees |
