Description
Characteristics
No Reviews
Description
Specifications
| Parameters | Description | Internal conductor material | Silverplated copper wire |
|---|---|
| Internal conductor construction | 7/0.083 |
| Nom.Dia | 0.249±0.02 |
| Insulation layer material | FEP |
| Nominal outer diameter of insulation layer | 0.735±0.02 |
| External conductor material | Copper plastic foil |
| Outer Conductor Nom.Dia | 0.759±0.02 |
| Outer Conductor Coverage Ratio(%) | 90±5 |
| Jacket Material | FEP |
| Jacket Nom.Dia(mm) | 115±0.05 |
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| 0.1 m IPEX to N-Type Female Antenna Adapter Cable | x1 |
Characteristics
| Weight | 4 g |
|---|---|

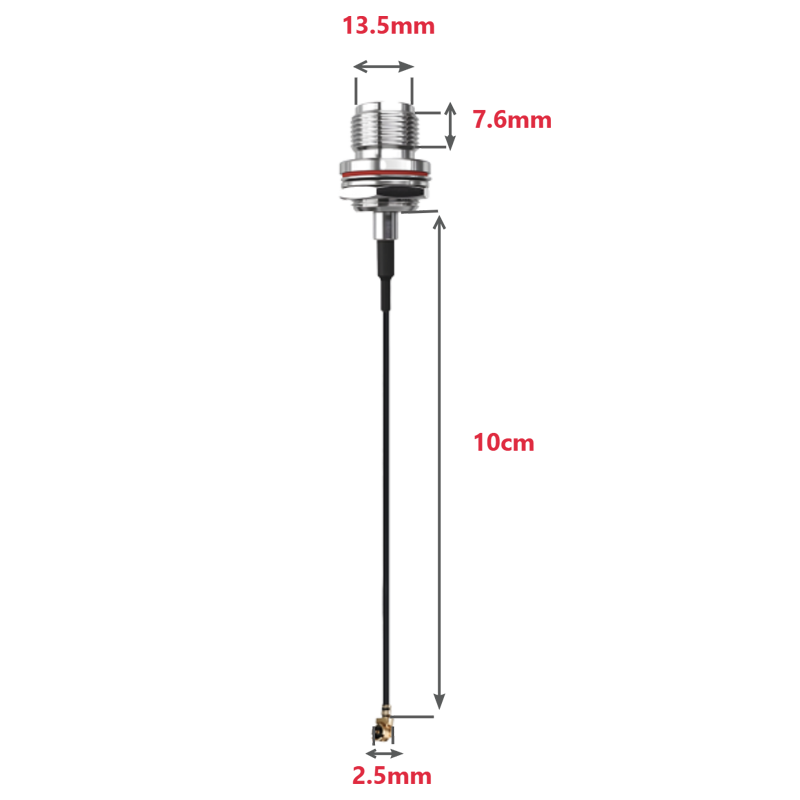

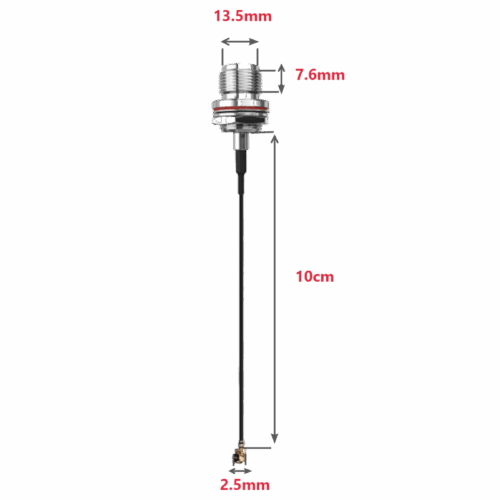

| Dimensions | 5 × 0.9 × 0.9 cm |
No Reviews

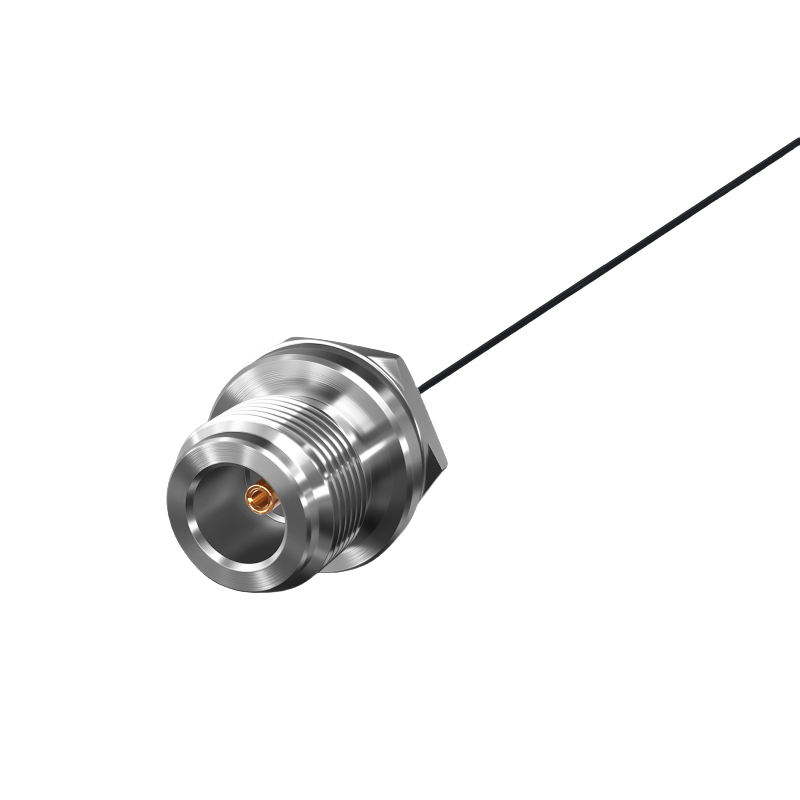

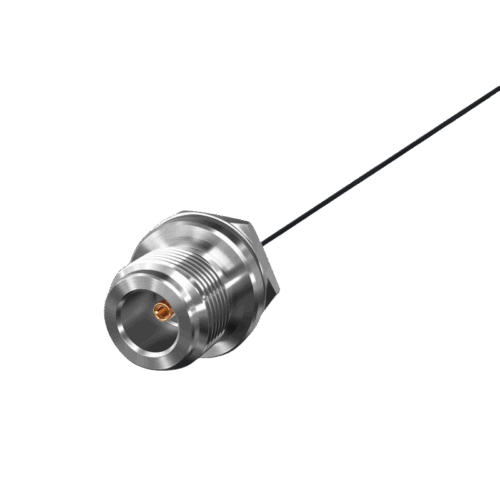

0.1 m IPEX(U.FL) Ver.1 to N-Type Female Antenna Adapter Cable
What's this?
Suitable for MeshSloar.
$2.99
Reviews
There are no reviews yet.
