Description
Summary

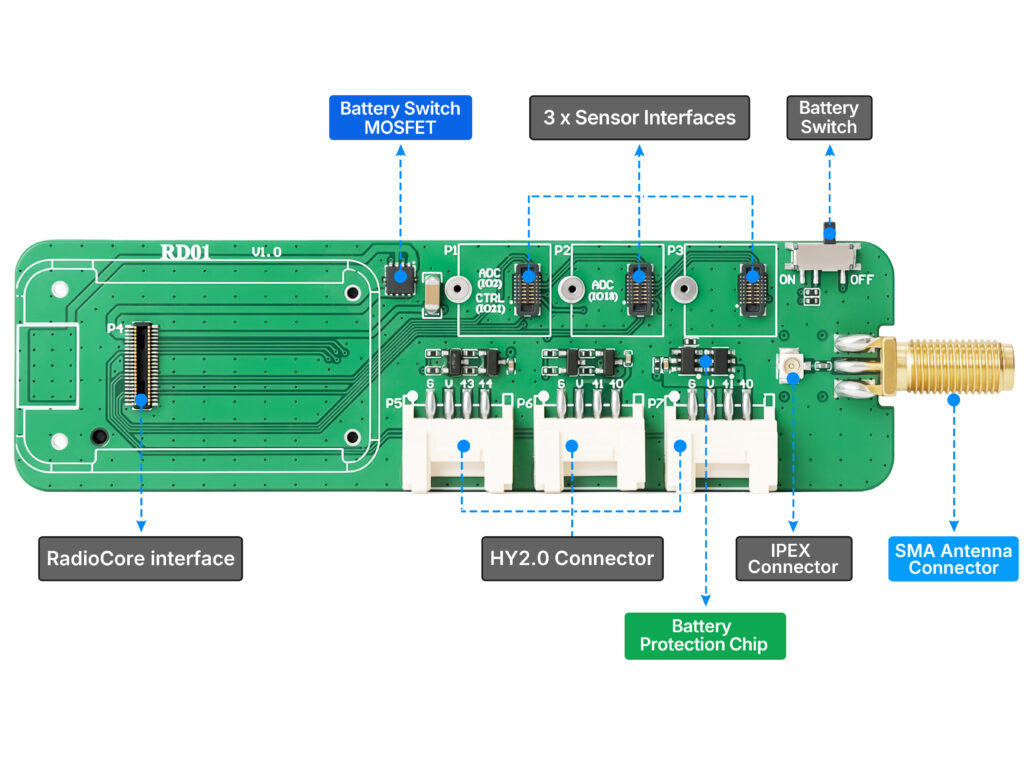

RD01 is a carrier board for RC32. It integrates an 18650 battery holder, 3 B2B sensor interfaces and 3 4-pin I2C interfaces. It enables easy integration of various sensors and is ideal for a wide range of sensor applications such as Home Assistant.
Description
| Parameters | Description |
|---|---|
| Enclosure Material | PLA(3D-printed) |
| Battery: | 18650 Li-ion |

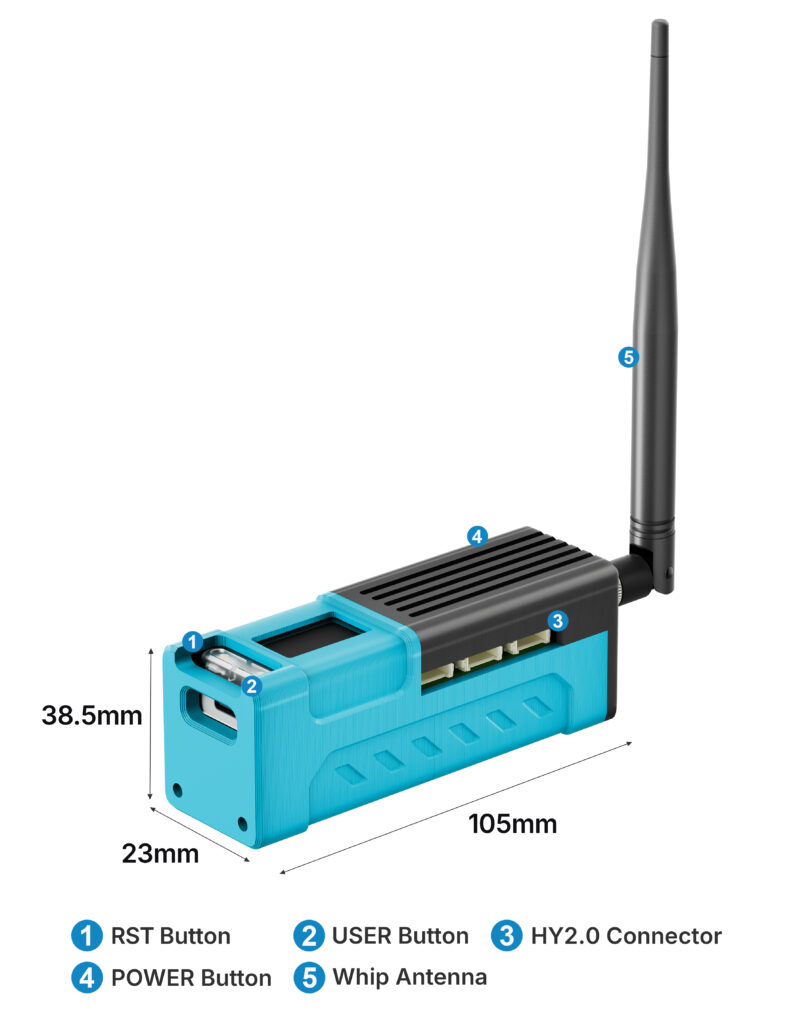

| Dimensions | 105×23×38.5mm |
| Interface | B2B x 3, 2.0-4P Connector |
| Antenna Connector | SMA female |
| Compatible MCU | RC32, RC52 |

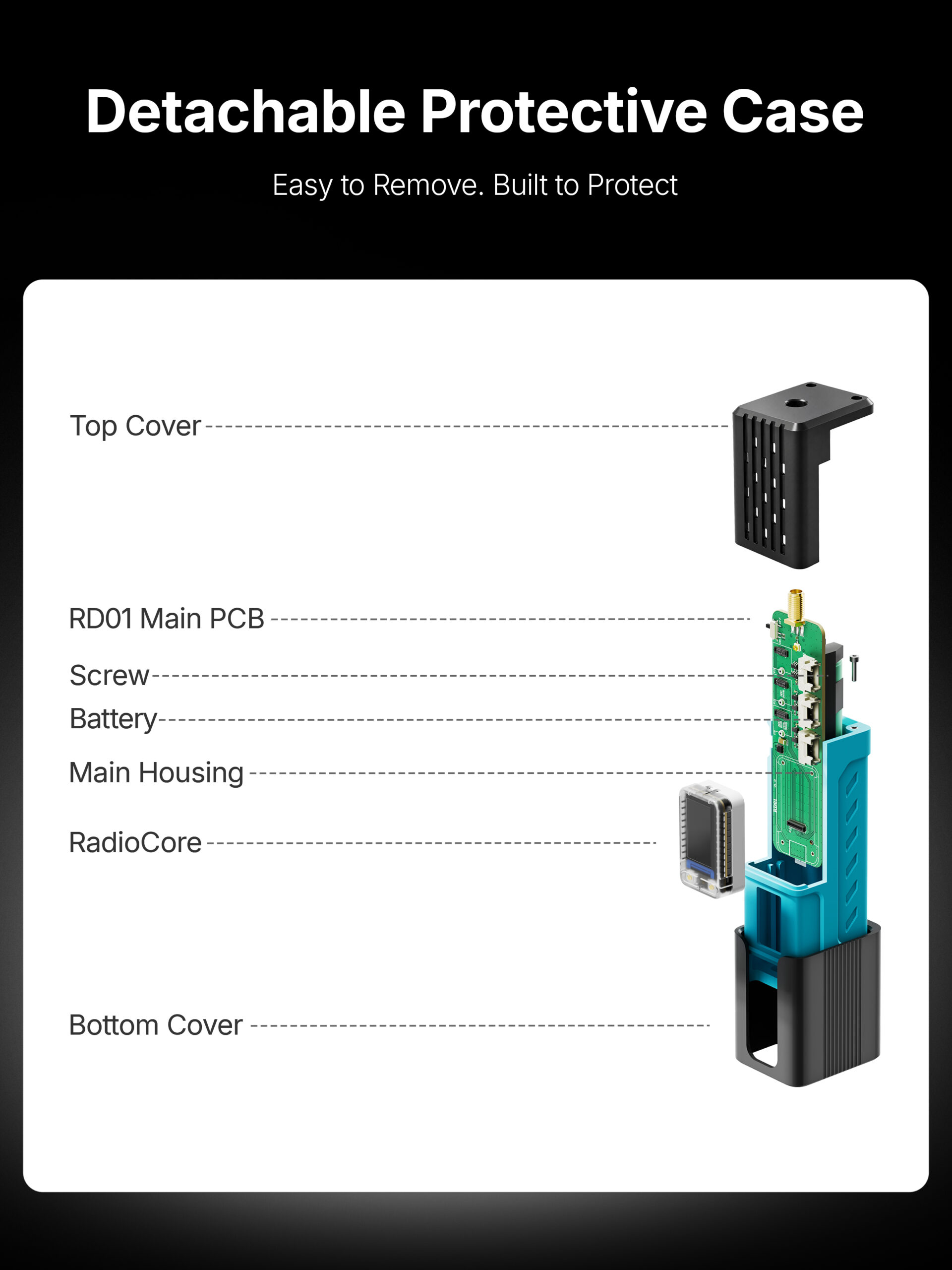

Structure
FAQ
RC32 itself supports Meshtastic and MeshCore. However, pin conflicts will occur with sensor pins. Therefore, it is not recommended, unless you do not intend to connect any sensors.
Docs & Resource
- [Attachments] — Module Datasheet
- [Attachments] — Module chematic_Diagram
- [Attachments] — Base Board chematic_Diagram
- [Documents] — User Manual Document

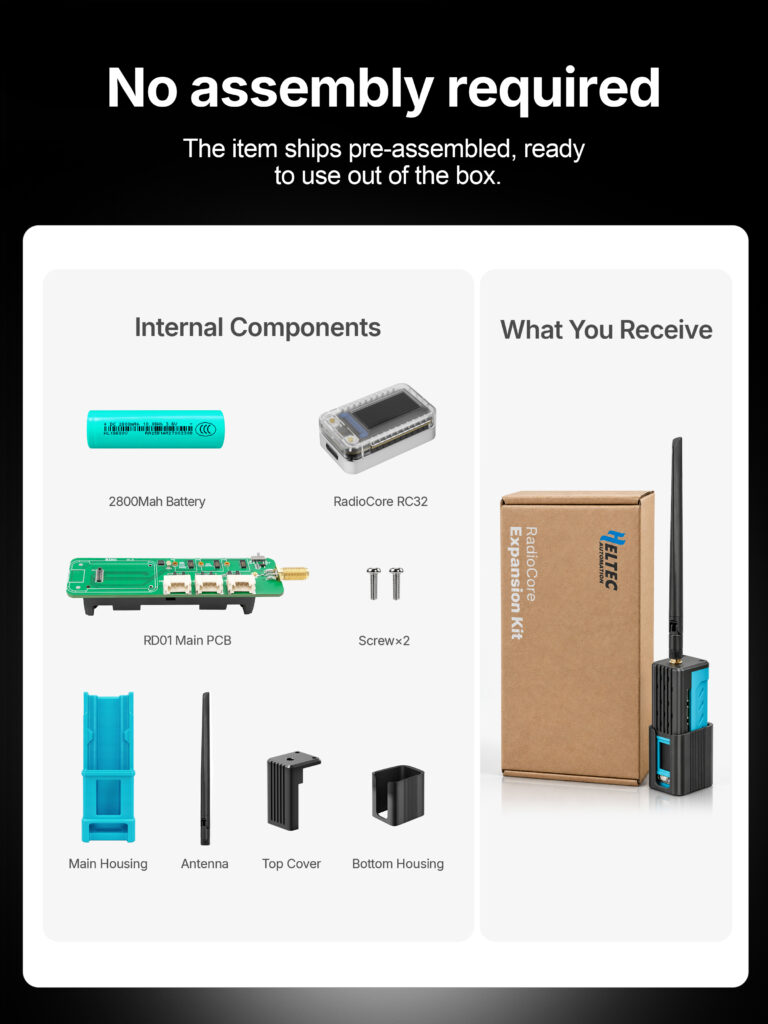

Packing List
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| RadioCore | x1 |
| LoRa Antenna | x1 |
| Battery | x1 |
| RD-GA01 Base Board | x1 |
| TFT Display | x1 |
Characteristics
| Weight | 55 g |
|---|---|
| Dimensions | 7.5 × 7.5 × 2.6 cm |
| RadioCore | RC32-62, RC52-62 |
| LoRa Band | 433MHz, 863~870MHz, 902~928MHz |
| TX Power | 21±1 dBm, 28±1 dBm |
No Reviews
RD01, Sensor Extension Kit for RC32
What's this?
RD01 is a carrier board for RC32. It integrates an 18650 battery holder, 3 B2B sensor interfaces and 3 4-pin I2C interfaces.
