Description
Summary
RS-CP01 is compatible with the RC32-68 WiFi HaLow module. It integrates a PIR sensor and a 120° wide-angle camera, enabling users to quickly deploy various low-power remote monitoring solutions.
Note:
This Kit does not include a battery and requires power supply via USB‑C.
Description

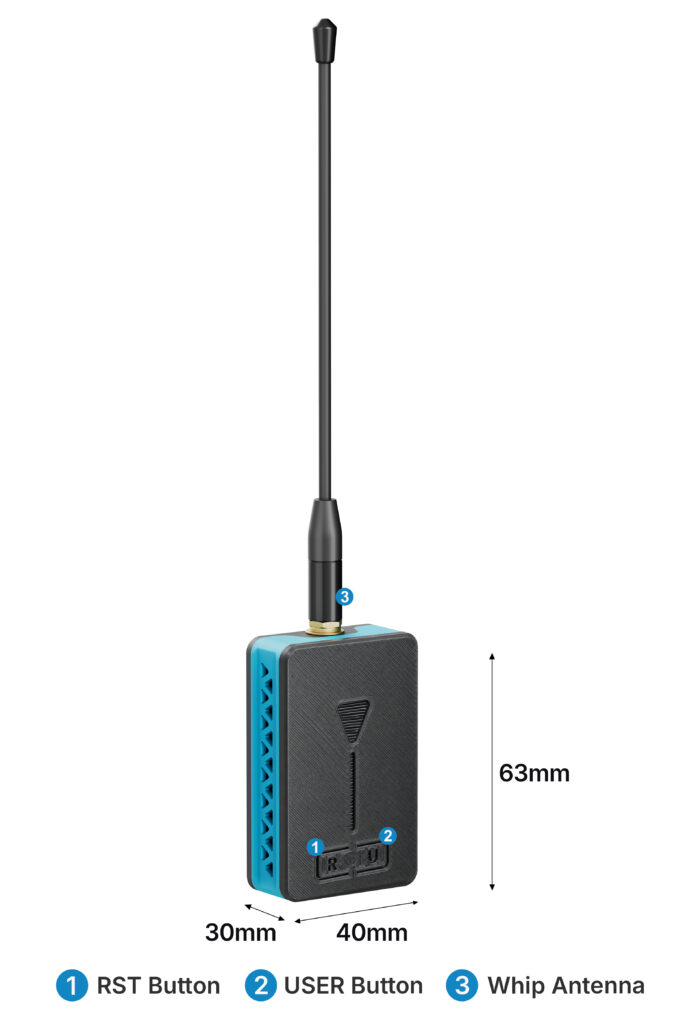

Structure
| Parameters | Description |
|---|---|
| Enclosure Material | PLA |
| Process | FDM |
| PIR Sendor | RDB223 |
| Camera | OV3660, 21mm, 120° Wide-Angle |
| Antenna | Specification |
| Dimensions | 30×40×63mm |
| Compatible MCU | RC32-68 |
FAQ
- If your main board is RC32, enter bootloader mode with the steps below:Hold down the USER button, press the R button once, then release the USER button. After flashing, press the R button to reboot the device.
- If your device is RC52, double-press the R button to enter DFU mode. Simply drag and drop the firmware file to the pop-up drive
Docs & Resource
- [Attachments] — Sensor Datasheet
- [Attachments] — Schematic_Diagram
- [Documents] — User Manual Document
- [Resource] — Board Manager and WiFi HaLow Library
- [Resource] — RadioCore Expansion Peripherals Library: RadioCore series hardware
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| RadioCore | x1 |
| LoRa Antenna | x1 |
| RS-CP01 Base Board | x1 |
| PIR Sensor | x1 |
| Camera | x1 |
Characteristics
| Weight | 80 g |
|---|---|
| Dimensions | 7.5 × 7.5 × 2.6 cm |
| RadioCore | RC32-68 |
| FREQ | 863-870MHz, 902-928MHz |
| TX Power | 16 dBm, 28±1dBm |
No Reviews
RS-CP01 PIR & Camera Expansion Kit
What's this?
RS-CP01 is compatible with the RC32-68 WiFi HaLow module. It integrates a PIR sensor and a 120° wide-angle camera
$20.90
