Description

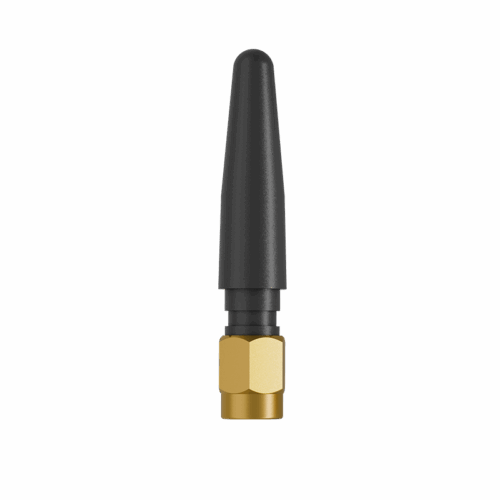

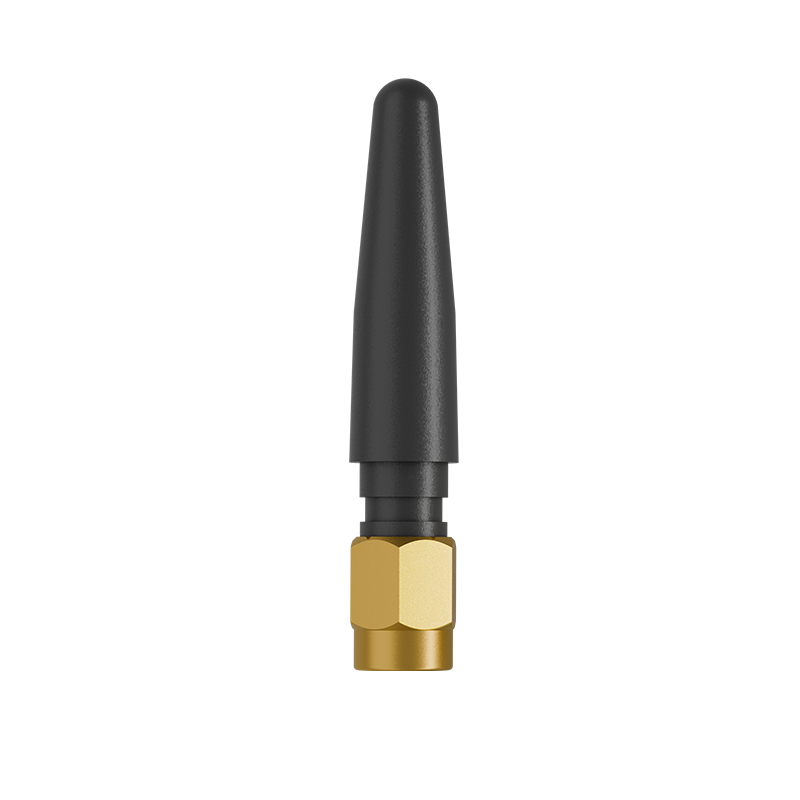

GT-800 Whip Antenna Specifications
| Parameters | Description | FreqRange | 902-928MHz |
|---|---|
| Antenna Gain | 4 dBi |
| VSWR | ≤1.5 |
| Impedance | 50 Ohm |
| Max. Power | 10W |
| Lightning Protection | DC Ground |
| ovality | ≤2dB |
| Operation Temperature | – 40 °C ~ + 55 °C |
| Weight | 14g |

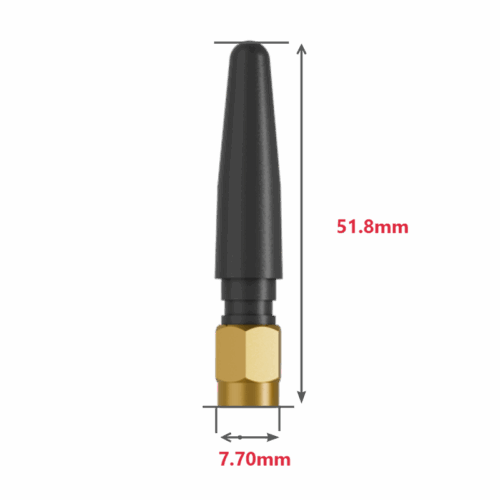

Glue rod Antenna Specifications
| Parameters | Description | S.W.R. | <= 2.0 |
|---|---|
| Antenna Gain | 3 dBi |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Material of Radiator | Cu |
| Material of Plastic | Body: PC+ABS |
| Connector Pull Test | >= 2 Kg |
| Operation Temperature | – 40 °C ~ + 65 °C |
| Storage Temperature | – 40 °C ~ + 80 °C |

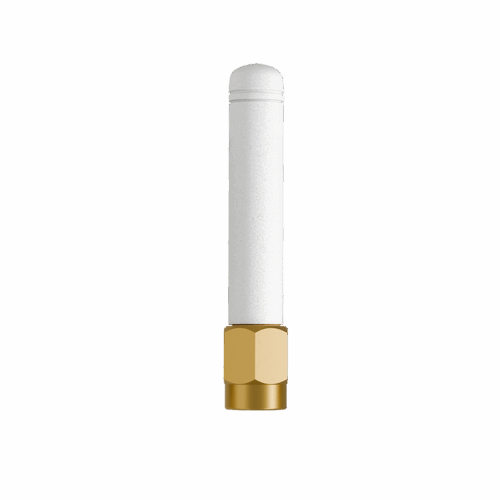

2.4G WiFi Antenna Specifications
| Parameters | Description | Impedance | 50Ω |
|---|---|
| Antenna Gain | 1-3 dBi |
| Shell material | Environmentally friendly TPEE |
| VSWR | ≤1.92 |
| Interface type | SMA internal needle |

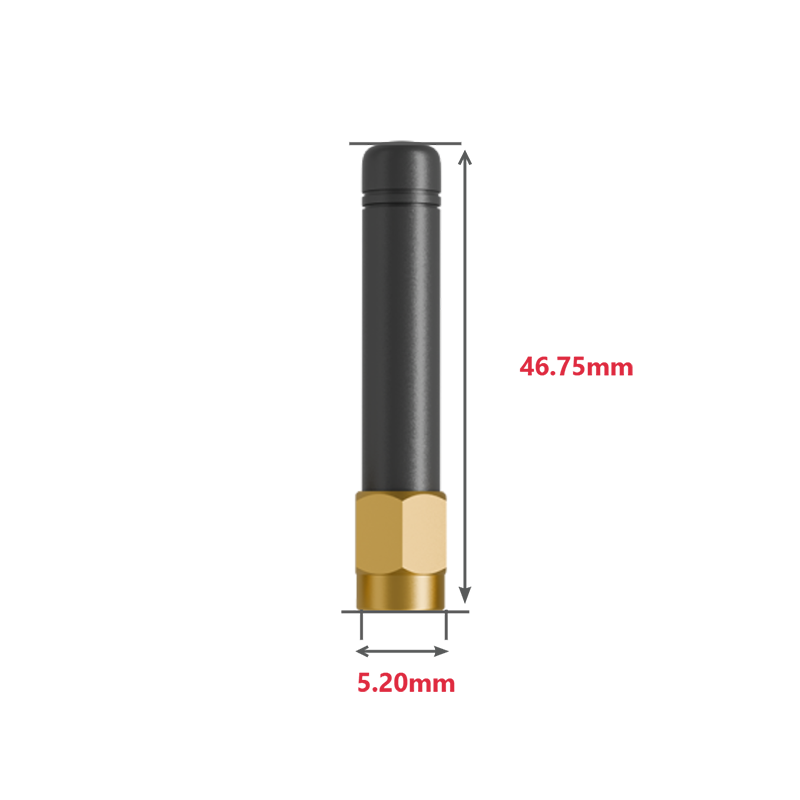

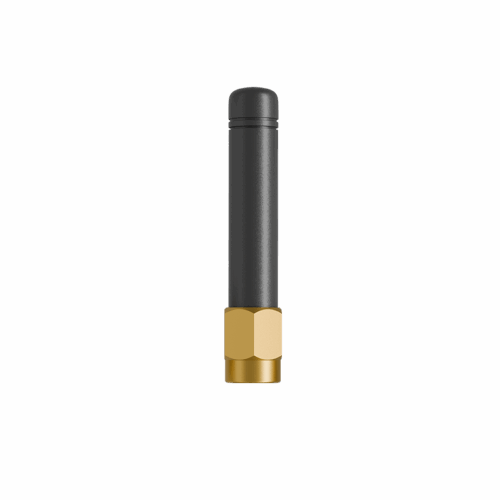

4G WiFi Antenna Specifications
| Parameters | Description | Impedance | 50Ω |
|---|---|
| Antenna Gain | 3.5dBi |
| polarization | vertical |
| VSWR | ≤1.5(SMA) |
| Maximum Power | 50W |
| Operation temperature | – 40 °C ~ + 85 °C |
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| SMA Antenna | x1 |
Characteristics
| Weight | 4 g |
|---|---|
| Dimensions | 5 × 0.9 × 0.9 cm |

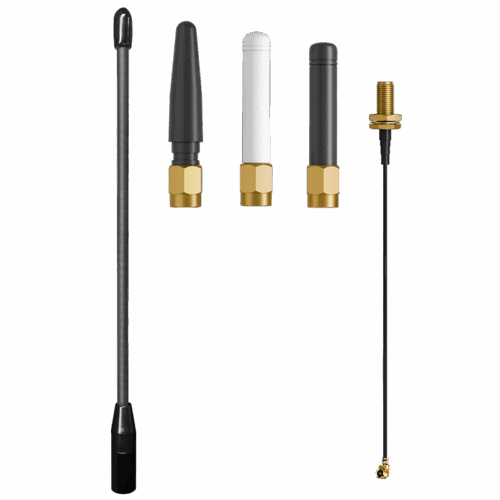

| Antenna Type | GT-800 902-928, 915 MHz Whip Antenna, Glue rod antenna, 2.4GHz WiFi antenna, 4GHz WiFi antenna |

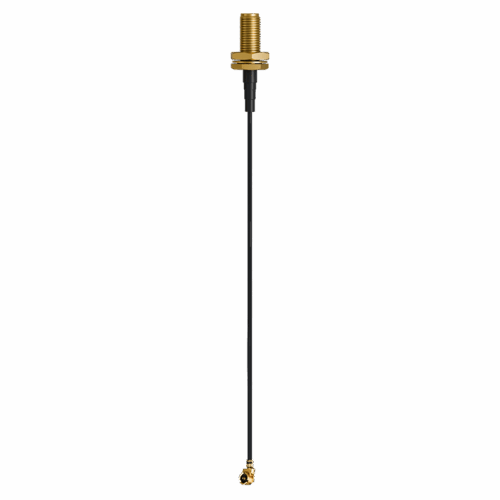

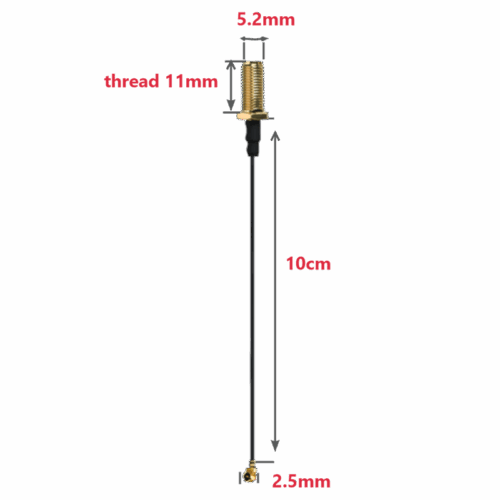

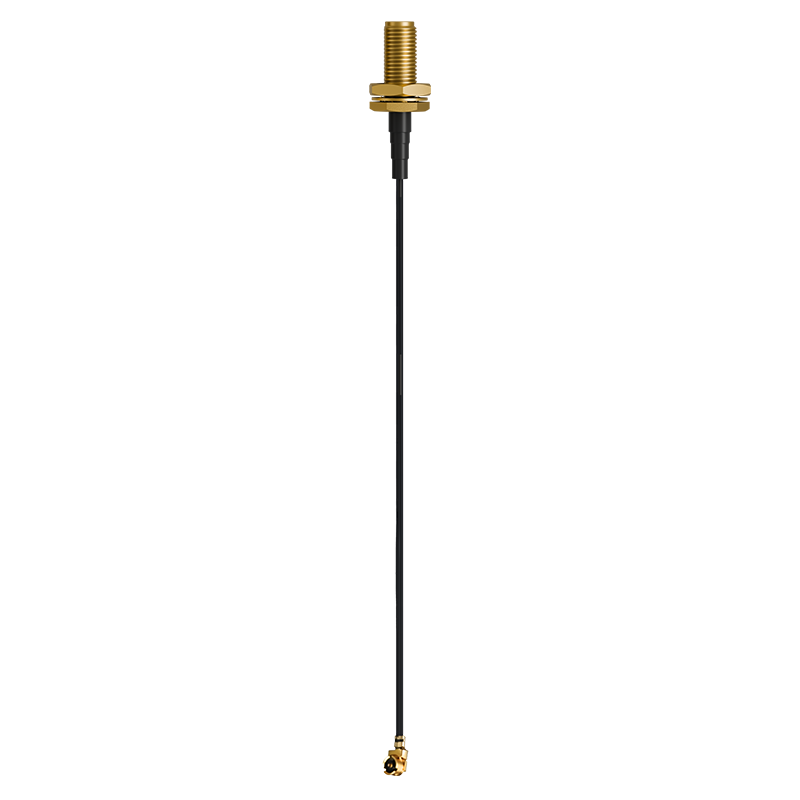

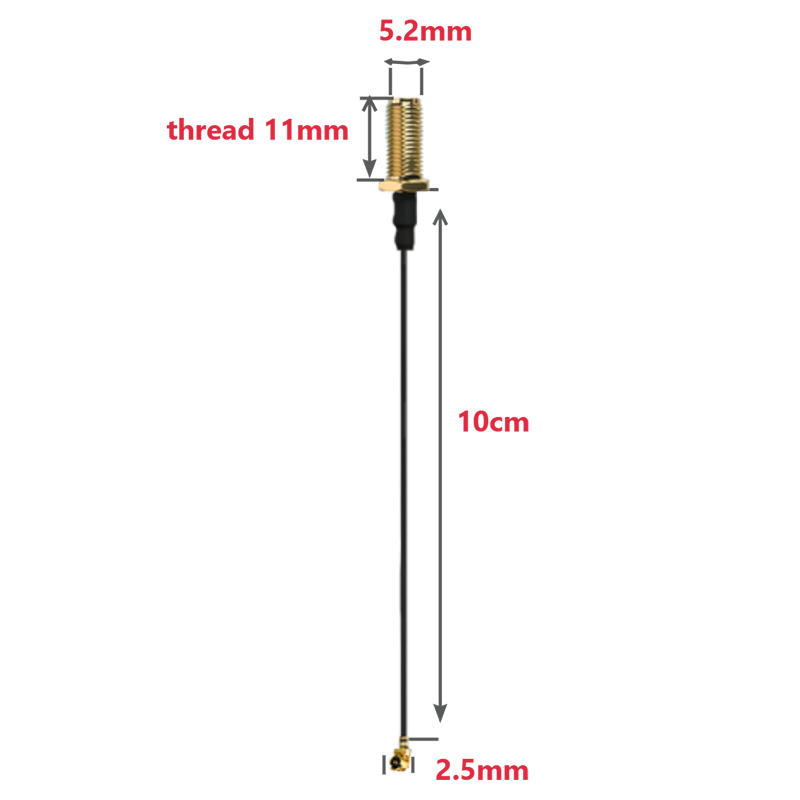

| IPEX (U.FL) Ver.1-SMA Wire | Yes, No |
No Reviews
SMA Antenna
What's this?
Antenna compatible with SMA interface.
Price range: $0.70 through $5.10
