Description
Summary

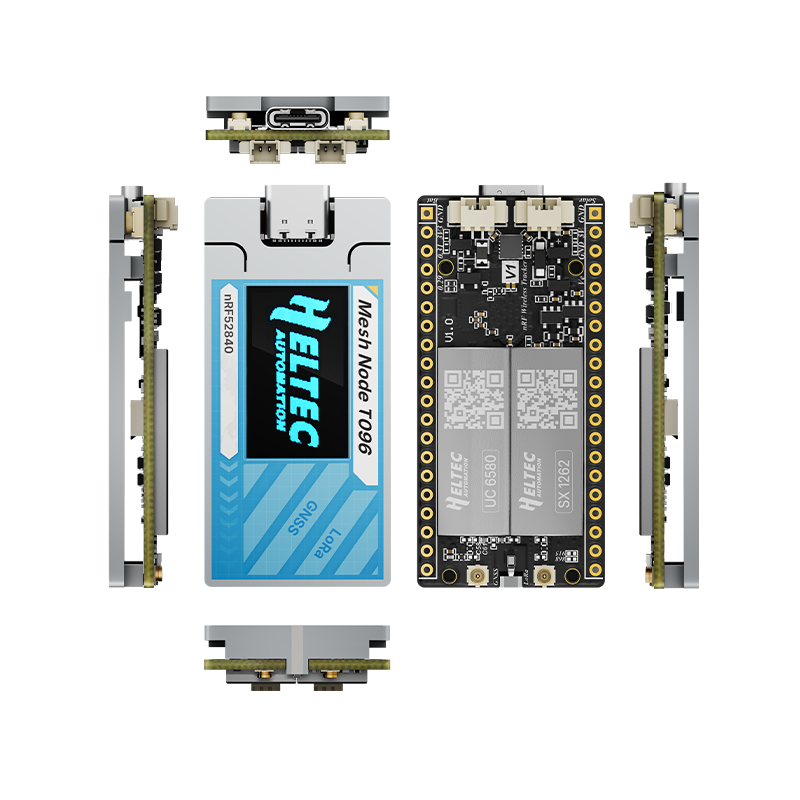

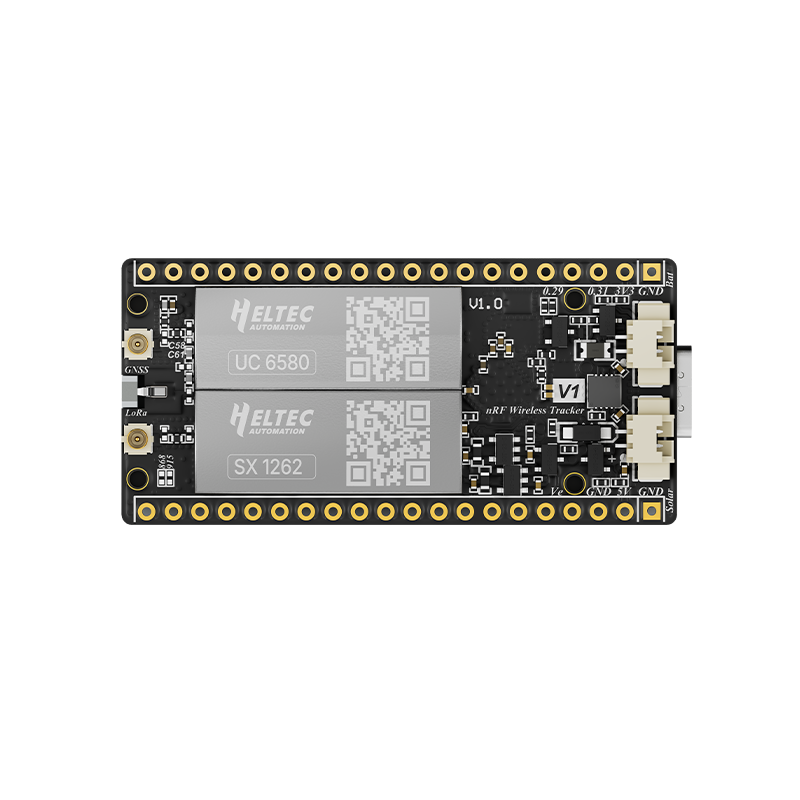

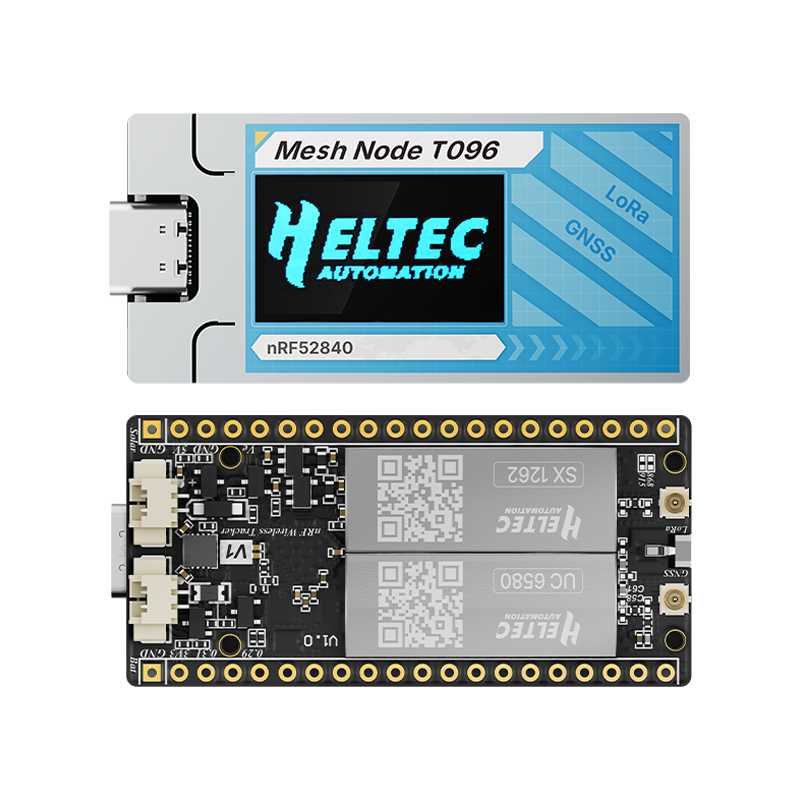

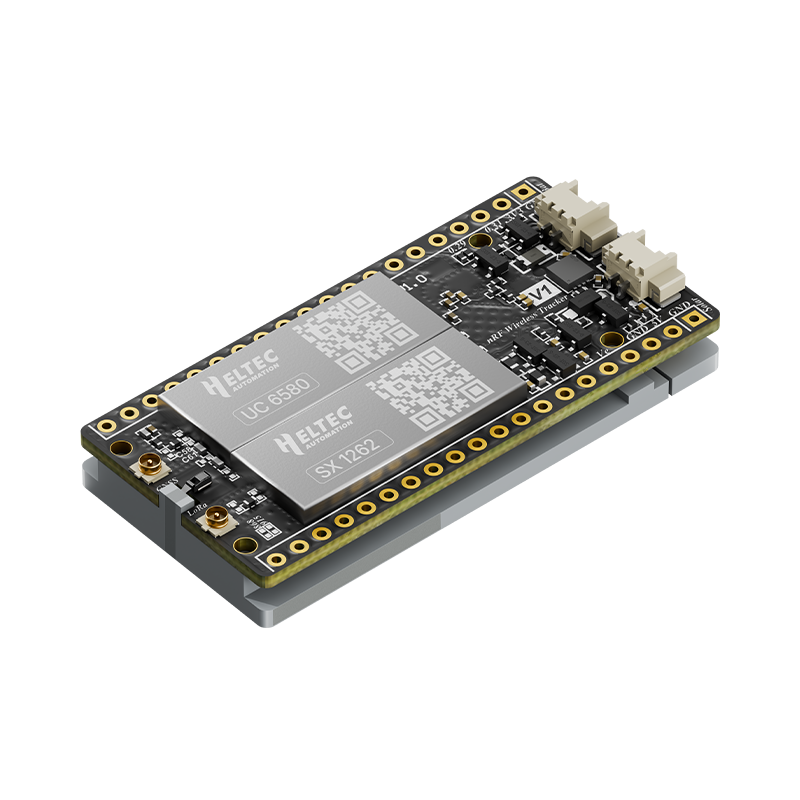

Mesh Node T096 is a low-power development board that integrates Bluetooth, LoRa, and GNSS. At its core, the nRF52840 MCU provides ample processing power and Bluetooth connectivity, while the SX1262 LoRa transceiver—integrated with PA—delivers transmit power of 28±1 dBm, ensuring exceptional range and link reliability. The UC6580 GNSS chip enables precise global positioning, making the device ideal for decentralized mesh networks, asset tracking, and remote sensing.
Utilizing Laser Direct Structuring (LDS) technology for both GNSS and Bluetooth antennas, the T096 achieves a compact, durable, and highly efficient antenna solution. Engineered for low-power operation, it is perfectly suited for battery-powered deployments. Fully supported by the Arduino development environment and compatible with open-source mesh projects such as Meshtastic and MeshCore, the Mesh Node T096 offers developers and enthusiasts a versatile, ready-to-use platform for building resilient, scalable mesh networks.
Main Features
- Supports Bluetooth, LoRa, and GNSS communication.
- Ultra-low power consumption.
- Maximum output power of 28±1dBm, and the LNA can be bypassed.
- Supports GPS, GLONASS, BDS (BeiDou), Galileo, NAVIC, and QZSS.
- Integrated lithium battery management system (charge/discharge management, overcharge protection, battery power detection, automatic switching between USB and battery power).
- USB-C interface with comprehensive voltage regulation, ESD protection, short circuit protection, and RF shielding.
- Supports the Arduino development framework, providing LoRa/LoRaWAN examples.
- Compatible with Meshtastic and MeshCore.
Description
Specifications
| Parameters | Description |
|---|---|
| MCU | nRF52840 |
| LoRa Chip | SX1262 |
| GNSS Chip | UC6580(L1+L5) |
| Frequency | 863~928MHz |
| Max. TX Power | 28±1dBm |
| Bluetooth LE | Bluetooth 5, Bluetooth mesh |
| Hardware Resource | USB 2.0, 2 x LEDs, 2 x Buttons, 4 x SPI, 2 x TWI, 2 x UART, 4 x PWM, QSPI, I2S, PDM, QDEC Etc. |
| Interface | Type-C USB, 1.25-2P lithium battery connector, 1.25-2P solar panel connector, LoRa ANT (IPEX1.0), GNSS ANT (IPEX1.0), 2 x 13 x 2.54 Header Pin |
| Power Supply | USB-C 5V Lithium battery 3.7V( 3.3-4.2V ) |
| Operating Temperature | -20 ~ 70 ℃ |
| Dimensions | 52.00*25.40*10.26 mm |

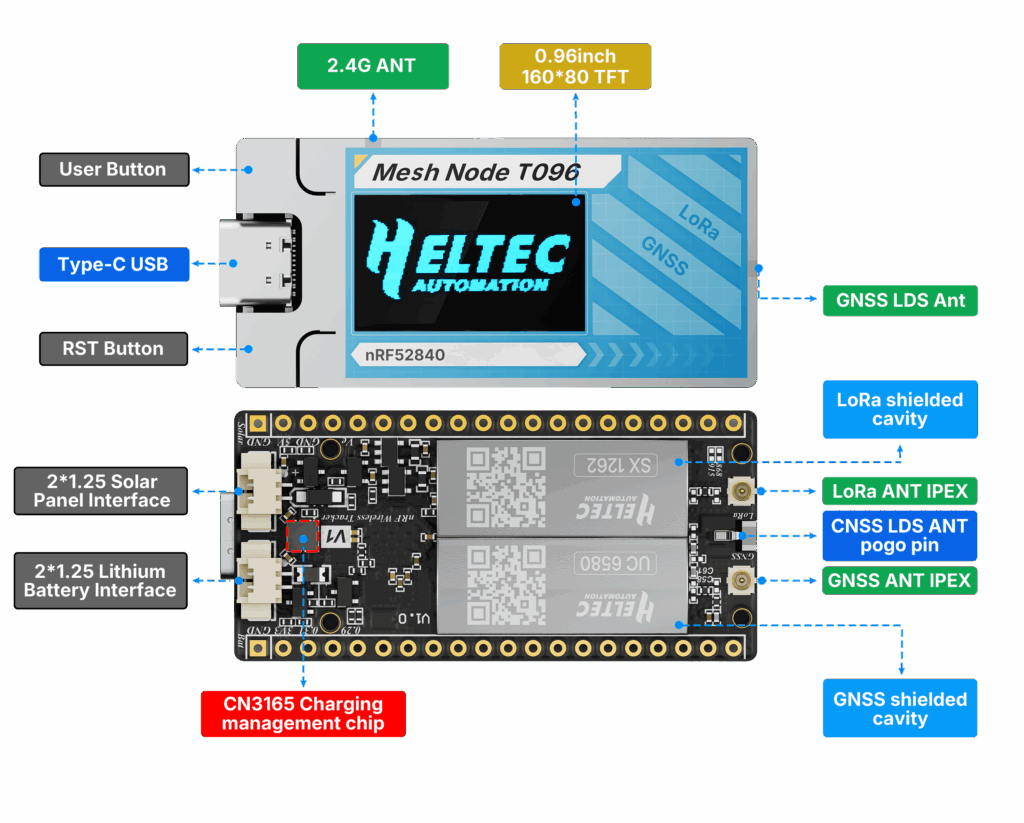

Layout

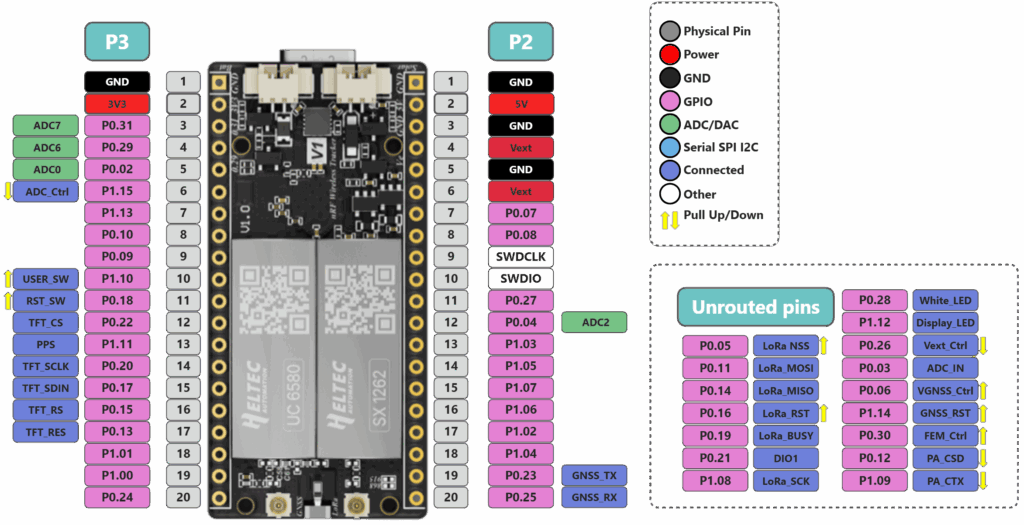

Pin Map
Dimensions
Highlight
Showing Slide 1 of 3
FAQ
GNSS requires open outdoor environments or try with an external antenna.

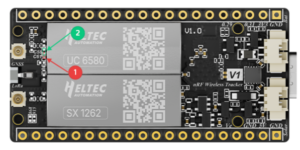

The development board is connected to the LDS antenna by default. If you need to use the IPEX interface to connect an external GNSS antenna, as shown in the figure below, move the resistor in the red box ① half a grid to the position of the green box②.
Please ensure your device is in an open outdoor area (a window is not sufficient).
Keep the screen pointing toward the sky, which will allow the GPS antenna to receive the best signal.
The GPS antenna is located on the plastic bracket next to the screen, so please ensure it is not blocked by metal.
Flash the GPS reset firmware, then re-flash your program. GPS reset firmware link: https://resource.heltec.cn/download/tools/UC6580_Clear_All.ino(1).uf2
In some regions, the first fix may take a long time. Please be patient.
Docs & Resource
- [Resource] — Heltec nRF framework and lib installation
- [Resource] — Hardware Update Logs
- [Resource] —Datasheet
- [Resource] —Schematic_Diagram
- [Resource] —User Manual Document
- [Resource] — Heltec LoRaWAN test server based on SnapEmu
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| Mesh Node T096 | x1 |
| LoRa Antenna | x1 |
| SMA-IPEX1.0 Connector | x1 |
| SH1.25×2 Battery Connector | x1 |
| Pin Header | x2 |
Characteristics
| Weight | 55 g |
|---|---|
| Dimensions | 7.5 × 7.5 × 2.6 cm |
| LoRa Band | 470~510MHz, 863~870MHz, 902~928MHz |
1 Reviews
Mesh Node T096, nRF52840 +GPS+LoRa Node, Meshtastic, MeshCore and LoRaWAN Compatible
What's this?
Mesh Node T096 is an ultra-low-power development board integrating Bluetooth, 28±1dBm LoRa, and GNSS.
$33.90
Dave Jones –
The 28 dBm radio you’ve been waiting for!
The T096 is a sx1262 radio based on the the energy efficient nrf52 architecture which is the brain of this small node. Ideal for solar nodes with the punch of nearly 1w. Well it sports a modest 28 dBm it’s well above the standard for the sx1262 which normally sits around 22 dBm. So you can compensate well for filter, trees, and generally “shout” farther by message.
I would compare it against a Heltec V4 and the Esp32 Wireless Tracker V2 which sports a similar complement. There are differences however, it lacks wifi and an additional core being Nrf52 but that assists with the energy efficiency.
No need to install a GPS yourself with this radio it’s already installed!
Tested output to 28.22 dBm or 663.74 mW +- on 915Mhz US using a RF meter.
Compatible with Meshtastic or Meshcore
