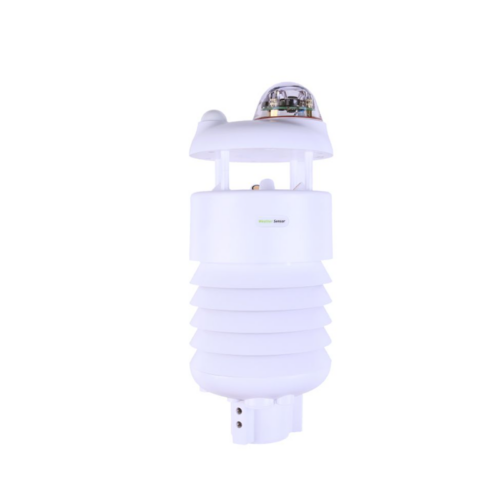

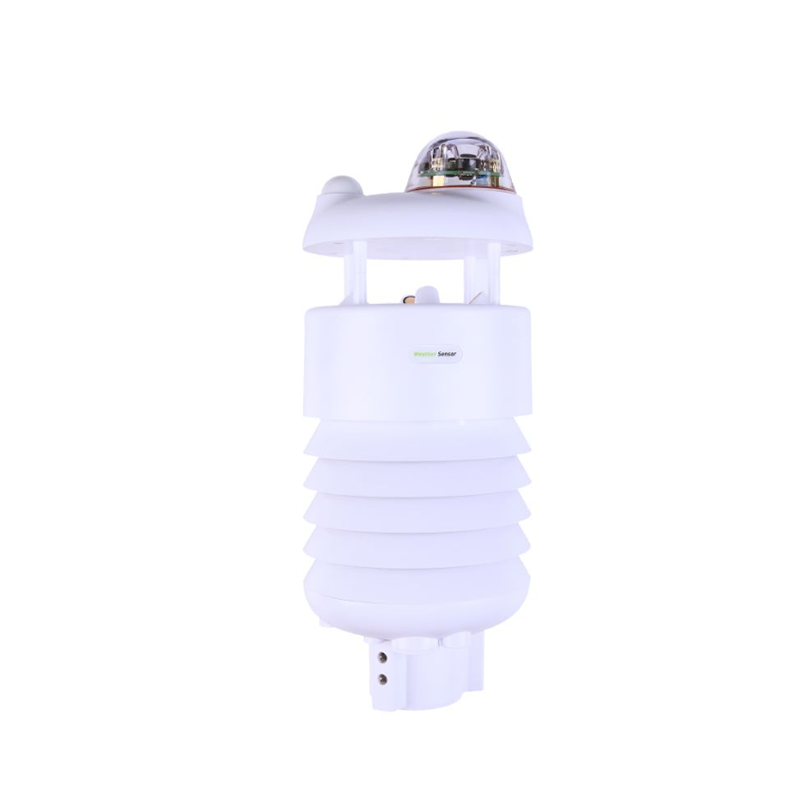

S700 V2 7-in-1 Compact Weather Sensor
$699.00
What's this?
S700 7-in-1 Compact Weather Sensor measures air temperature, relative humidity, barometric pressure, light intensity, rainfall (optical), wind speed, and wind direction (ultrasonic). It is ideal for application in a rough environment like the outdoors, agriculture, or smart cities.
Description
Add an Accessories
Characteristics
No Reviews
Description
Summary
This S700 7-in-1 Compact Weather Sensor can help you collect and monitor environmental and weather data, which are crucial in different application scenarios such as smart city projects and etc. It’s IP66 certified, and it features strong robustness to withstand even the toughest outdoor environment. The Sensors to measure wind speed and wind direction use ultrasound instead of a traditional mechanical 3-cup or vane anemometer. The advantage of using ultrasonic sensors is that reducing the movable parts can make the sensor less likely to break and thereby is easier to be maintained without any sacrifices in precision or manpower.
S700 is a series of all-in-one compact weather sensors, that integrate multiple sensors into this compact device, monitoring up to 10 weather parameters: air temperature, air humidity, atmospheric pressure, light intensity, wind speed, wind direction, precipitation, PM 2.5, PM 10, and CO2.
Main Features
- 7 parameters measurement: Measures air temperature, relative humidity, barometric pressure, light intensity, precipitation intensity, wind speed, and wind direction in 1 single sensor
- Industrial-level design: -40°C to +85°C operating temperature, IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios
- Output interface: RS485 (MODBUS-RTU) / SDI-12
- Thermostatically-controlled heating system: Independent heating power supply for use in extremely cold environments
- Powerful Components Included: A 3m cable for the pole mount; radiation shields are equipped to ensure accurate ambient measurement; ultrasonic wind speed & direction sensors without moving parts
Specifications
Parameters | Description | Parameters Measured | Air temperature Relative humidity Barometric pressure Wind speed wind direction Laser rainfall intensity Light intensity |
---|---|
Protocol | RS485 (MODBUS-RTU) / SDI-12 |
Power Supply | 12V~24V 24V(Heating power supply) |
Cable Length | 3m |
Operating Temperature & Humidity | -40 °C ~ + 85 °C, 0 ~ 100%RH |
IP Rating | IP66 |
Device Weight | 2kg |
Parameter for Air Temperature
Parameters | Description | Range | – 40 °C ~ + 85 °C |
---|---|
Accuracy | ± 0.1℃ |
Resolution | 0.01 ℃ |
Parameter for Air Humidity
Parameters | Description | Range | 0 ~ 100% RH |
---|---|
Accuracy | ± 1.5% RH |
Resolution | 0.01% RH |
Parameter for Barometric Pressure
Parameters | Description | Range | 300 ~ 1250 hPa |
---|---|
Accuracy | ± 50 Pa |
Resolution | 10 Pa |
Parameter for Wind Speed (Ultrasonic)
Parameters | Description | Range | 0~60 m/s standard range 0~75m/s extended range Up to 80m/s withstand range |
---|---|
Accuracy | ±0.3m/s(≤10m/s); ±3% (10m/s ~ 50m/s) ±5% (>50m/s) |
Resolution | 0.1 m/s |
Parameter for Rainfall Intensity(Optical)
Parameters | Description | Range | 0 ~ 200 mm/h |
---|---|
Accuracy | ± 10% |
Resolution | 0.2 mm/h |
Parameter for Light Intensity
Parameters | Description | Range | 0 ~ 200,000 Lux |
---|---|
Accuracy | ± 5% of reading |
Resolution | 5 Lux |
Highlight
Convenient outdoor deployment
In order to optimize the performance of outdoor projects, it is recommended to collaborate with solar panels and outdoor batteries. By doing so, the efficiency of the projects can be enhanced while minimizing energy costs, thereby yielding a more sustainable and cost-effective solution.
Compatible with Multiple Functions
This apparatus has been specifically developed to accurately determine both wind speed and direction. It is designed to provide precise measurements, and as such, it is an invaluable tool for businesses and academic institutions. The data obtained from this device can be relied upon for scientific research, meteorological applications, and a range of other purposes. The accuracy and reliability of this tool are unparalleled, making it a valuable addition to any professional setting.
RS485 (MODBUS485 DBUS-RTU) / SDI-12
The protocol is a commonly used standard in data acquisition and control applications. Its widespread adoption is driven by its ability to interconnect multiple devices, allowing for efficient communication and collaboration among various nodes. This feature is made possible through the deployment of PN1 on a single bus. As a result, it has become a reliable and cost-effective solution for connecting several devices in such systems. The use of PN1 has been widely acknowledged as a crucial component of modern data acquisition and control systems.
FAQ
No, the data of the weather station comes with RS-485, it must work with a data transfer device.
Wireless Aggregator — Bus Transformer is a compatible device for it.
We offer two fixed methods:
1. Flange plate
2. Vertical bracket
You can see it in the SnapEmu app or on the SnapEmu platform.
Docs & Resource
- [Resource] — User Manual
Packing list
The default packing list without selecting any accessories is as follows:
Item | Quantity |
---|---|
S700 7-in-1 Compact Weather Station | x1 |
M12 8-pin communication cable | x1 |
USB Type-C cable, for configuring devices | x1 |
Screw | x6 |
Flat washer (to open the configuration port) | x1 |
