Wireless Tracker

$19.90

  • Include glue rod antenna(IPEX-1);
  • Without battery;
  • Include SH1.25 x 2 battery connector.
    Category: SKU: N/A

    Related products

    Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa.
    Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.

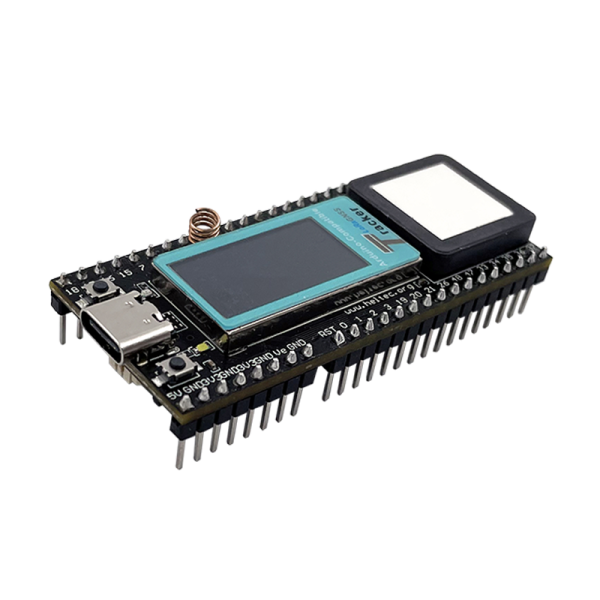

    tracker-3
    tracker-1
    tracker-2

    Wireless Tracker is a part of the “Heltec LoRa“ series, with the following features:

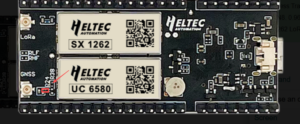

    • ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS.
    • Low power design of dual-frequency multi-system based on 22nm technology.
    • Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
    • Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
    • Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
    • Onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use.
    • Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information.
    • Support the Arduino development environment.
    Download

    Heltec ESP (ESP32 & ESP8266) framework (Already included Heltec ESP32 LoRaWAN library)

    GitHub – HelTecAutomation/Heltec_ESP32: Arduino library for Heltec ESP32 (or ESP32+LoRa) based boards

    Heltec LoRaWAN test server based on TTS V3

    The Things Stack for LoRaWAN (heltec.org)

    User Manual Document

    Contents — esp32 latest documentation (heltec.cn)

    Over View

    Wireless Tracker is a part of the “Heltec LoRa“ series, with the following features:

    • ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS.
    • Low power design of dual-frequency multi-system based on 22nm technology.
    • Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
    • Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
    • Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
    • Onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use.
    • Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information.
    • Support the Arduino development environment.
    Datasheet
    Download
    Docs & Resource

    Heltec ESP (ESP32 & ESP8266) framework (Already included Heltec ESP32 LoRaWAN library)

    GitHub – HelTecAutomation/Heltec_ESP32: Arduino library for Heltec ESP32 (or ESP32+LoRa) based boards

    Heltec LoRaWAN test server based on TTS V3

    The Things Stack for LoRaWAN (heltec.org)

    User Manual Document

    Contents — esp32 latest documentation (heltec.cn)
