QUICKLINK SENSOR FAMILY
Heltec rigorously screened dozens of high-performance sensors and integrated them into a single PCB of uniform size and interface, which is the QuickLink sensor family. 2.54 Stamp port or PH2.0-4P interface, so you can easily deploy your project without using other cables.
Application Scenario
Embedded Learning and Development
The series can be connected to other modules or development boards through stamp holes or PH2.0 4P cables, which makes wiring easier and is therefore ideal for novices. If you are a skilled engineer, this series can also save you more time.
QuickLink Sensors family :
3-axis Acceleration(Dip Angle) Sensor(DA217)
Original price was: $9.90.$6.50Current price is: $6.50.
Atmospheric Pressure Sensor (BMP280)
Original price was: $3.90.$3.00Current price is: $3.00.
CH4 Gas Sensor
Original price was: $9.90.$6.50Current price is: $6.50.CO Gas Sensor
Original price was: $9.90.$6.50Current price is: $6.50.
Digital Intelligent Pyroelectric Infrared Sensor
Original price was: $3.90.$1.50Current price is: $1.50.
Digital Proximity, Ambient Light, RGB and Gesture Sensor
Original price was: $3.90.$1.80Current price is: $1.80.H2S Gas Sensor
Original price was: $14.90.$9.90Current price is: $9.90.HCHO Gas Sensor
Original price was: $9.90.$6.50Current price is: $6.50.
Magnetic Rotary Position Sensor
Original price was: $3.90.$1.80Current price is: $1.80.NH3 Gas Sensor
Original price was: $14.90.$9.90Current price is: $9.90.
Upgrade to Industrial Solutions
With the Sensor Hub and Wireless Aggregater, you can easily turn the QuickLink into a LoRaWAN® sensor.
Sensor Hub and Wireless Aggregater are designed for industrial and outdoor scenarios, respectively, with IP66 level protection, so that these applications can be directly deployed to any occasion, thus greatly increasing the scalability of Sensor Hub and Wireless Aggregater.
Sensor Hub
$59.00 – $69.00
Key Features
Strong Extensibility

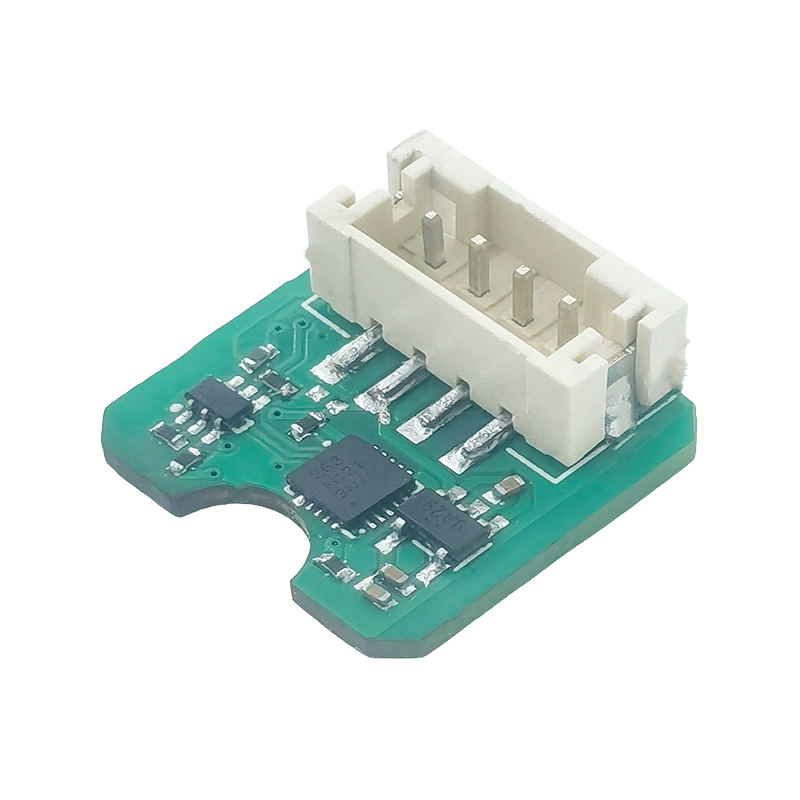

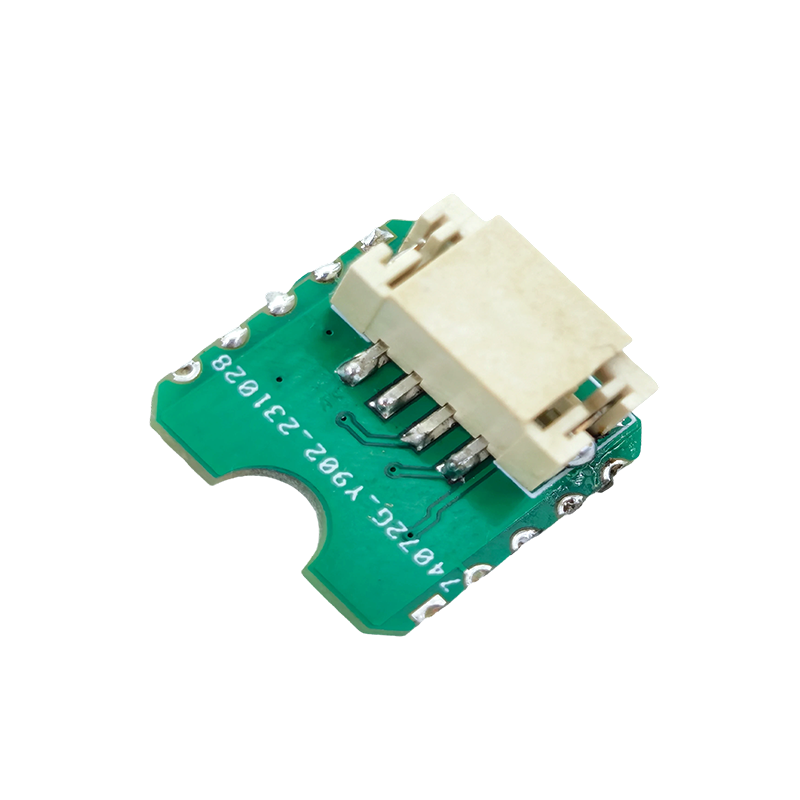

All sensors are integrated on a standard-sized PCB with a uniform interface that can be soldered directly to the circuit or connected to other devices via a PH2.0 interface.
Powerful Performance
All the sensors have been rigorously tested and have high sensitivity and high accuracy. If you have other sensor requirements, you are welcome to contact us to order.
High Cost-effective
The price of the QuickLink series is kept extremely low with guaranteed functionality, and because it can be integrated into other devices, the cost of your deployment project is greatly reduced.
Complete System
We provide a wealth of sensor types and will continue to enrich it later. At the same time, many of our devices can cooperate with the QuickLink series for application and development. We even provide a development environment for these devices.
Topological relationships
Heltec provides you with a variety of models of sub-equipment and a rich selection of accessories, for different needs. In addition to providing the development environment and sample code, we also set up a free iot platform and LoRaWAN server for testing.
BUILD THE SYSTEM
You can find suitable devices from the following series and easily build an application system that suits your application.
