Description
Summary

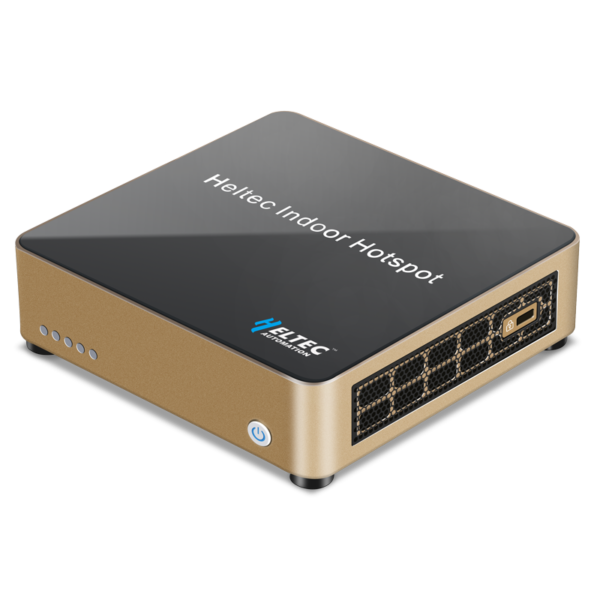

Heltec offers the most cutting-edge LoRaWAN-supported hotspot available today, the HT-M2808 especially for Helium-the people’s network. This high-performance hotspot is designed to provide wireless network coverage to the Helium network. The LoRa technology utilized in this hotspot has an extensive range, allowing for the connection of thousands of IoT devices to a single hotspot. Furthermore, the HT-M2808 allows IoT devices located miles away to connect using LoRa technology, with data transmission occurring over distances much greater than Wi-Fi. In addition, the hotspot boasts a sleek and modern design, which enables it to be placed conveniently anywhere. The HT-M2808 is also ready-to-use right out of the box.
Main Features
- CPU: Quad-core Cortex-A53 64-bit 1.5GHZ
- RAM: 2GB DDR4;
- ROM: 32GB eMMC 5.1;
- LoRa base band: SX1308 + SX1255/7 chipset.
- Wi-Fi: 2.4GHz/5GHz
- Bluetooth: BT V5.0 EDR and BLE
- Ethernet: 10/100M
Specifications
Parameters | Description |
---|---|
CPU | Quad core Cortex-A53 64-bit CPU 1.5GHz |
RAM | 2GB DDR4 |
ROM | 32GB eMMC 5.1 |
LoRa baseband | SX1308 + SX1255/7 chipset |
ADC Resolution | 14bits |

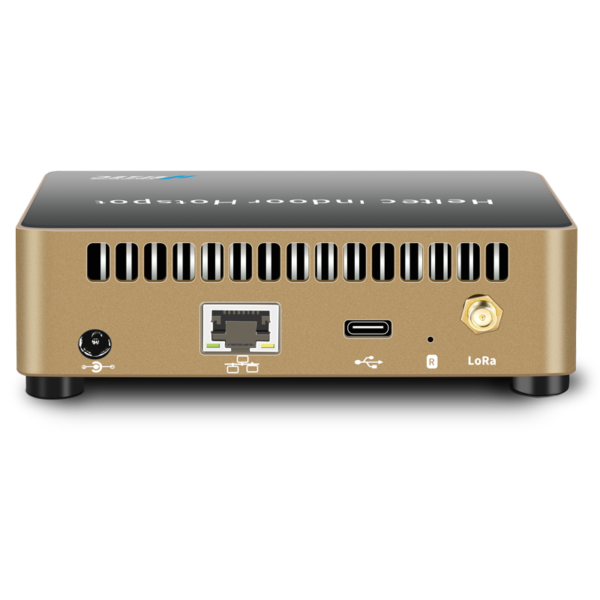

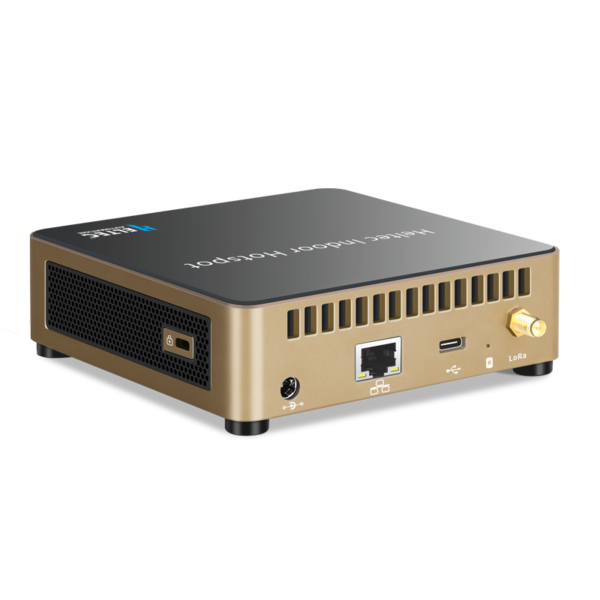

Interface | 5.5mm diameter socket RJ45 socket Anti-theft lock hole SMA Socket Type C Socket 1mm diameter hole |
Description
Easy config
Step. 1
Step. 2
Step. 3
Power ON device
Config network
Connect to a LoRaWAN anetwork server
FAQ
No Micro SIM card slot for LTE network.
No, because different RF frequencies require different impedance matching, and the operating frequency band of the device must be within the range supported by the hardware.
The following are references for the corresponding working frequency bands of each version:
- 470~510 Version: CN470.
- 863~870 Version: EU868, IN865.
- 902-928 Version: US915, AU915, AS923, LA915, KR920 (LBT).
It can upgrade firmware via OTA.
Yes. There is no LBT support in the 902~928 version, but if your order address is in Korea, our staff will contact you to confirm if LBT support is needed.
High light

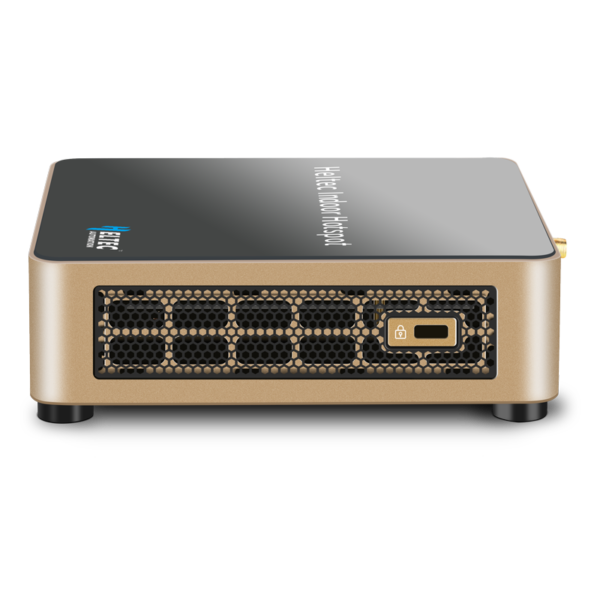

Anti-theft lock port design
The utilization of an anti-theft lock port provides a secure solution for outdoor placement without the concern of theft.
Supports standards LoRaWAN and custom MQTT
By selecting Gateway Mode, the HT-2802 can switch working modes, supporting both LoRaWAN and custom MQTT.
High performance LoRaWAN router
The HT-2802 is a versatile and highly functional device that can be installed both indoors and outdoors, with the option of being mounted in a case. It is capable of serving as a standalone device or as a gateway for blind filling. Its adaptability and versatility make it an ideal solution for a wide range of settings and scenarios.
Docs & Resource
- [Resource] — Heltec HT-M2808 Downloadable Resources
- [Attachment] — Frequencies by country
Packing list
The default packing list without selecting any accessories is as follows:
Item | Quantity |
---|---|
Heltec Indoor Hotspot (HT-M2808) | x1 |
12V 1 3A DC Adapter | x1 |
DC Adapter110/220Vpower wire | x1 |
SMA LoRa antenna(1.5m shielded wire) | x1 |
Add an Accessories
Recommend accessories for HT-M2808 Indoor Hotspot For Helium
Related products
-
CubeCell GPS-6502 (HTCC-AB02S) $25.80 – $25.90
-
HT-M7603 Indoor LoRa Gateway
$119.00Original price was: $119.00.$89.00Current price is: $89.00.
Characteristics
Weight | 1500 g |
---|---|
Dimensions | 30 × 20 × 15 cm |
LoRa Gateway Band | 433MHz, 863-870MHz, 902-928MHz |
