Description
Summary

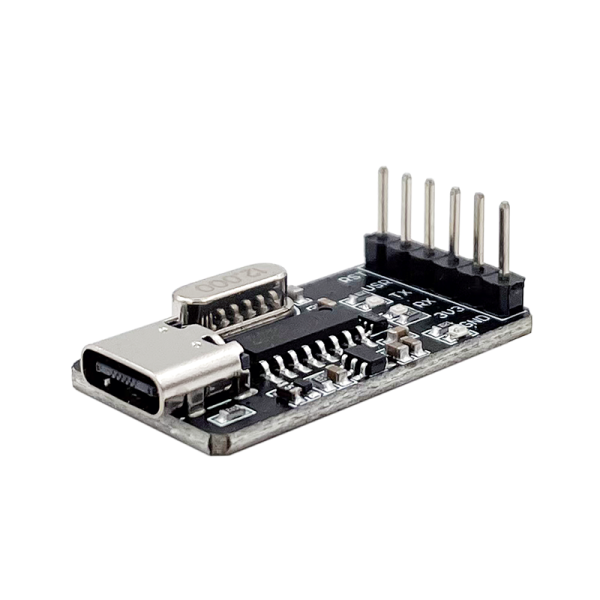

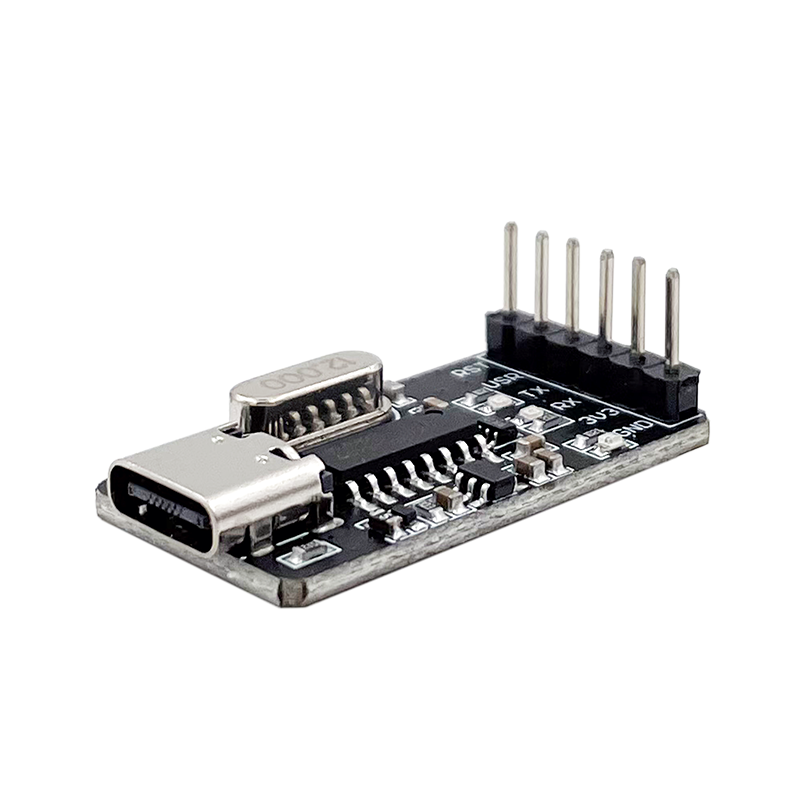

UART_Programmer is a USB to serial adapter,Which is base on CH340G, it can realize USB convert to serial interface. The module uses a USB Type-C interface with an input voltage of 5V and an output of 3.3V. it can used for upload code or communicating with MCUs.
Main Features
- Chip CH340G
- Full speed USB device interface, conforms to USB Type-C.
- Onboard LED indicator light.
Specifications
| Parameters | Description | Chip | CH340G |
|---|---|
| Input Voltage | DC 5V |
| Output Voltage | 3.3V |
| Current | 500mA |
| Temperature | -40~85℃ |
| Baud Rate | MAX 2Mbps |
| Interface | USB Type-C |
| Dimension | 30*17*6mm |
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| UART_Programmer | x1 |
Characteristics
| Weight | 5 g |
|---|---|
| Dimensions | 3.5 × 1.8 × 1.3 cm |
| LoRa Band | 433MHz, 470~510MHz, 863~870MHz, 902~928MHz |
No Reviews
UART Programmer
What's this?
Usually used as a USB-UART bridge, also can be a programmer for some development boards.
$2.00
