Summary

The RadioCore series is a quasi-system-level development platform that enables flexible integration of various MCUs and RF modules within an ultra-compact form factor, making it well suited for a wide range of IoT applications.

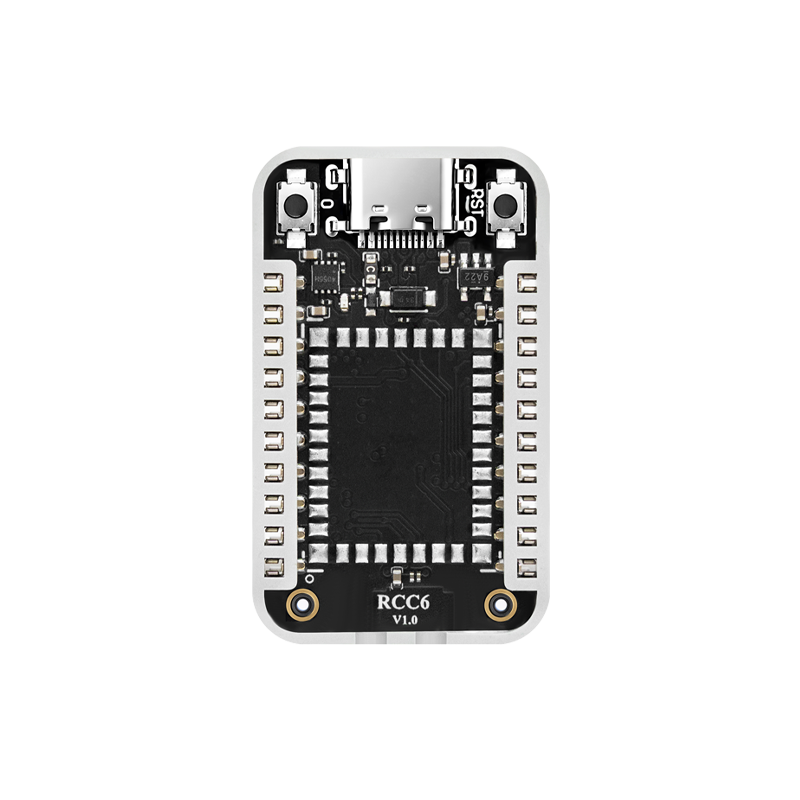

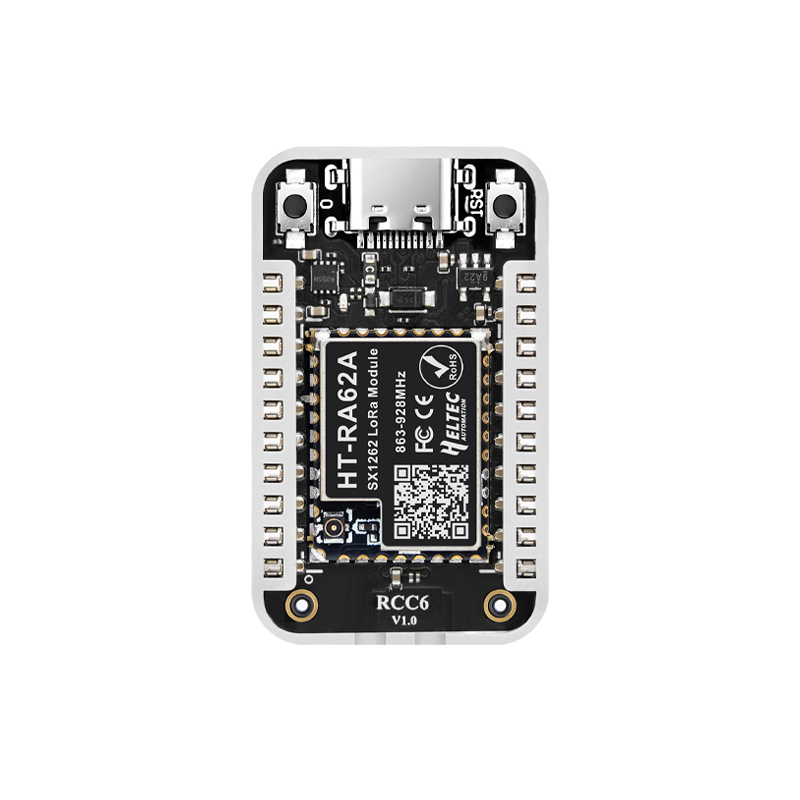

The RCC6-62, a model in this series, is equipped with the Espressif ESP32-C6 and SX1262， supports 2.4 GHz Wi-Fi, Bluetooth 5.0, BLE and LoRa connectivity.

The RCC6 features a custom pin layout that supports solder-free plugandplay operation, simplifying prototype assembly and module replacement, thereby accelerating development and iteration cycles.

It supports the official Arduino framework and is fully compatible with mainstream toolchains including PlatformIO, and ESPIDF, enabling developers to work in familiar environments and speed up project delivery.

Main Features

Equipped with the ESP32-C6, integrating 2.4GHz Wi‑Fi, Bluetooth 5.0 LE.
Integrated SX1262, supports long-range, low-power LoRa communication.
Provides Arduino development framework; compatible with mainstream toolchains including ESP‑IDF, PlatformIO, and MicroPython etc.
Compatible with various open‑source projects, such as Meshtastic, MeshCore, Home Assistant, etc.
Compact form factor with solder-free pins for easy integration.

Description

Generic Specifications

Parameters	Description
MCU	ESP32-C6
Compatible RF	SX1262 (HT-RA62A)
Interface	USB-C; BTB; 2 x 10 Pin Headers , IPEX 4.0(LoRa)
Hardware Resource	– UART: 2 HP UART + 1 LP UART – SPI: 3 SPI interfaces (2 dedicated for flash, 1 general-purpose) – I2C: 1 HP I2C + 1 LP I2C – I2S: 1 audio I2S interface – TWAI: 2 controllers (CAN 2.0 compliant) – RMT, PCNT, PARLIO peripherals integrated – SDIO Slave supported – USB 2.0 Full-Speed (12 Mbps) with CDC & built-in JTAG
Memory	– ROM: 320 KB – HP SRAM: 512 KB – LP SRAM: 16 KB – L1 Cache: 32 KB (for Flash acceleration) – eFuse: 4096 bits (1792 bits user available) – 16MB External Flash
Power Supply	USB-C 5V, 3.3V Pin Header, 3.3-4.2V Vbat
Operating Temperature	-30 ~ 80 ℃
Dimensions	40.10 x 23.82 x 12.54 mm
Weight	8.5g

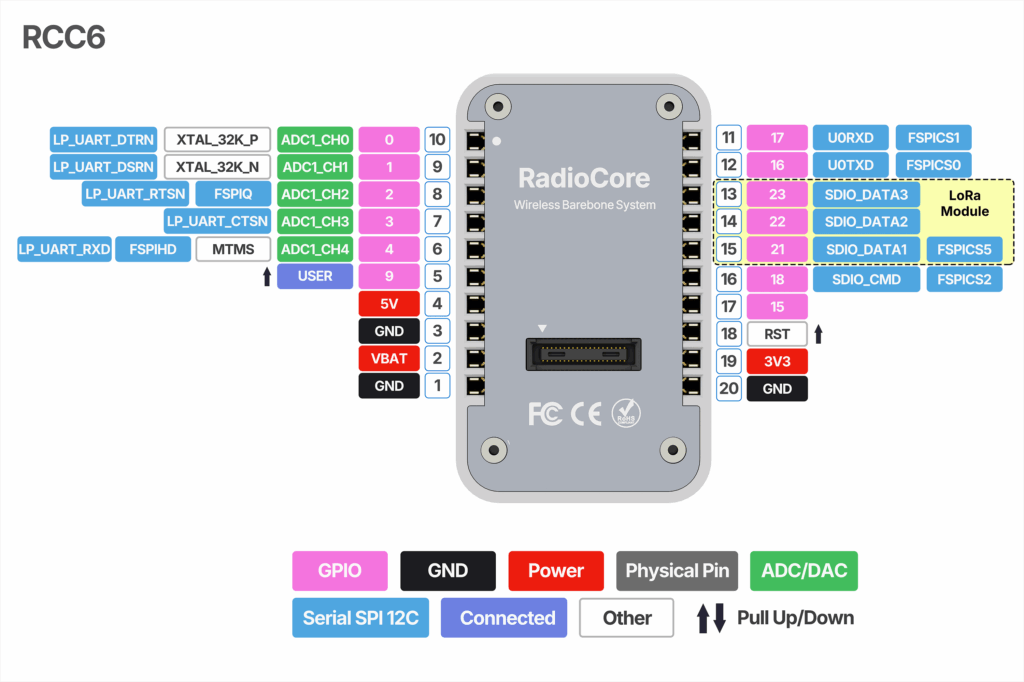

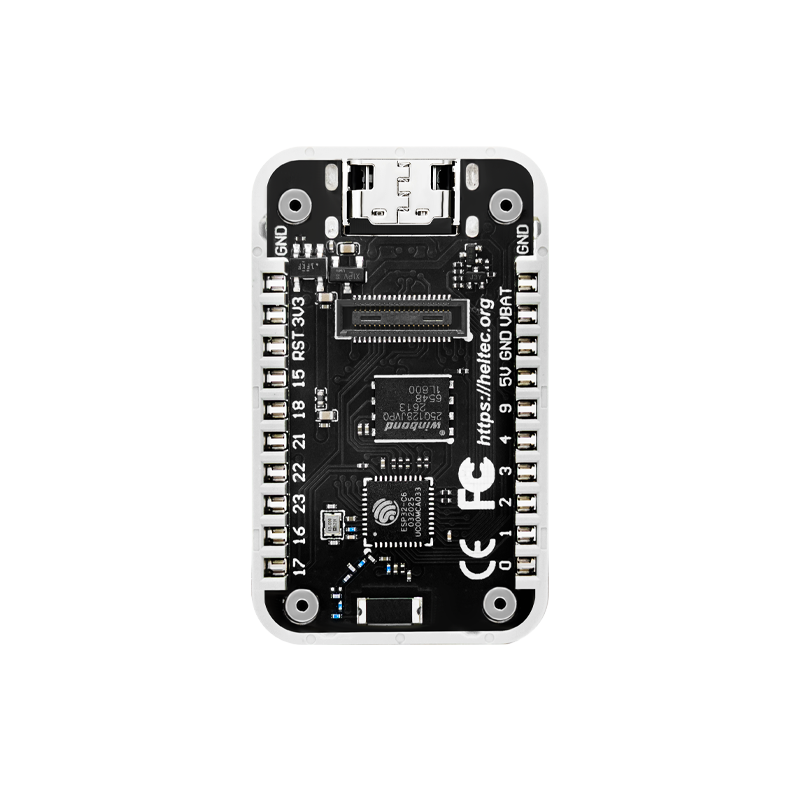

Pin Map

Dimensions

Highlight

Compact Size for Easy Integration

Compact dimension: 40.10 × 23.82 × 12.54 mm.
B2B interface facilitates easy integration.

Solder‑Free

Custom pin holes enable direct usage without soldering.
Standard 2.54 mm pin pitch

Showing Slide 1 of 2

FAQ

Does the device come with LoRa or Wi‑Fi HaLow modules?

If you select RCC6, it does not include long-range communication modules such as LoRa or Wi‑Fi HaLow.

RCC6‑62 is equipped with the SX1262 LoRa module.

Can I replace the RF module freely?

The RF module requires SMT mounting. Replacement is feasible if you have the SMT capability and solder the pins correctly.

Battery Power Supply

The main unit of the device does not come with a dedicated lithium battery interface. However, lithium battery power supply can be achieved in the following two ways:

There is a dedicated battery pin, VBAT, on the pin header.
We offer a matching baseboard for battery adaptation, which integrates a 1.25-2P lithium battery connector.

B2B Interface Definition

Wireless Module Pins

Please refer to the datasheet of the corresponding sub-model for wireless module pin definitions.
RCC6 Datasheet

Wireless Power & Consumption Parameters

Please refer to the datasheet of the corresponding sub-model
RCC6 Datasheet

Docs & Resource

[Attachments] —Datasheet
[Attachments] —Schematic_Diagram
[Documents] —User Manual Document
[Documents] — Heltec ESP32 LoRa framework and lib installation
[Resource] — RadioCore_Library
[Resource] — Heltec LoRaWAN test server based on SnapEmu
[Attachments] —Firmware

Packing list

The default packing list without selecting any accessories is as follows:

Item	Quantity
RadioCore	x1
LoRa Antenna	x1 (LoRa Version)
SH1.25×2 Battery Connector	x1
Pin Header	x2
Pin Sticker	x2
IP2X4.0-SMA Adapter Cable	x1(Kit Version)
RD02G Adapter Board	x1 (Kit Version)

Characteristics

Weight	55 g
Dimensions	7.5 × 7.5 × 2.6 cm
Wireless Module	N/A, LoRa SX1262
LoRa Band	433MHz, 863~870MHz, 902~928MHz, N/A
TX Power	21±1 dBm, 28±1 dBm, N/A
Package	Basic Unit, Full Accessory Kit
