Description
Summary

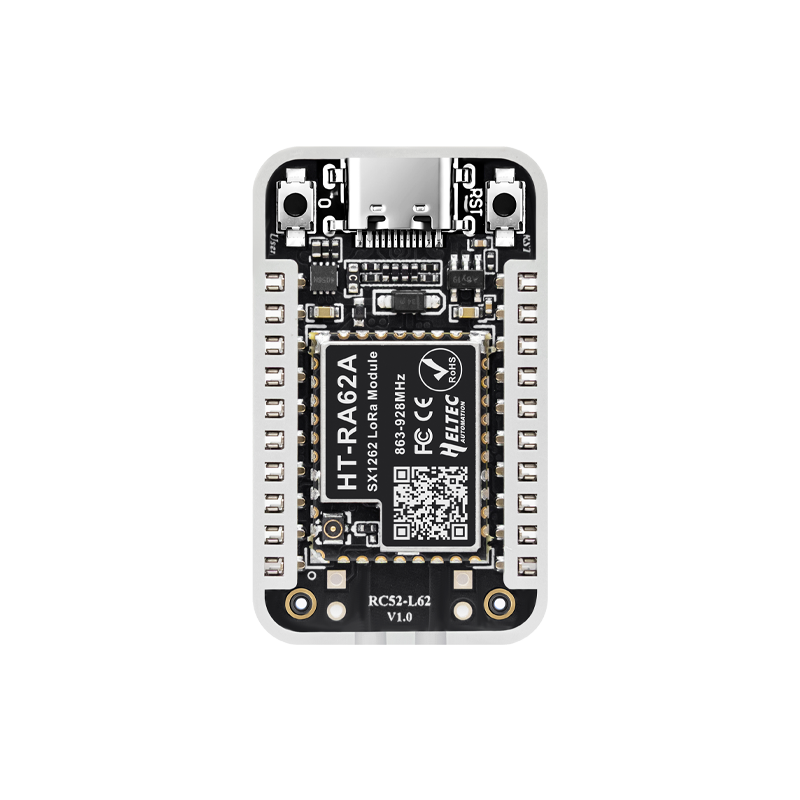

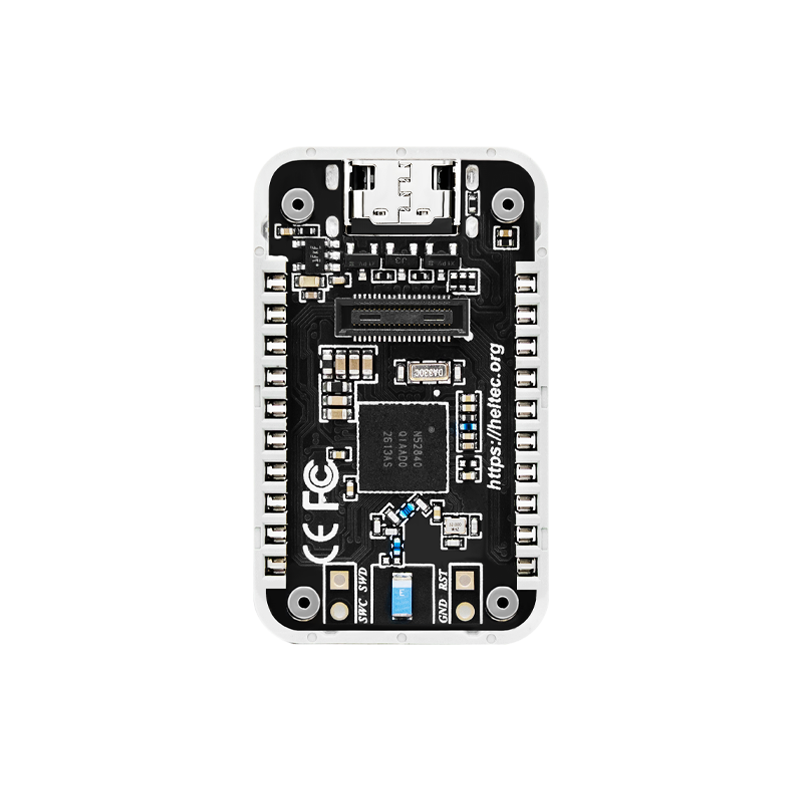

The RadioCore series is a quasi-system-level development platform. With an ultra-compact form factor, it can flexibly adapt to various MCUs and RF modules for diverse IoT scenarios. As a model in this series, the RC52-62 integrates the Nordic nRF52840 MCU and SX1262 RF chip. It supports BLE and LoRa, delivering both long and short-range communication alongside ultra-low power consumption.
Main Features
- MCU: nRF52840 with integrated ultra-low-power Bluetooth
- Onboard LoRa RF module: supports long-range point-to-point & LoRaWAN networking
- Open-source Arduino library: HelTec nRF52 Framework; PlatformIO compatible
- Compatible with various open‑source projects, such as Meshtastic, MeshCore, Reticulum etc.
- Compact form factor with solder-free pins for easy integration.
Description
Generic Specifications
| Parameters | Description |
|---|---|
| MCU | nRF52840 (BLE) |
| LoRa Chip | SX1262 |
| Interface | USB-C, BTB, 2 x 10 Pin Headers, IPEX 4.0(LoRa) |
| Bluetooth | Bluetooth 5.0 LE |
| Hardware Resource | USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC |
| Memory | 1MB Flash, 256KB SRAM |
| Power Supply | USB-C 5V, 3.3V Pin Header, 3.3-4.2V Vbat |
| Operating Temperature | -30 ~ 80 ℃ |
| Consumption | Sleep: 7μA Transmmision: 164mA@22dBm |
| Dimensions | 40.10 x 23.82 x 12.54 mm |
| Weight | 8.5g |

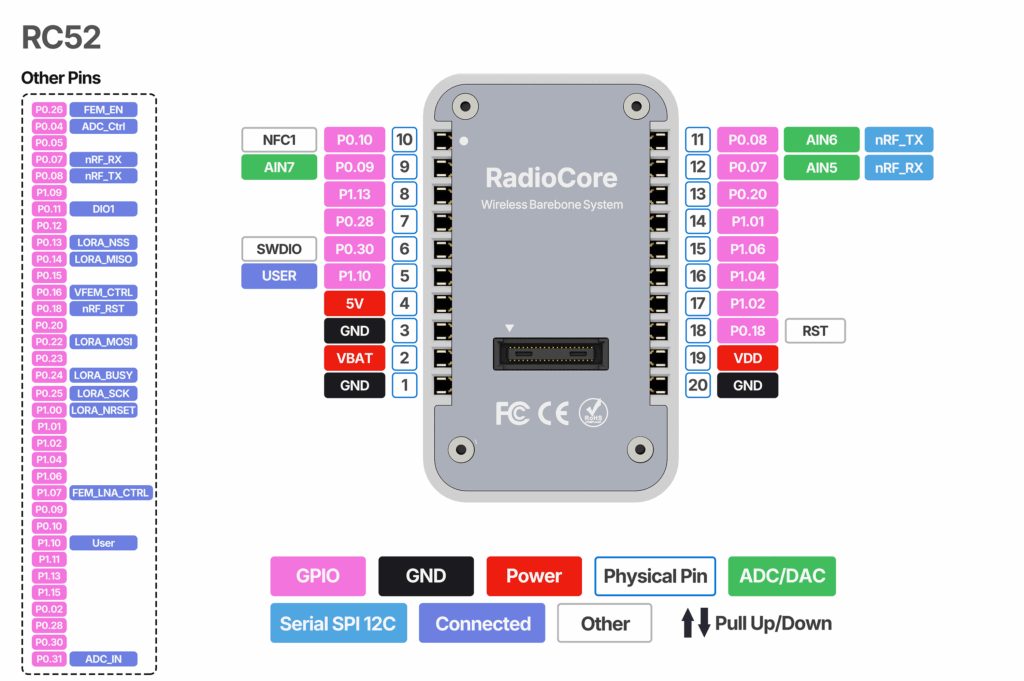

Pin Map
Dimensions
Basic Version and Kit Version
Highlight

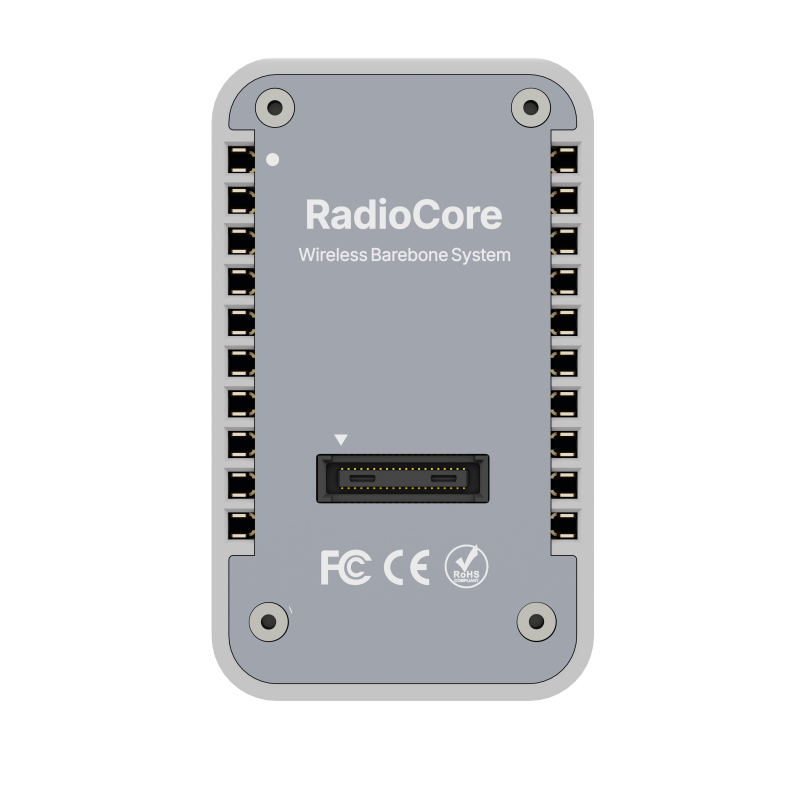

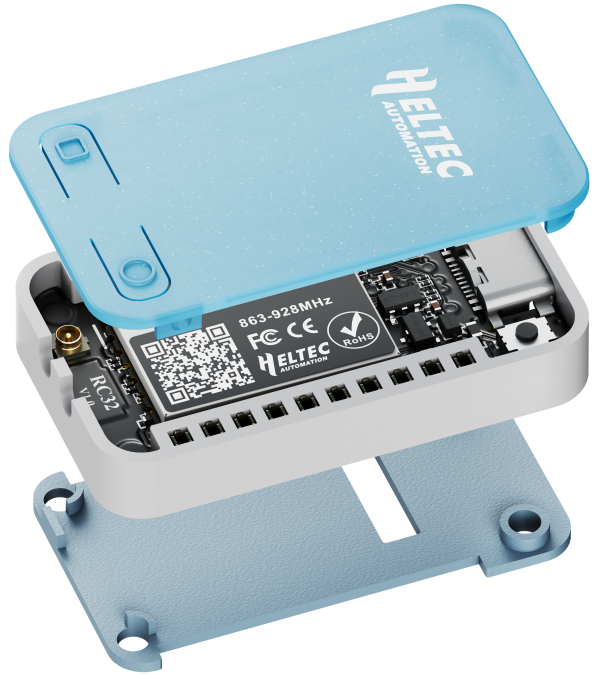

Compact Size for Easy Integration
- Compact dimension: 40.10 × 23.82 × 12.54 mm.

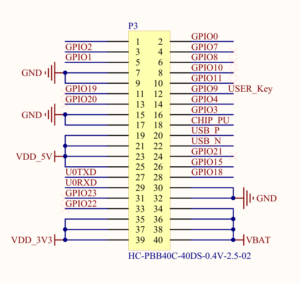

- B2B interface facilitates easy integration.
Showing Slide 1 of 3
FAQ
The RC52 comes pre-soldered with the SX1262. The RC52 cannot work with the Wi-Fi HaLow module.
The main unit of the device does not come with a dedicated lithium battery interface. However, lithium battery power supply can be achieved in the following two ways:
- There is a dedicated battery pin, VBAT, on the pin header.
- We offer a matching baseboard for battery adaptation, which integrates a 1.25-2P lithium battery connector.
Please refer to the datasheet of the corresponding sub-model
RC52 Datasheet
Docs & Resource
- [Documents] — Heltec nRF52 framework and lib installation
- [Resource] — RadioCore series hardware (Peripherals)
- [Attachments] — Datasheet
- [Attachments] — Schematic_Diagram
- [Documents] — User Manual Document
- [Resource] — Heltec LoRaWAN test server based on SnapEmu
- [Attachments] — Firmware
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| RadioCore | x1 |
| LoRa Antenna | x1 |
| SH1.25×2 Battery Connector | x1 |
| Pin Header | x2 |
| Pin Sticker | x2 |
| IP2X4.0-SMA Adapter Cable | x1(Kit Version) |
| RD02G Adapter Board | x1 (Kit Version) |
Characteristics
| Weight | 55 g |
|---|---|
| Dimensions | 7.5 × 7.5 × 2.6 cm |
| LoRa Band | 433MHz, 863~870MHz, 902~928MHz |
| TX Power | 21±1 dBm, 28±1 dBm |
| Package | Basic Unit, Full Accessory Kit |
