Description
Summary

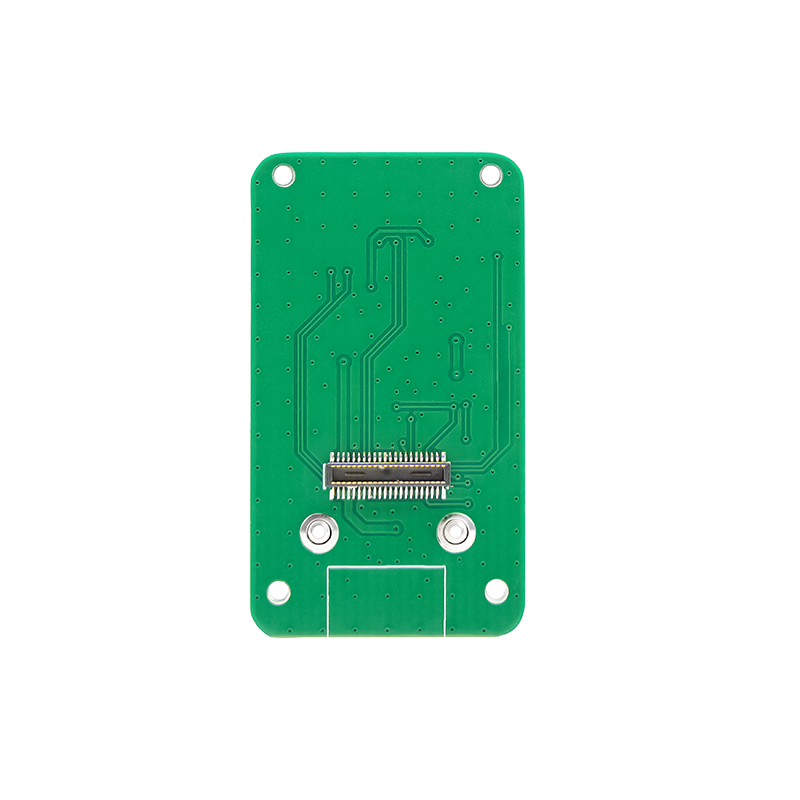

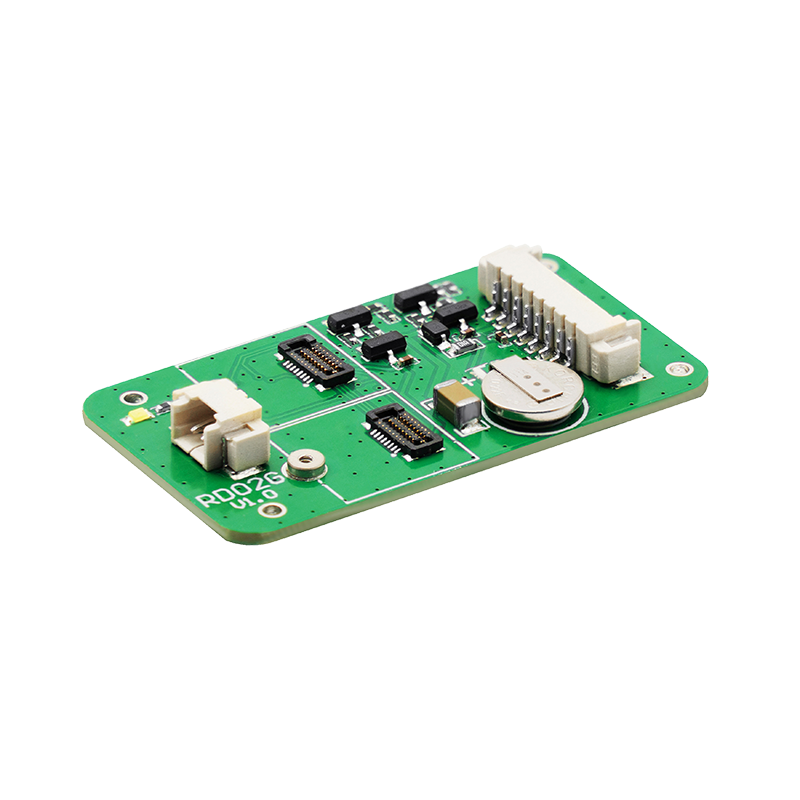

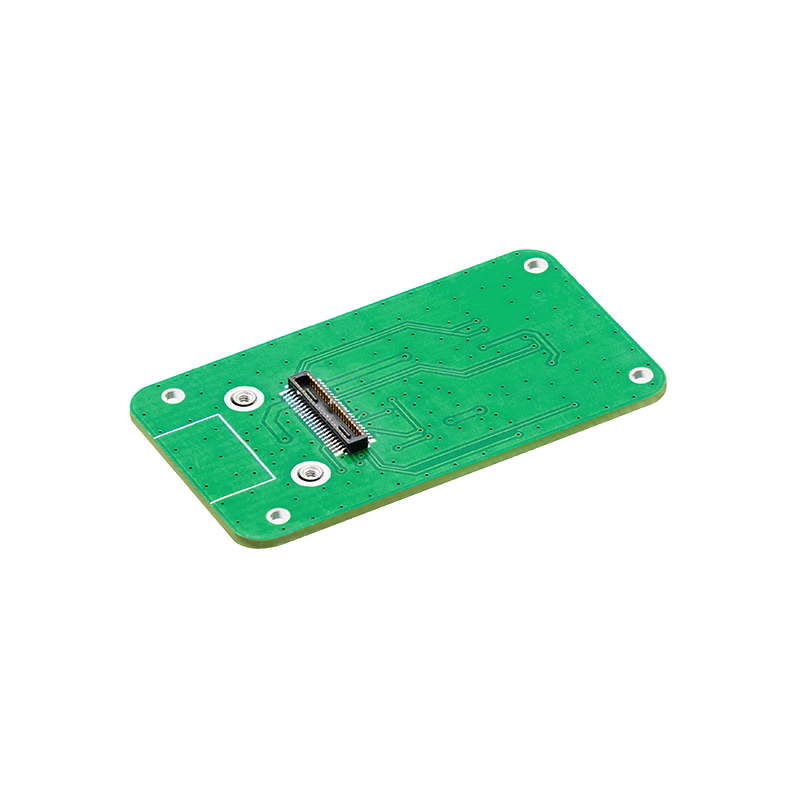

RD02G is a carrier board of the RadioCore series. It integrates a 1.25-2P lithium battery connector, 2 x B2B sensor interfaces, and 1 x 1.25-8P GNSS interface. It allows easy integration of various sensors, GNSS modules and lithium batteries. It is well suited for a variety of LoRa Mesh applications.
Specifications
| Parameters | Description |
|---|---|
| Compatible Board | RC32, RC52 |
| Dimensions | 45 x 24 mm |
| Interface | RadioCore: B2B x 1, Sensor: B2B x 2, GNSS: 1.25-8P, Battery: 1.25-2P |
| Compatible Battery | Lithium battery |
| Capacitor | DMS3R3224RS |
FAQ
The backup power component is an electric double-layer supercapacitor, not a battery. It stores energy through physical charge adsorption without chemical reactions, and supports unlimited charge-discharge cycles. It is used for GNSS backup power supply.
Docs & Resource
- [Attachments] — Schematic_Diagram
- [Documents] — User Manual Document
Packing List
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| RadioCore | x1 |
| LoRa Antenna | x1 |
| Battery | x1 |
| RD-GA01 Base Board | x1 |
| TFT Display | x1 |
Characteristics
| Weight | 55 g |
|---|---|
| Dimensions | 7.5 × 7.5 × 2.6 cm |
No Reviews
RD02G, Extension Board for RadioCore
What's this?
RD02G is the RadioCore series carrier board. It has lithium battery, sensor and GNSS interfaces onboard, ideal for many LoRa Mesh applications.
$6.90
