Description
Summary
RD-GA01 is an expansion kit of the RadioCore series. It is compatible with the LoRa versions of RC32 and RC52. The board integrates GNSS, buzzer and 18350 Li-ion battery.
Note:
The battery is pre-soldered and cannot be replaced by the user.
Description
Structure
| Parameters | Description |
|---|---|
| Enclosure Material | PLA |
| Process | FDM |
| Battery | 18350 Li-ion |
| GNSS Module | Quectel L76K (L1) |
| Antenna | Specification |

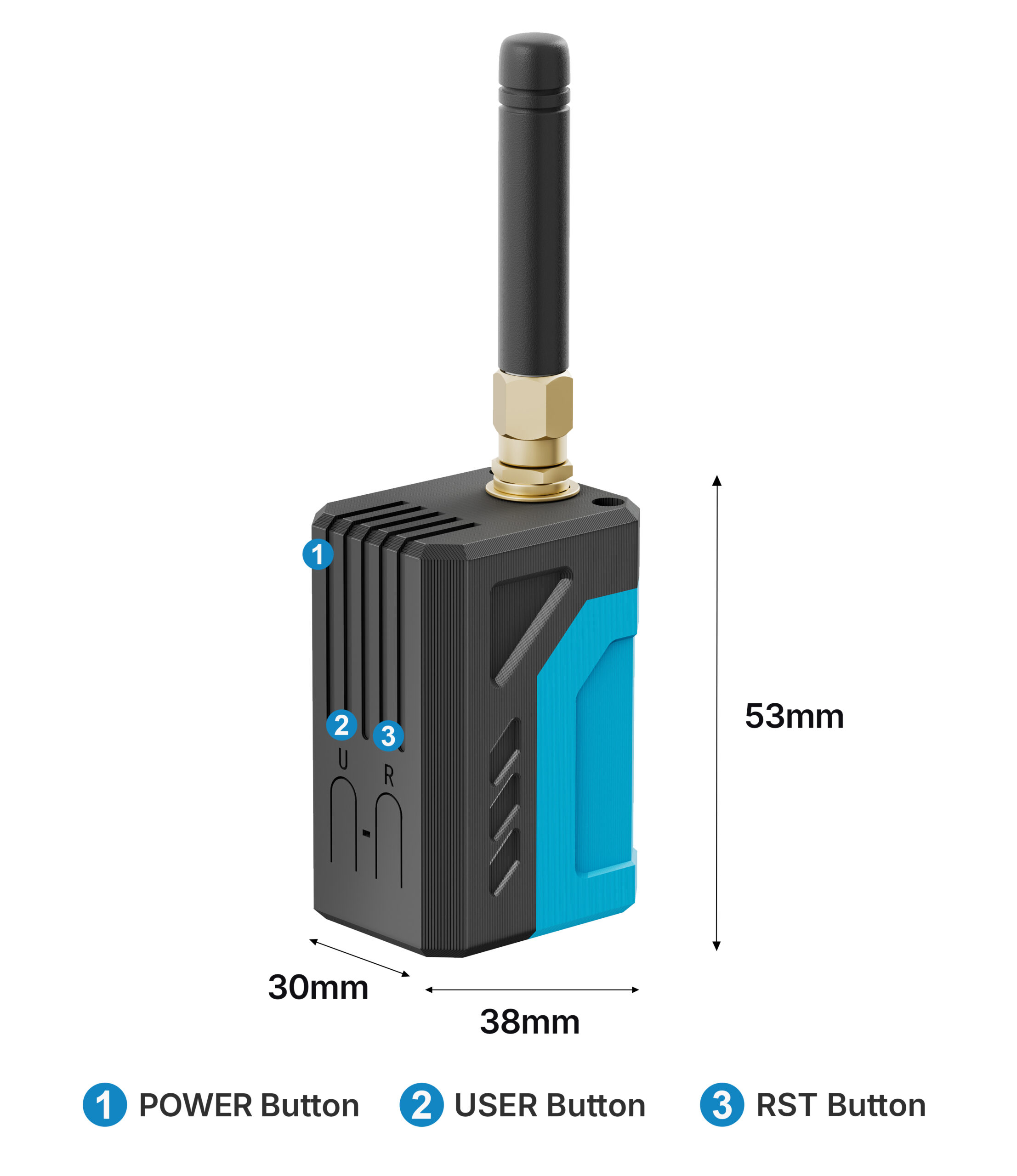

| Dimensions | 30×53×38mm |
| Compatible MCU | RC32, RC52 |
FAQ
- Please note that the device must be placed outdoors in an open area. A position near a window is not sufficient.
- Please allow sufficient time for acquisition. The first GNSS fix may take longer in some regions.
- Check your software settings to confirm the function is enabled.
- If your main board is RC32, enter bootloader mode with the steps below:Hold down the USER button, press the R button once, then release the USER button. After flashing, press the R button to reboot the device.
- If your device is RC52, double-press the R button to enter DFU mode. Simply drag and drop the firmware file to the pop-up drive
Docs & Resource
- [Attachments] — Module Datasheet
- [Attachments] — Module chematic_Diagram
- [Attachments] — Base Board chematic_Diagram
- [Documents] — User Manual Document
- [Attachments] — RC32 Firmware
- [Attachments] — RC52 Firmware
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| RadioCore | x1 |
| LoRa Antenna | x1 |
| Battery | x1 |
| RD-GB01 Base Board | x1 |
Characteristics
| Weight | 80 g |
|---|---|
| Dimensions | 7.5 × 7.5 × 2.6 cm |
| RadioCore | RC32-62, RC52-62 |
| LoRa Band | 433MHz, 863~870MHz, 902~928MHz |
| TX Power | 21±1 dBm, 28±1 dBm |
No Reviews
RD-GB01, RadioCore LoRa, GNSS Kit
What's this?

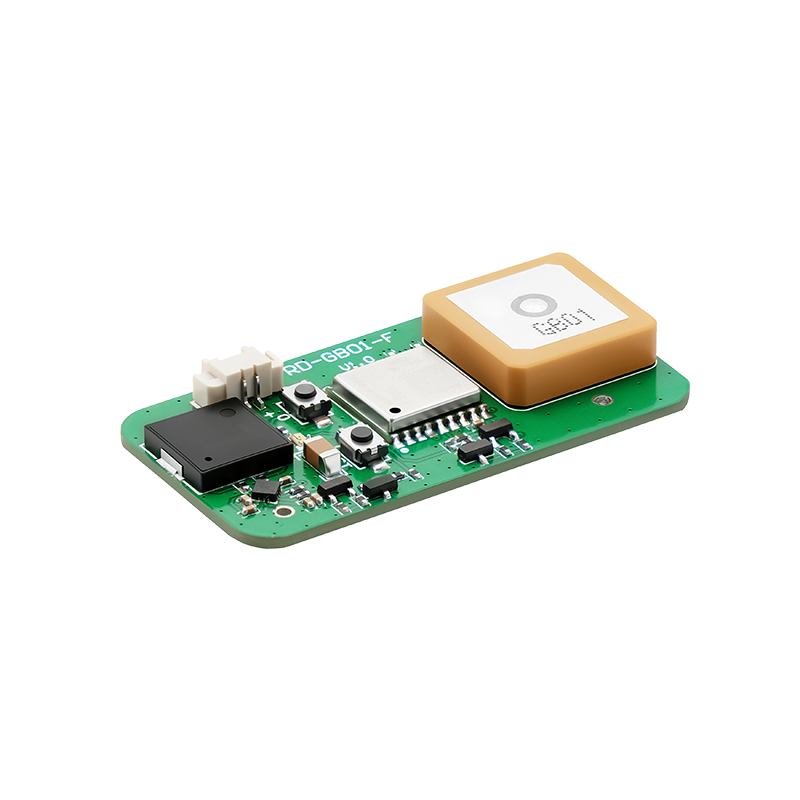

RD-GB01 is an expansion board for the RadioCore series, integrating LoRa, GNSS and 18350 Li-ion battery.
