Description
Summary

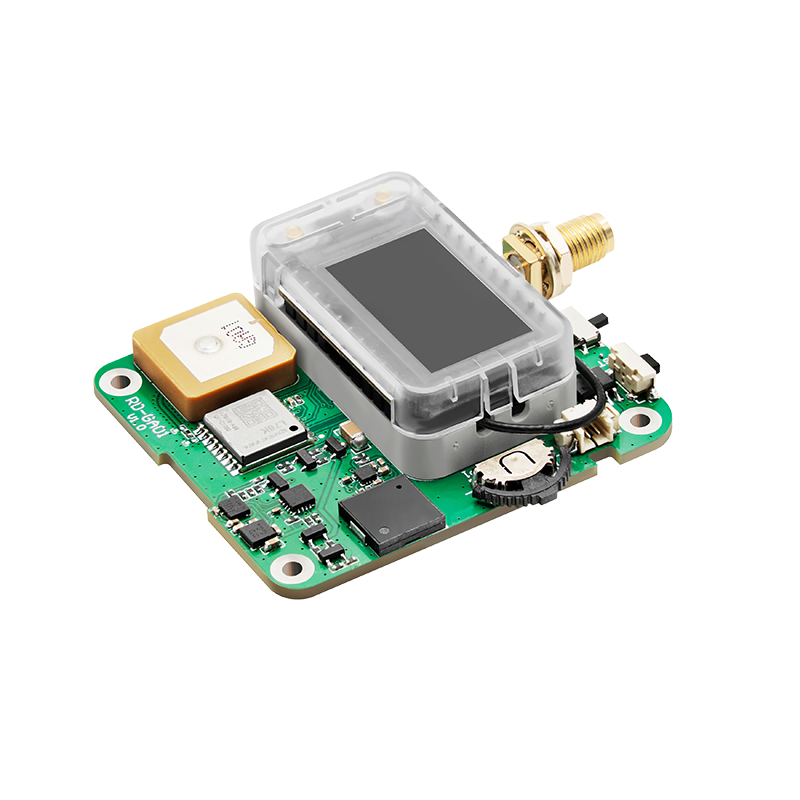

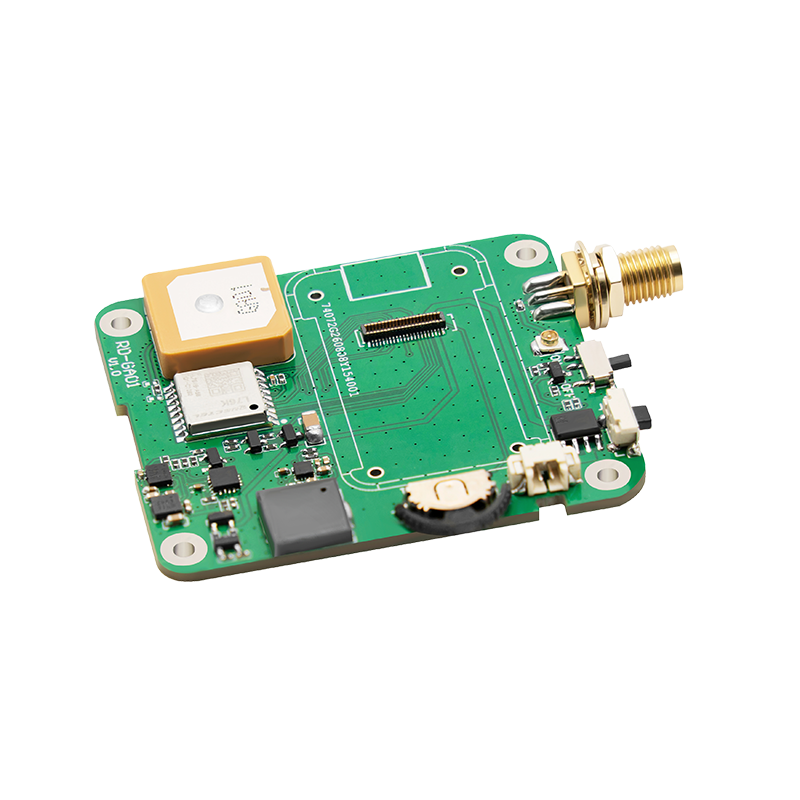

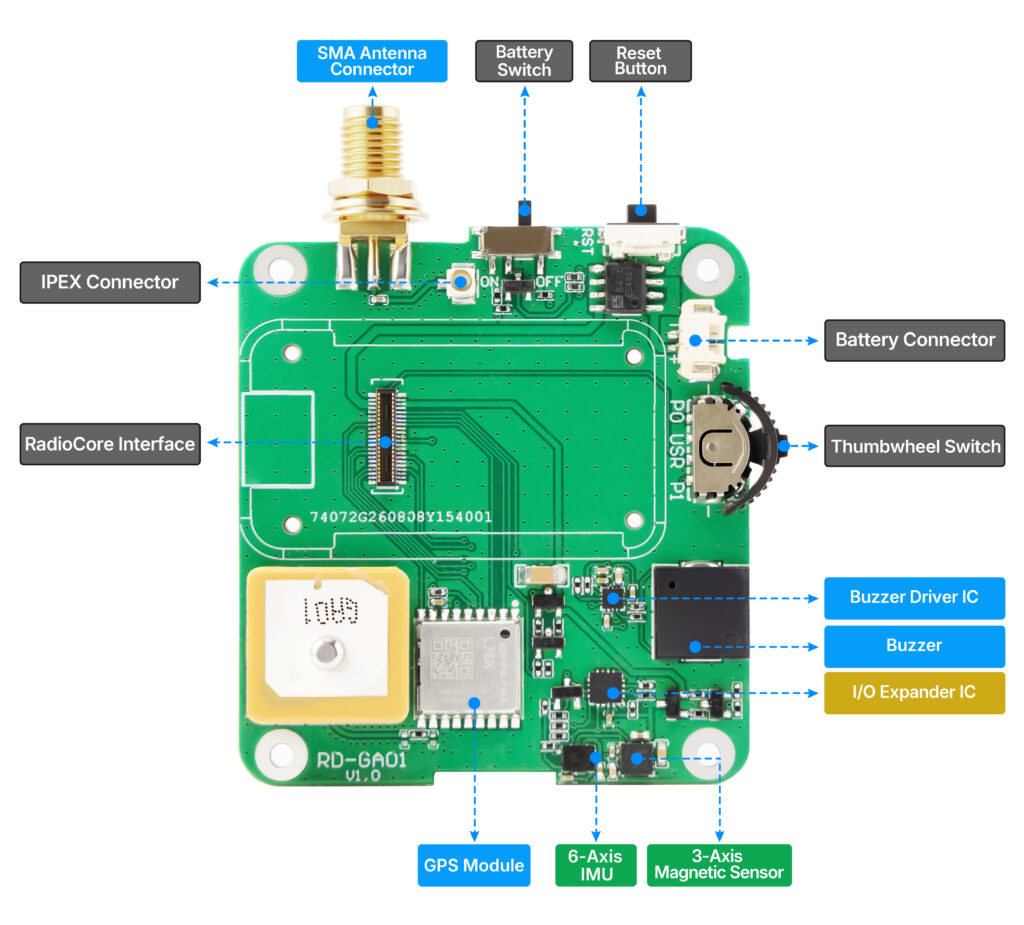

RD-GA01 is an expansion board of the RadioCore series. It is compatible with the LoRa versions of RC32 and RC52. The board integrates a TFT display, 9-axis IMU, GNSS, buzzer and other functions.
It is equipped with abundant buttons and an onboard 2000 mAh lithium battery.
Description
| Parameters | Description |
|---|---|
| Enclosure Material | PLA(3D-printed) |
| Battery: | 104040 2000mAh Li-ion |
| GNSS Module | Quectel L76K (L1) |
| Display | 1.08 inch TFT |
| Antenna | Specification |

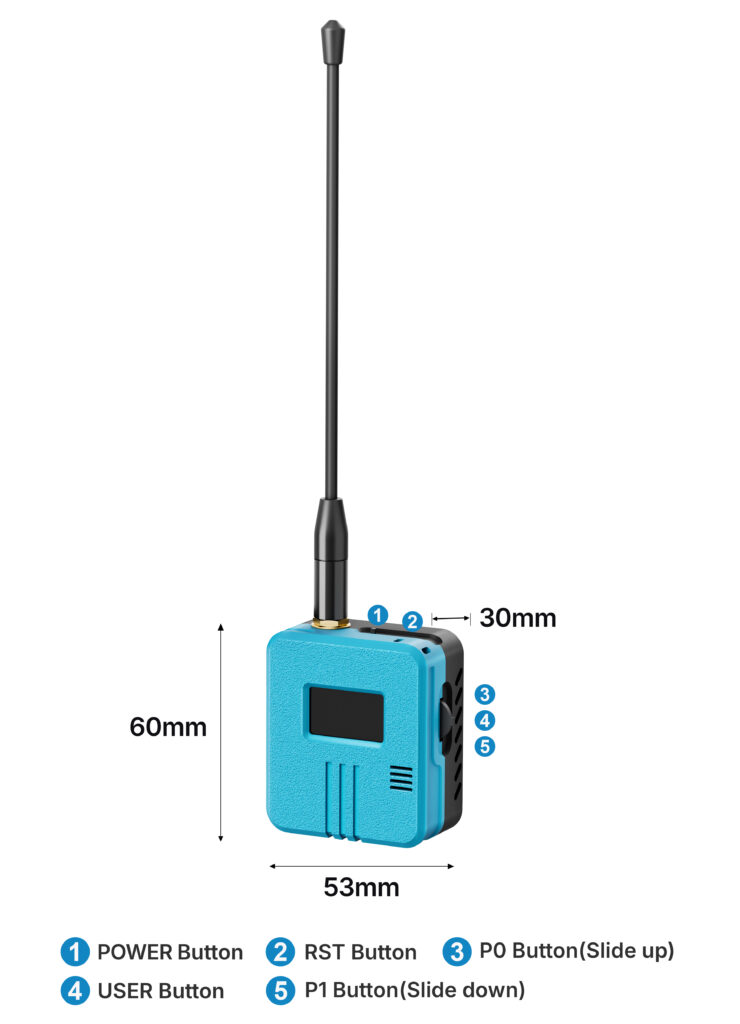

| Dimensions | 60×53×30mm |
| Antenna | Whip, SMA female |
| Compatible MCU | RC32, RC52 |
FAQ
- Please note that the device must be placed outdoors in an open area. A position near a window is not sufficient.
- Please allow sufficient time for acquisition. The first GNSS fix may take longer in some regions.
- Check your software settings to confirm the function is enabled.
- If your main board is RC32, enter bootloader mode with the steps below:Hold down the USER button, press the R button once, then release the USER button. After flashing, press the R button to reboot the device.
- If your device is RC52, double-press the R button to enter DFU mode. Simply drag and drop the firmware file to the pop-up drive
Docs & Resource
- [Attachments] — Module Datasheet
- [Attachments] — Module chematic_Diagram
- [Attachments] — Base Board chematic_Diagram
- [Documents] — User Manual Document
- [Attachments] — RC32 Firmware
- [Attachments] — RC52 Firmware
Packing List

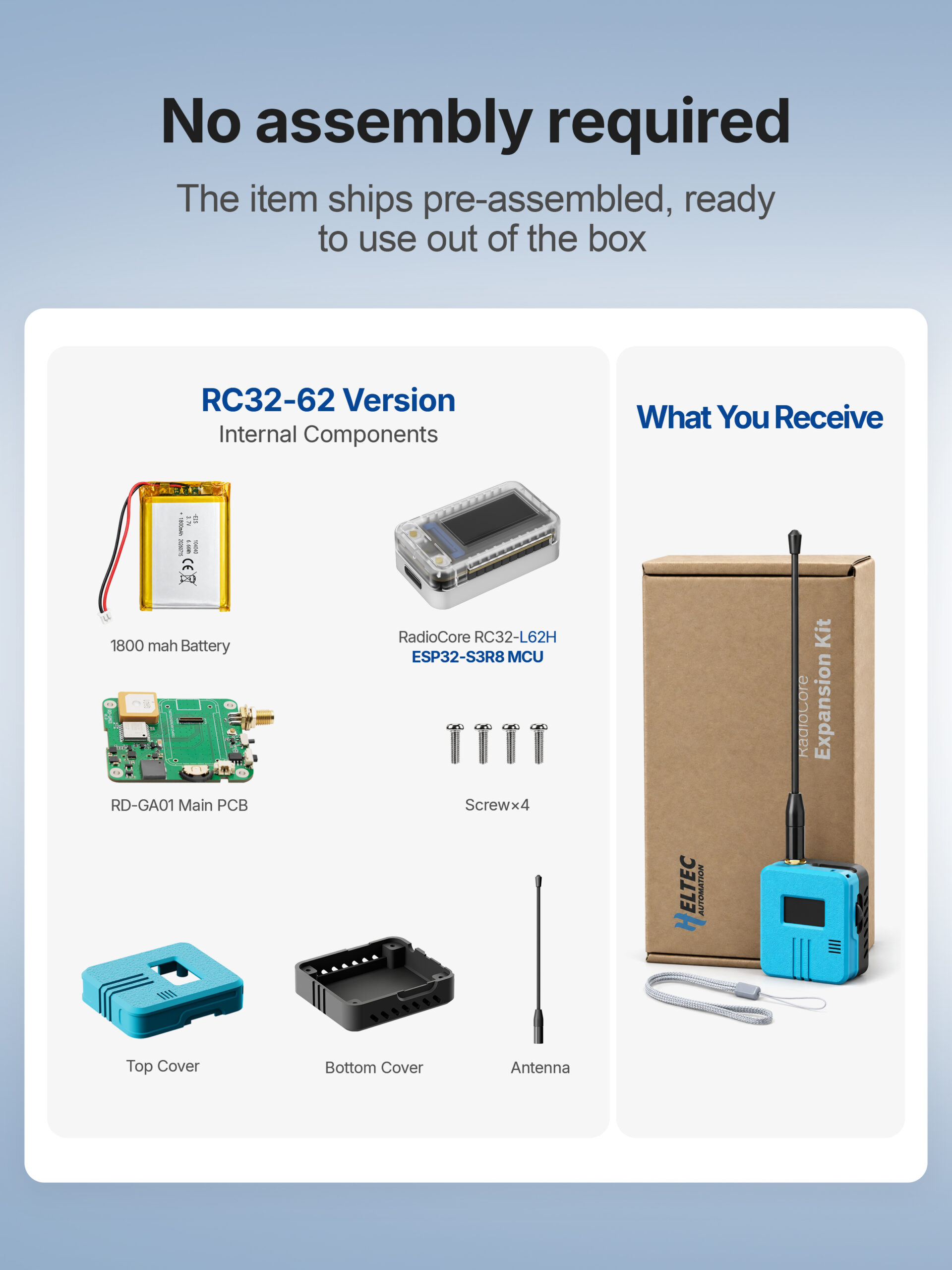

The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| RadioCore | x1 |
| LoRa Antenna | x1 |
| Battery | x1 |
| RD-GA01 Base Board | x1 |
| TFT Display | x1 |
Characteristics
| Weight | 55 g |
|---|---|
| Dimensions | 7.5 × 7.5 × 2.6 cm |
| RadioCore | RC32-62, RC52-62 |
| LoRa Band | 433MHz, 863~870MHz, 902~928MHz |
| TX Power | 21±1 dBm, 28±1 dBm |
| 3D Printing Process | Conventional FDM, Sintering |
No Reviews
RD-GA01, RadioCore , 9-axis IMU, GNSS, LoRa Mesh Node
What's this?
RD-GA01 is an expansion board for the RadioCore series, integrating LoRa, 9-axis IMU, GNSS and other functions.
Price range: $36.90 through $44.90
