LoRa Enable: ESP32+LoRa Series
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
Based on the ESP32+SX1262 series of chips, support LoRa/WiFi/BLE three communication modes. ESP32 is a powerfull SoC with 240MHz Tensilica LX6 dual-core & 1 ULP core, 600 DMIPS, 520KB SRAM. We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably.
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
Branches
ESP32 Series has three branches
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
Modul
- Arduino-Compatible;
- 1.27 stamp edge design;
- Support LoRa point-to-point and LoRaWan protocols;
- Can be directly integrated into the application circuit, can work as a MCU master unit or LoRa transceiver.

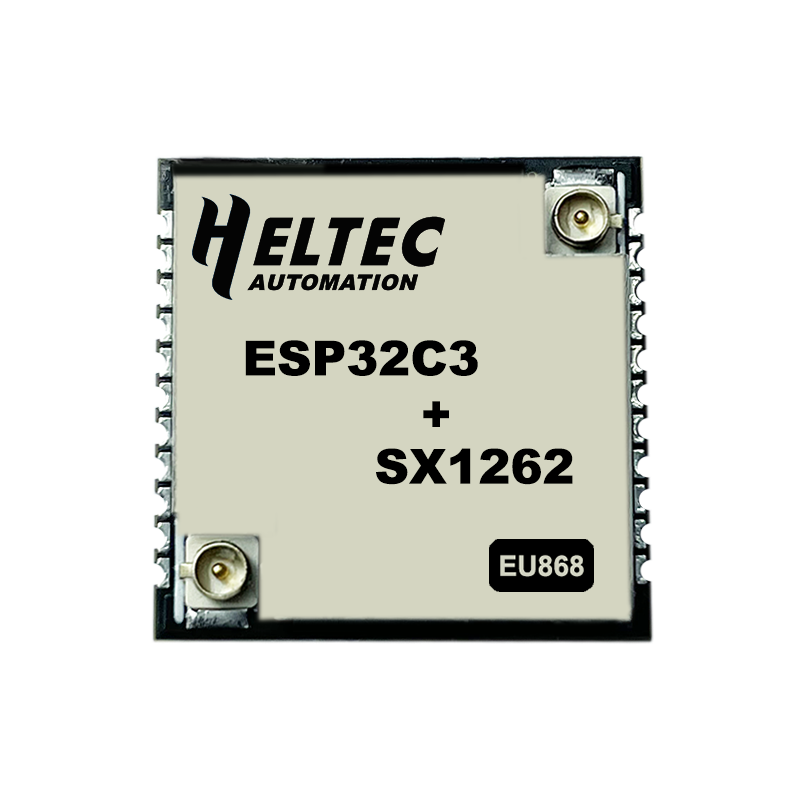

HT-CT62

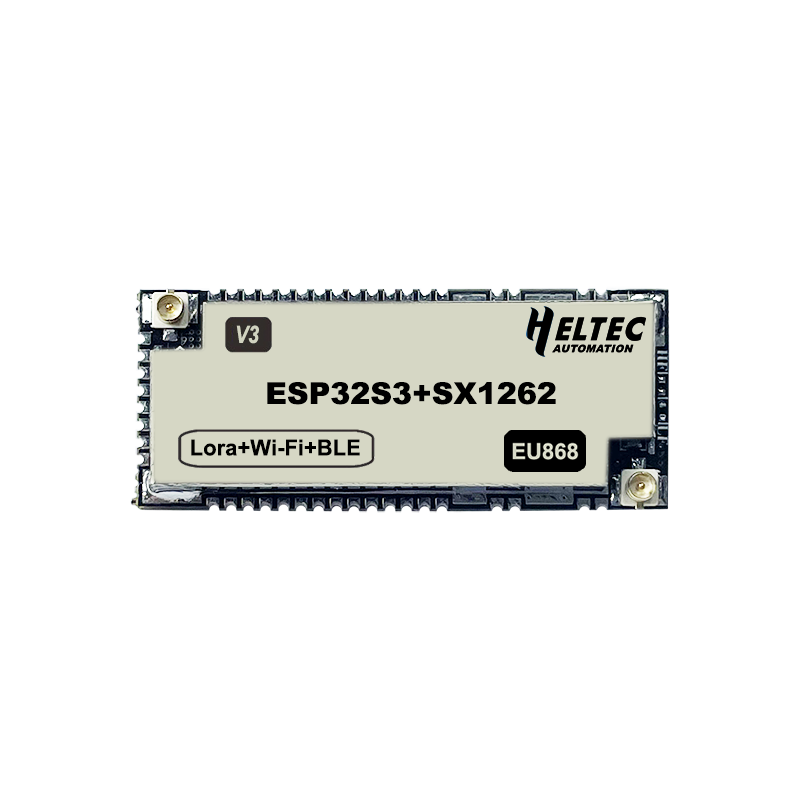

$6.90Wireless Shell(V3)

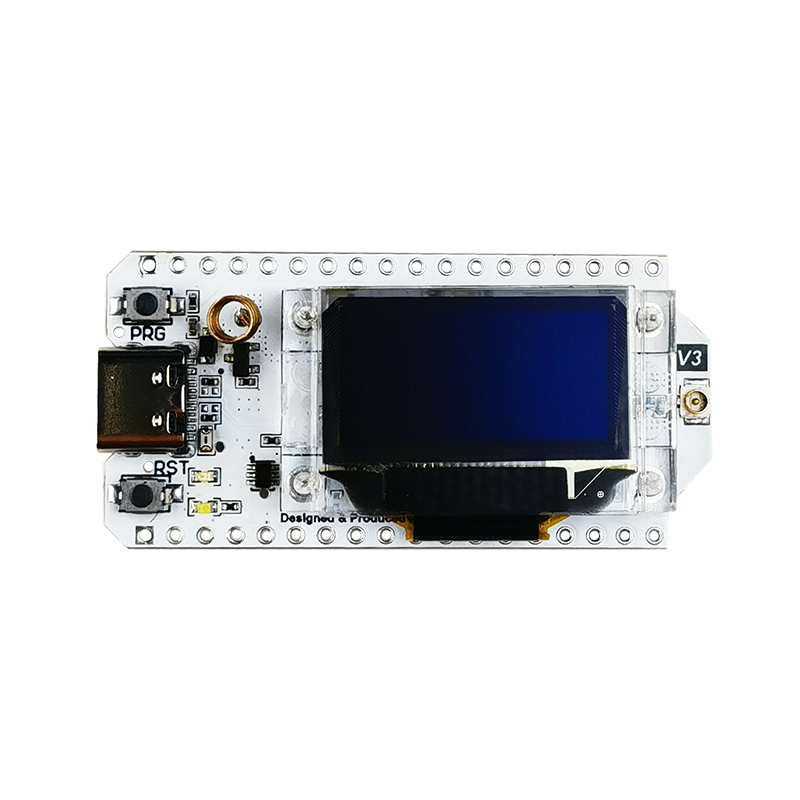

$14.90WiFi LoRa 32(V3)

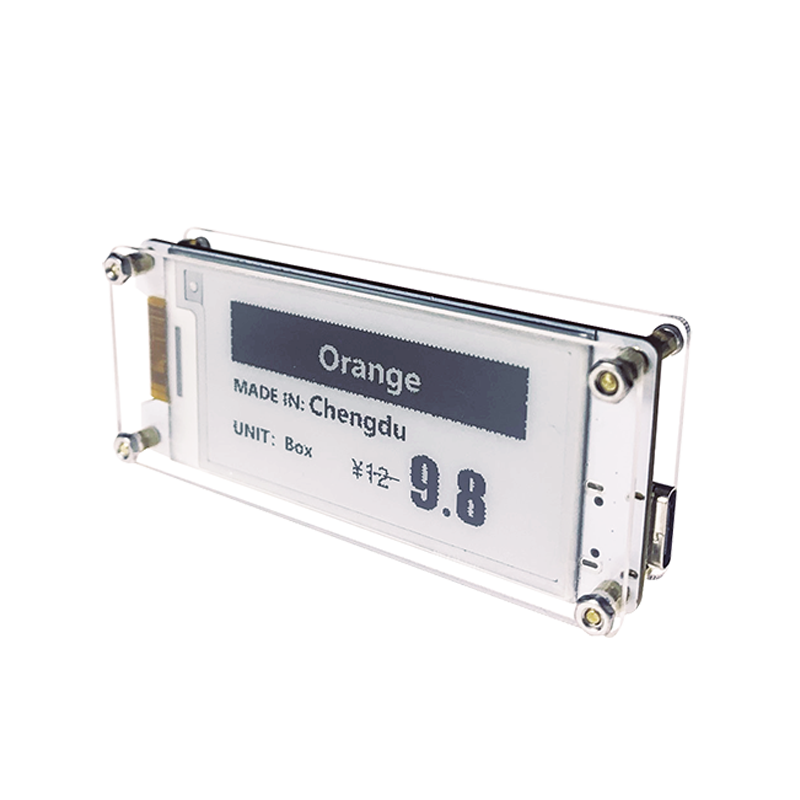

$17.90 – $19.90Wireless Paper

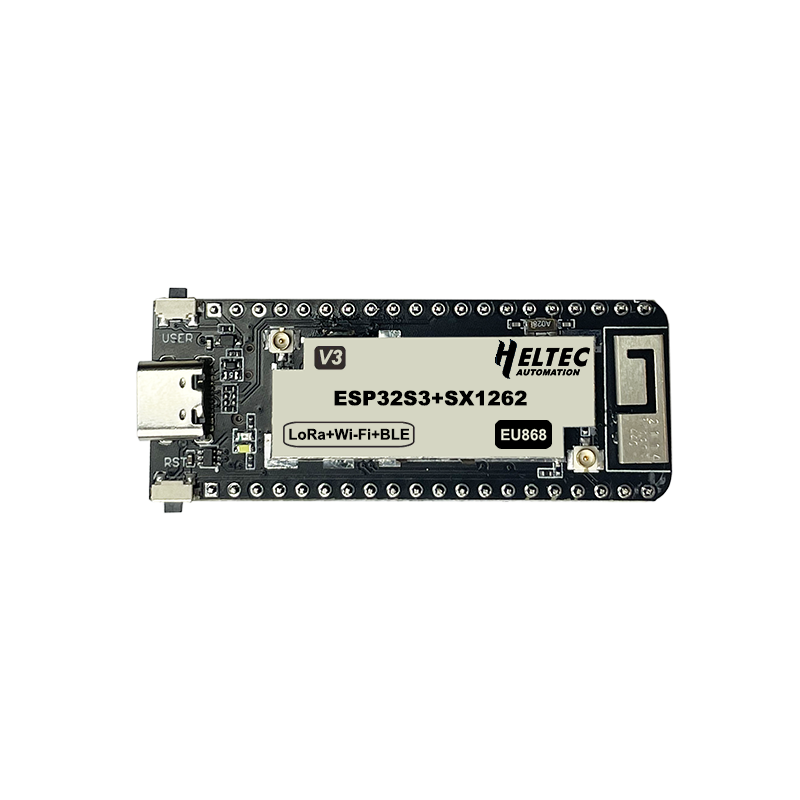

$15.90Wireless Stick Lite(V3)

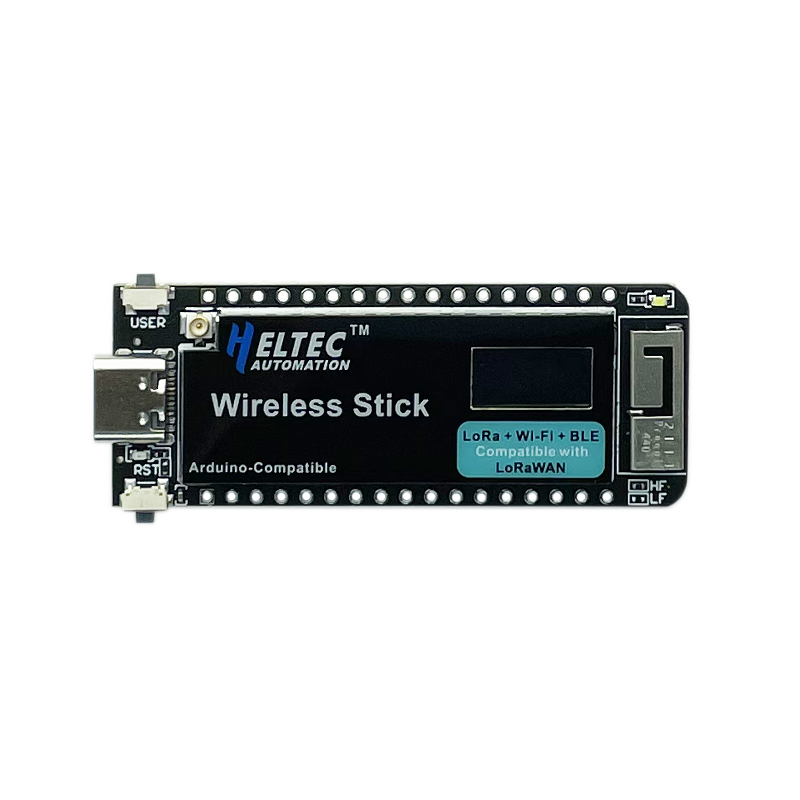

$14.90Wireless Stick(V3)

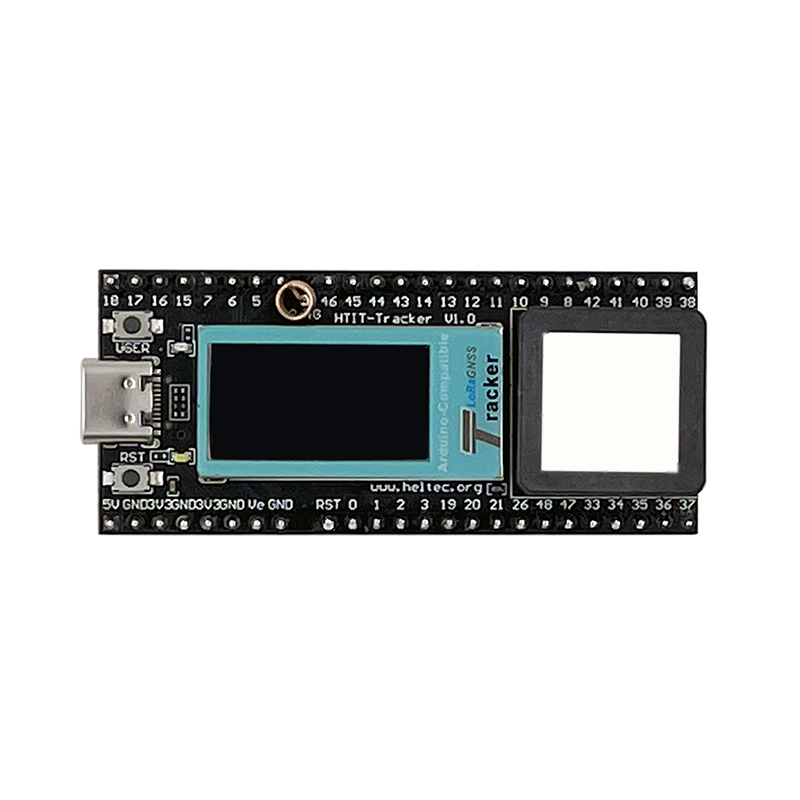

$17.90Wireless Tracker
$22.90![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
DEV-Board
- Arduino-Compatible;
- Support LoRa/WiFi/BLE, sub-models support GNSS;
- Very friendly for developers, only need a micro USB connct to a computer, users can begin LoRa IoT project develop;
- Full power management system;
- Easy to verify communication solutions.
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
- Arduino-Compatible;
- SMA socket for LoRa, WiFi/BlueTooth antenna;
- 8M Byte SDRAM and 8M Byte FLASH, these features will allow WiFi and BlueTooth to work at the same time;
- Already highly integrated, with complete enclosure and protection measures that can be deployed directly into real-world applications.
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
Key Features
Ultra Low Power Consumption
Sleep current 10~15uA, If communicate with a LoRa Gateway through the LoRaWAN protocol, with a 1200mAh lithium battery, Data can be sent up to 80,000 times.
Multi Wireless Communication
Multi wireless communication technical on board, include Wi-Fi, BlueTooh/BLE, LoRa, and the sub-model Wireless Tracker supports GNSS.
Perfect Arduino-Compatible
Arduino is well known and simple enough, makes the IoT application development more easy;Developlers only need call the APIs, such as the familiar.
Powerful Computing Skills
ESP32 is a powerfull SoC with 240MHz Tensilica LX6 dual-core & 1 ULP core, 600 DMIPS, 520KB SRAM.
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
Development Environment Installation
![ESP32install1](https://heltec.org/wp-content/uploads/2023/11/ESP32install1-1.png)
![ESP32install2](https://heltec.org/wp-content/uploads/2023/11/ESP32install2-1.png)
![ESP32install1](https://heltec.org/wp-content/uploads/2023/11/ESP32install1-1-150x150.png)
![ESP32install2](https://heltec.org/wp-content/uploads/2023/11/ESP32install2-1-150x150.png)
Heltec provides you with a variety of models of sub-equipment and a rich selection of accessories, for different needs, give full play to the various advantages of ESP32+LoRa. In addition to providing the development environment and sample code, we also set up a free iot platform and LoRaWAM server for testing.
![](https://heltec.org/wp-content/uploads/2023/10/red-line.png)
BUILD THE SYSTEM
You can find suitable devices from the following series and easily build an application system that suits your application.
